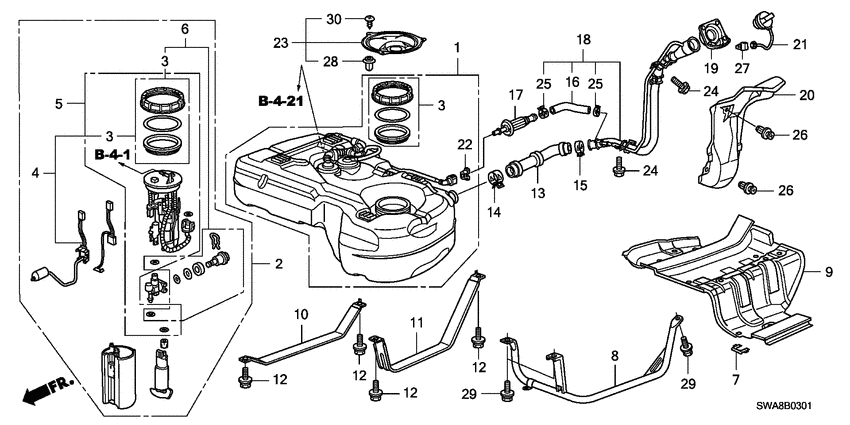

Fuel tank (2) Diagram Honda CR-V
- Year
- 2010
- Model code
- CR-V
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 5
- grade
- 2WD
- area code
- KD
- left-hand drive
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17044-SWA-A01
Tank comp.
|
17044-SWA-A01 |
— | ||
|
2
|
2
17045-SWA-A01 Module assy.FUEL PUMP |
17045-SWA-A01 |
US $399.36 |
||
|
3
|
3
17046-SWA-A00 Nut & packing setFUEL LOCK |
17046-SWA-A00 |
US $29.44 |
||
|
4
|
4
17047-SWA-A00 Meter comp |
17047-SWA-A00 |
US $81.92 |
||
|
5
|
5
17048-SWA-A00
Strainer set
|
17048-SWA-A00 |
— | ||
|
6
|
6
17052-SWA-A00 Regulator assyPRESSURE |
17052-SWA-A00 |
US $77.44 |
||
|
7
|
7
17513-S0E-003 Circlip |
17513-S0E-003 |
from US $3.03 |
||
|
8
|
8
17518-SWA-000 Pipe, FUEL TANK GUARD |
17518-SWA-000 |
US $48.38 |
||
|
9
|
9
17519-SWA-000 Protector compFUEL TANK |
17519-SWA-000 |
US $123.76 |
||
|
10
|
10
17521-SWA-000 BandR. FUEL TANK MOUNTING |
17521-SWA-000 |
US $30.74 |
||
|
11
|
11
17522-SWA-000 BandL. FUEL TANK MOUNTING |
17522-SWA-000 |
US $22.91 |
||
|
12
|
12
17525-SM4-000 Bolt-washer10X35 |
17525-SM4-000 |
from US $1.78 |
||
|
13
|
13
17651-SWA-A01
Tube comp
|
17651-SWA-A01 |
— | ||
|
14
|
14
17652-SDA-A31 ClipFILLER TUBE |
17652-SDA-A31 |
US $2.87 |
||
|
15
|
15
17652-SDA-003
Clip
|
17652-SDA-003 |
— | ||
| replacement | |||||
|
15
|
15
17652-TR0-003 Clip |
17652-TR0-003 |
US $3.67 |
||
|
16
|
16
17653-SWA-A00
Tube
|
17653-SWA-A00 |
— | ||
|
17
|
17
17656-S9A-A01 Pipe assy.BREATHER JOINT |
17656-S9A-A01 |
US $28.42 |
||
|
18
|
18
17660-SWA-A01 Pipe compFUEL FILLER |
17660-SWA-A01 |
US $148.48 |
||
|
19
|
19
17662-S04-003 PackingFUEL FILLER (WITH CLIP) |
17662-S04-003 |
US $9.77 |
||
|
20
|
20
17668-SWA-J00 CoverFUEL FILLER PIPE |
17668-SWA-J00 |
US $20.10 |
||
|
21
|
21
17670-SJA-A02 Cap comp.FUEL FILLER |
17670-SJA-A02 |
US $41.86 |
||
|
22
|
22
17711-S0X-003 RetainerORANGE) (TOKAI |
17711-S0X-003 |
from US $3.58 |
||
|
23
|
23
74660-S1C-E00 Cap assy.FLOOR MAINTENANCE HOLE |
74660-S1C-E00 |
from US $10.74 |
||
|
24
|
24
90150-S04-003 BoltEARTH, 6X16 |
90150-S04-003 |
US $1.88 |
||
|
25
|
25
90700-SDA-003 ClampFUEL TUBE(D17.0) |
90700-SDA-003 |
US $2.59 |
||
|
26
|
26
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $2.44 |
||
|
27
|
27
91594-SNA-A01 ClipFILLER CAP |
91594-SNA-A01 |
US $2.31 |
||
|
28
|
28
91601-SH3-013 GrommetSCREW, 5MM (BLACK) |
91601-SH3-013 |
from US $1.55 |
||
|
29
|
29
93407-080-200-4 Bolt-washer8X20 |
93407-080-200-4 |
from US $0.74 |
||
|
30
|
30
93901-25220 ScrewTAPPING, 5X12 |
93901-25220 |
from US $0.38 |
||
