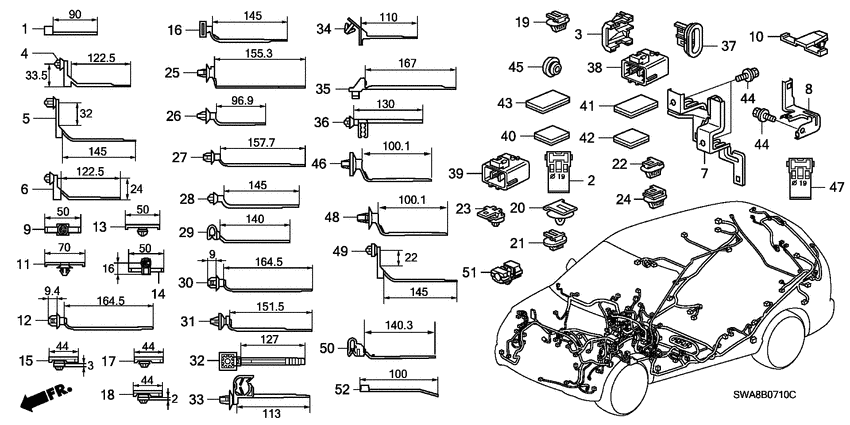

Harness band/bracket (LH) Diagram Honda CR-V
- Year
- 2010
- Model code
- CR-V
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 5
- grade
- 2WD
- area code
- KD
- left-hand drive
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
32128-RTA-003 CoverENGINE CONTROL MODULE COUPLER (A,B) |
32128-RTA-003 |
US $2.87 |
||
|
5
|
5
32133-SLA-003 BandHARNESS OFFSET(30) (DARK GRAY)(145MM) |
32133-SLA-003 |
from US $0.46 |
||
|
6
|
6
32134-SM4-003 BandHARNESS OFFSET (10) (BROWN) (122.5MM) |
32134-SM4-003 |
from US $3.03 |
||
|
7
|
7
32202-SWA-A00 BracketCABIN WIRE HARNESS (ENGINE ROOM HARNESS) |
32202-SWA-A00 |
US $6.44 |
||
|
8
|
8
38253-SWA-000 BracketENGINE ROOM WIRE HARNESS |
38253-SWA-000 |
US $2.10 |
||
|
9
|
9
90627-SA5-003 ClipWIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) |
90627-SA5-003 |
from US $1.82 |
||
|
10
|
10
91476-SD4-003 ClipOFFSET (21) (BROWN) (60MM) |
91476-SD4-003 |
US $1.89 |
||
|
11
|
11
91507-SAA-003 ClipWIRE HARNESS(NATURAL) (70MM) |
91507-SAA-003 |
US $2.52 |
||
|
12
|
12
91507-SNA-003 ClipHARNESS BAND(BROWN) (164.5MM) |
91507-SNA-003 |
from US $0.90 |
||
|
13
|
13
91507-693-003 ClipWIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
91507-693-003 |
from US $1.89 |
||
|
14
|
14
91510-SA5-003 ClipOFFSET(10)(BROWN)(50MM) |
91510-SA5-003 |
US $2.38 |
||
|
15
|
15
91531-SCC-901 ClipWIRE HARNESS (SEAL) (NATURAL) (44MM) |
91531-SCC-901 |
US $1.89 |
||
|
16
|
16
91531-SDA-003 ClipHARNESS BAND (NATURAL) (145MM) |
91531-SDA-003 |
US $1.89 |
||
|
17
|
17
91531-S04-003 ClipWIRE HARNESS(NATURAL) (44MM) |
91531-S04-003 |
US $1.33 |
||
|
18
|
18
91531-S84-003 ClipWIRE HARNESS(NATURAL) (44MM)(WITH SEAL) |
91531-S84-003 |
US $2.17 |
||
|
19
|
19
91533-STK-003 ClipCOUPLER(NATURAL) |
91533-STK-003 |
from US $3.08 |
||
|
20
|
20
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
21
|
21
91534-STK-003 ClipCOUPLER(NATURAL) (WITH SEAL) |
91534-STK-003 |
US $2.31 |
||
|
22
|
22
91534-SWA-003 ClipCOUPLER(DARK GRAY) |
91534-SWA-003 |
from US $4.14 |
||
|
23
|
23
91535-STK-003 ClipCOUPLER (DARK BLUE) |
91535-STK-003 |
from US $2.73 |
||
|
24
|
24
91536-STK-003 ClipRELAY HOLDER(NATURAL) |
91536-STK-003 |
from US $1.01 |
||
|
25
|
25
91540-STK-003 ClipHARNESS BAND (BLACK) (155.3MM) |
91540-STK-003 |
from US $3.11 |
||
|
27
|
27
91540-S7S-003 ClipHARNESS BAND(BLACK) (157.7MM) |
91540-S7S-003 |
from US $2.72 |
||
|
30
|
30
91542-SNA-003 ClipHARNESS BAND(DARK BLUE) (164.5MM) |
91542-SNA-003 |
from US $0.90 |
||
|
31
|
31
91545-S30-003 ClipHARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) |
91545-S30-003 |
US $2.31 |
||
|
32
|
32
91548-SV4-003 ClipBAND (6MM BOSS)(NATURAL) (127MM) |
91548-SV4-003 |
US $2.73 |
||
|
33
|
33
91549-STK-003 HolderHARNESS (NATURAL) (113MM) |
91549-STK-003 |
US $4.20 |
||
|
35
|
35
91559-S47-003 ClipHARNESS BAND(NATURAL) (167MM) |
91559-S47-003 |
US $2.03 |
||
|
36
|
36
91571-S10-003 ClipWIRE HARNESS (NATURAL) (130MM) |
91571-S10-003 |
US $1.89 |
||
|
37
|
37
91622-SWA-300 GrommetRING |
91622-SWA-300 |
US $5.18 |
||
|
38
|
38
91723-SNA-003 CouplerWATER PROOF (23P 040 J/C) (BLACK) |
91723-SNA-003 |
US $7.28 |
||
|
41
|
41
91902-S2X-003 PlasterWIRE HARNESS(50X100) |
91902-S2X-003 |
US $1.61 |
||
|
42
|
42
91902-S3N-003 PlasterWIRE HARNESS (50X50) |
91902-S3N-003 |
US $1.19 |
||
|
44
|
44
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
45
|
45
95551-25000 PlugBLIND, 25MM |
95551-25000 |
US $2.07 |
||
|
46
|
46
91545-TA0-003 ClipHARNESS BAND(NATURAL) (100.1MM)(WITH SEAL) |
91545-TA0-003 |
US $2.73 |
||
|
47
|
47
32119-R40-003 HolderCORRUGATED (BLACK) (19MM) |
32119-R40-003 |
US $1.61 |
||
|
48
|
48
91540-TA0-003 ClipHARNESS BAND(NATURAL) (100.1MM) |
91540-TA0-003 |
from US $0.46 |
||
|
49
|
49
91542-TF0-003 BandHARNESS OFFSET(20) (DARK BLUE)(145MM) |
91542-TF0-003 |
US $2.31 |
||
|
50
|
50
91549-TA0-003 ClipHARNESS BAND(BLACK) (140.3MM) |
91549-TA0-003 |
from US $1.46 |
||
|
51
|
51
91550-SWA-003 ClipWIRE HARNESS (CORRUGATED 13MM-19MM) |
91550-SWA-003 |
US $4.62 |
||
|
52
|
52
32113-TA0-003 BandCABLE(BLACK)(100MM) |
32113-TA0-003 |
US $2.24 |
