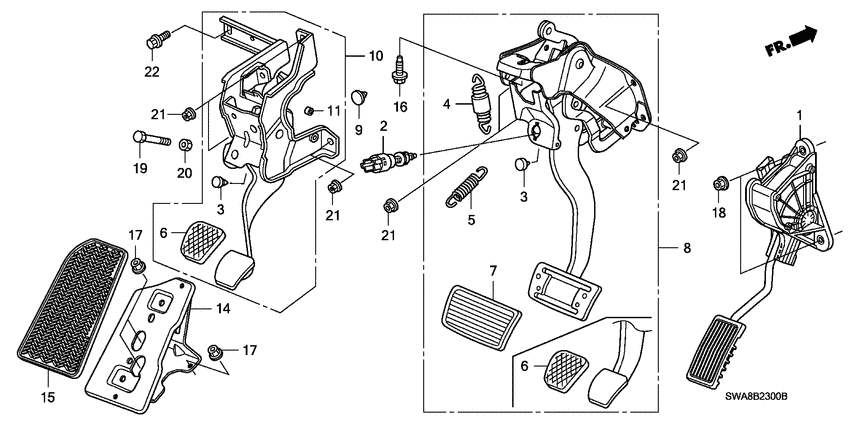

Pedal (LH) Diagram Honda CR-V
- Year
- 2010
- Model code
- CR-V
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 5
- grade
- 2WD
- area code
- KD
- left-hand drive
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-STK-A81 Pedal assyACCELERATOR |
17800-STK-A81 |
US $225.28 |
||
|
2
|
2
36750-SMA-003
Switch assy
|
36750-SMA-003 |
— | ||
|
2
|
2
36750-SDA-A02
Switch assy
|
36750-SDA-A02 |
— | ||
|
3
|
3
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.59 |
||
|
4
|
4
46530-SFE-981
Spring assy
|
46530-SFE-981 |
— | ||
|
7
|
7
46545-S84-A81 CoverPEDAL |
46545-S84-A81 |
from US $5.21 |
||
|
8
|
8
46600-STK-A81
Pedal assy
|
46600-STK-A81 |
— | ||
|
14
|
14
46991-SWA-A80 BracketFOOTREST |
46991-SWA-A80 |
US $21.63 |
||
|
15
|
15
46992-STK-A81 PlateFOOTREST BRACKET |
46992-STK-A81 |
US $7.25 |
||
|
16
|
16
90104-SFE-003 BoltFLANGE, 8X23 |
90104-SFE-003 |
US $1.61 |
||
|
17
|
17
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
|
18
|
18
90361-S3C-003 NutPAINT CUTTING, 8MM |
90361-S3C-003 |
US $1.19 |
||
|
21
|
21
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
22
|
22
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
