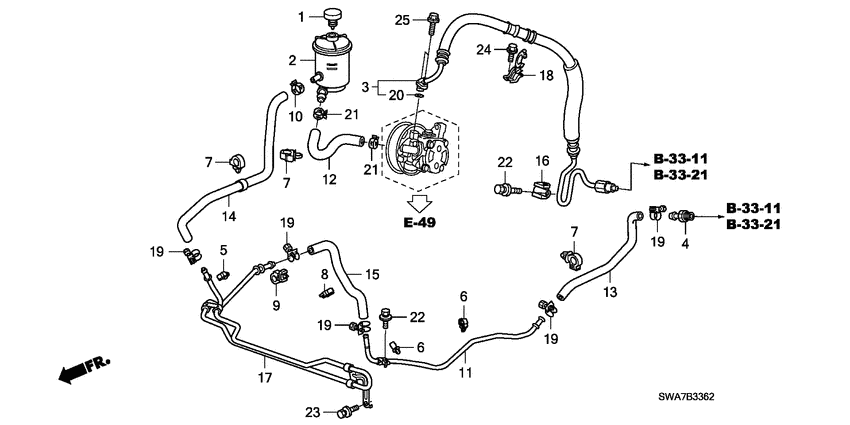

P.s. lines (HPS; DIESEL; RH) Diagram Honda CR-V
- Year
- 2007
- Model code
- CR-V I-CTDI
- Sales region
- General
- Engine
- N22A
- transmission
- 6MT
- Number of doors
- 5
- grade
- 2.2 SE
- abs
- +
- area code
- KE
- right-hand drive
- +
- side curtain srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53697-SB3-952 CapOIL TANK |
53697-SB3-952 |
from US $7.55 |
||
|
2
|
2
53701-SWY-G01
Tank comp.
|
53701-SWY-G01 |
— | ||
|
3
|
3
53713-SWY-E01 Hose comp.POWER STEERING FEED |
53713-SWY-E01 |
US $329.87 |
||
|
4
|
4
53720-SP0-010
Pipe comp
|
53720-SP0-010 |
— | ||
|
5
|
5
53728-SDB-A01 ClipRETURN PIPE |
53728-SDB-A01 |
from US $1.75 |
||
|
6
|
6
53728-S0X-A01 ClipRETURN PIPE |
53728-S0X-A01 |
US $6.19 |
||
|
7
|
7
53729-S0X-003 ClipRETURN HOSE (NATURAL) |
53729-S0X-003 |
from US $3.78 |
||
|
8
|
8
53729-S87-A01 ClipRETURN HOSE(BLACK) |
53729-S87-A01 |
US $2.59 |
||
|
9
|
9
53729-S87-E01 ClipRETURN HOSE |
53729-S87-E01 |
US $3.01 |
||
|
10
|
10
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.74 |
||
|
11
|
11
53730-SWA-000 Pipe compPOWER STEERING |
53730-SWA-000 |
US $33.36 |
||
|
12
|
12
53731-SWY-G00
Tube
|
53731-SWY-G00 |
— | ||
|
13
|
13
53732-SWA-003 HosePOWER STEERING RETURN |
53732-SWA-003 |
US $24.34 |
||
|
14
|
14
53733-SWY-G02 HosePOWER STEERING OIL TANK |
53733-SWY-G02 |
US $28.54 |
||
|
15
|
15
53735-SWY-G01 HosePOWER STEERING OIL COOLER |
53735-SWY-G01 |
US $11.90 |
||
|
16
|
16
53736-STK-A00 Holder bPOWER STEERING PIPE |
53736-STK-A00 |
US $4.13 |
||
|
17
|
17
53765-SWY-G00
Cooler comp
|
53765-SWY-G00 |
— | ||
|
18
|
18
53775-SWY-G00 ClampFEED HOSE |
53775-SWY-G00 |
US $7.14 |
||
|
19
|
19
90635-SM4-A01
Clip
|
90635-SM4-A01 |
— | ||
| replacement | |||||
|
19
|
19
90635-SM4-A02 ClipOIL HOSE (MEIJI) |
90635-SM4-A02 |
from US $4.12 |
||
|
20
|
20
91370-SV4-000 O-ring14.4X1.9 |
91370-SV4-000 |
from US $3.15 |
||
|
21
|
21
91405-SS0-003 ClampTUBE (D21) |
91405-SS0-003 |
from US $1.96 |
||
|
22
|
22
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
23
|
23
93402-060-160-8 Bolt-washer6X16 |
93402-060-160-8 |
from US $0.52 |
||
|
24
|
24
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
25
|
25
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
