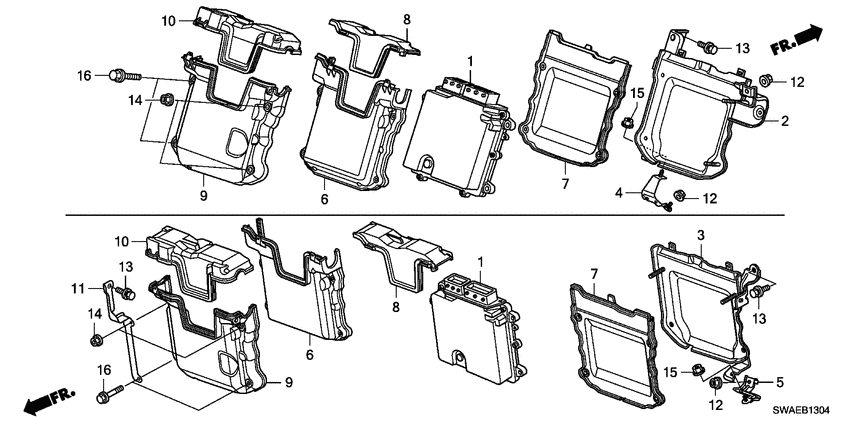

Control unit (ENGINE ROOM; DIESEL; 3) Diagram Honda CR-V
- Year
- 2010
- Model code
- CR-V I-DTEC
- Sales region
- General
- Engine
- N22B
- transmission
- 5AT
- Number of doors
- 5
- grade
- 2.2 EX
- abs
- +
- area code
- KE
- right-hand drive
- +
- navigation
- +
- side srs
- +
- side curtain srs
- +
- glass roof
- +
- dpf
- +
- corner sensor
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37820-RFW-G52
Control module
|
37820-RFW-G52 |
— | ||
|
2
|
2
37821-RFW-E00 Bracket comp.ENGINE CONTROL MODULE |
37821-RFW-E00 |
US $112 |
||
|
4
|
4
37822-RFW-E00
Stay comp. a
|
37822-RFW-E00 |
— | ||
|
6
|
6
37823-RFW-G00 CoverENGINE CONTROL MODULE (A) |
37823-RFW-G00 |
US $22.66 |
||
|
7
|
7
37824-RFW-G00 CoverENGINE CONTROL MODULE (B) |
37824-RFW-G00 |
US $22.66 |
||
|
8
|
8
37825-RFW-G00 CoverENGINE CONTROL MODULE (C) |
37825-RFW-G00 |
US $12.60 |
||
|
9
|
9
37827-RFW-G00 CoverENGINE CONTROL MODULE (D) |
37827-RFW-G00 |
US $22.66 |
||
|
10
|
10
37828-RFW-G00 CoverENGINE CONTROL MODULE (E) |
37828-RFW-G00 |
US $12.60 |
||
|
12
|
12
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
13
|
13
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
13
|
13
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
14
|
14
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
15
|
15
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
|
16
|
16
95801-060-400-8 BoltFLANGE, 6X40 |
95801-060-400-8 |
from US $0.65 |
||
