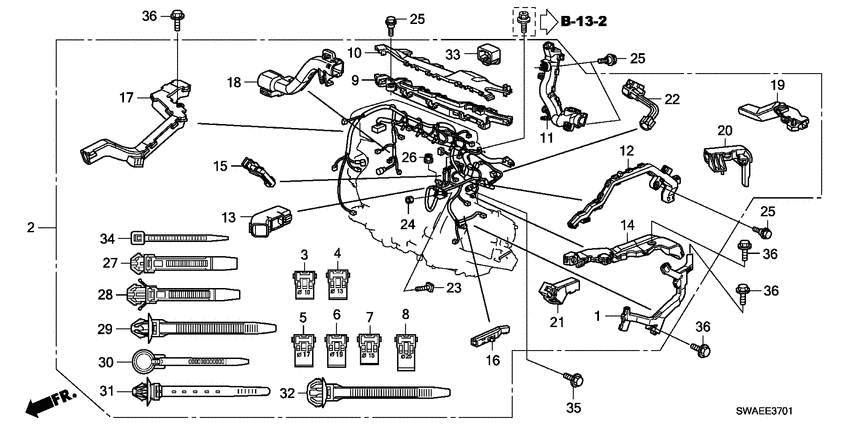

Engine wire harness (DIESEL; '10) Diagram Honda CR-V
- Year
- 2010
- Model code
- CR-V I-DTEC
- Sales region
- General
- Engine
- N22B
- transmission
- 5AT
- Number of doors
- 5
- grade
- 2.2 EX
- abs
- +
- area code
- KE
- right-hand drive
- +
- navigation
- +
- side srs
- +
- side curtain srs
- +
- glass roof
- +
- dpf
- +
- corner sensor
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28157-RL0-000 Holder comp. bMISSION HARNESS |
28157-RL0-000 |
US $119.04 |
||
|
2
|
2
32110-RFW-E50
Harness
|
32110-RFW-E50 |
— | ||
|
3
|
3
32113-R60-003 HolderCORRUGATED(BLACK) (10MM) |
32113-R60-003 |
US $1.33 |
||
|
4
|
4
32116-RKG-003 HolderCORRUGATED (DARK GREEN) (13MM) |
32116-RKG-003 |
US $1.89 |
||
|
5
|
5
32116-R40-003 HolderCORRUGATED(DARK BROWN) (17MM) |
32116-R40-003 |
US $1.61 |
||
|
7
|
7
32119-R60-003 HolderCORRUGATED (BLACK) (15MM) |
32119-R60-003 |
US $1.33 |
||
|
8
|
8
32120-R70-A01 HolderCORRUGATED (BLACK) (25MM) |
32120-R70-A01 |
US $2.73 |
||
|
9
|
9
32126-RFW-G00 Holder aENGINE HARNESS LOWER |
32126-RFW-G00 |
US $16.77 |
||
|
10
|
10
32127-RFW-G00 Holder aENGINE HARNESS UPPER |
32127-RFW-G00 |
US $13.16 |
||
|
11
|
11
32128-RFW-G00 Holder bENGINE HARNESS |
32128-RFW-G00 |
US $22.91 |
||
|
12
|
12
32129-RFW-G00 Holder cENGINE HARNESS |
32129-RFW-G00 |
US $20.48 |
||
|
13
|
13
32131-RBD-E00 Holder fENGINE HARNESS |
32131-RBD-E00 |
US $6.16 |
||
|
14
|
14
32131-RFW-G50 Holder comp. eENGINE HARNESS |
32131-RFW-G50 |
US $30.08 |
||
|
15
|
15
32131-RL0-G00 Holder eENGINE HARNESS |
32131-RL0-G00 |
US $8.26 |
||
|
17
|
17
32132-RFW-G00 Holder comp. fENGINE HARNESS |
32132-RFW-G00 |
US $18.56 |
||
|
18
|
18
32133-RFW-G50 Holder gENGINE HARNESS |
32133-RFW-G50 |
US $8.26 |
||
|
19
|
19
32134-RFW-E00 Holder comp. hENGINE HARNESS |
32134-RFW-E00 |
US $32.51 |
||
|
20
|
20
32135-RFW-G00 Holder jENGINE HARNESS |
32135-RFW-G00 |
US $11.20 |
||
|
23
|
23
32601-SK7-900 BoltBATTERY TERMINAL |
32601-SK7-900 |
from US $2.81 |
||
|
24
|
24
32602-SK7-900 NutBATTERY TERMINAL |
32602-SK7-900 |
from US $2 |
||
|
25
|
25
90051-RGA-003 BoltSPECIAL, 6X20.8 |
90051-RGA-003 |
US $1.61 |
||
|
26
|
26
90337-SJ4-003 NutA.L.B. |
90337-SJ4-003 |
US $1.63 |
||
|
27
|
27
91506-RTA-003 Clip AHARNESS BAND (DARK VIOLET)(129.4MM) |
91506-RTA-003 |
US $3.26 |
||
|
28
|
28
91507-RTA-003 Clip bHARNESS BAND (DARK GREEN) (129.4MM) |
91507-RTA-003 |
from US $2.31 |
||
|
29
|
29
91507-SNA-003 ClipHARNESS BAND(BROWN) (164.5MM) |
91507-SNA-003 |
from US $0.90 |
||
|
30
|
30
91531-S5B-003 BandHARNESS (BLACK) (120MM) |
91531-S5B-003 |
US $3.58 |
||
|
31
|
31
91540-STK-003 ClipHARNESS BAND (BLACK) (155.3MM) |
91540-STK-003 |
from US $3.11 |
||
|
32
|
32
91542-SNA-003 ClipHARNESS BAND(DARK BLUE) (164.5MM) |
91542-SNA-003 |
from US $0.90 |
||
|
34
|
34
91556-PDF-E01 BandCLAMP(NATURAL)(143.2MM) |
91556-PDF-E01 |
US $1.61 |
||
|
35
|
35
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
36
|
36
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
