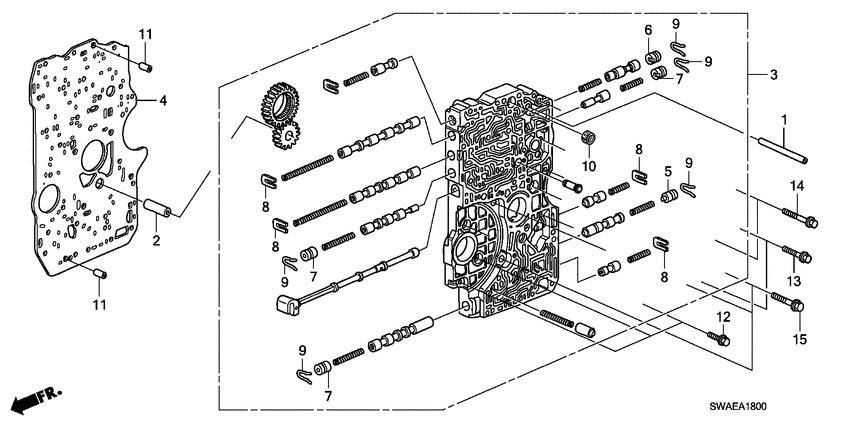

Main valve body (DIESEL) Diagram Honda CR-V
- Year
- 2010
- Model code
- CR-V I-DTEC
- Sales region
- General
- Engine
- N22B
- transmission
- 5AT
- Number of doors
- 5
- grade
- 2.2 EX
- abs
- +
- area code
- KE
- right-hand drive
- +
- navigation
- +
- side srs
- +
- side curtain srs
- +
- glass roof
- +
- dpf
- +
- corner sensor
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22748-PW4-000 Pipe8X62 |
22748-PW4-000 |
US $2.31 |
||
|
2
|
2
25145-PA9-010 ShaftOIL PUMP GEAR |
25145-PA9-010 |
US $11.05 |
||
|
3
|
3
27000-RYF-010 Body assyMAIN VALVE |
27000-RYF-010 |
US $446.72 |
||
|
4
|
4
27112-RJB-020 PlateMAIN SEPARATING |
27112-RJB-020 |
US $22.91 |
||
|
5
|
5
27122-P6H-A00 Cap12MM |
27122-P6H-A00 |
US $3.43 |
||
|
6
|
6
27122-P6H-000 Cap12MM |
27122-P6H-000 |
US $3.08 |
||
|
7
|
7
27152-PLY-000 Cap13MM |
27152-PLY-000 |
US $3.08 |
||
|
8
|
8
27263-PX3-000 SeatVALVE SPRING |
27263-PX3-000 |
from US $1.85 |
||
|
9
|
9
27524-P6H-000 ClipCAP |
27524-P6H-000 |
US $1.19 |
||
|
10
|
10
27750-PL5-J01 FilterSECONDARY BODY |
27750-PL5-J01 |
US $5.91 |
||
|
11
|
11
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
12
|
12
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
13
|
13
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
14
|
14
95701-060-400-8 BoltFLANGE, 6X40 |
95701-060-400-8 |
from US $0.59 |
||
|
15
|
15
95701-080-320-8 BoltFLANGE, 8X32 |
95701-080-320-8 |
from US $0.81 |
