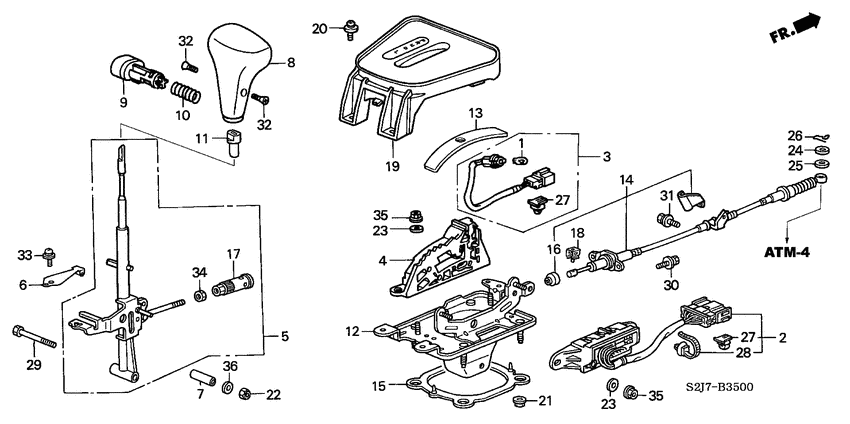

Select lever (LH) Diagram Honda HR-V
- Year
- 2003
- Model code
- HR-V
- Sales region
- General
- Engine
- D16W
- transmission
- CVT
- Number of doors
- 5
- grade
- HR-V TUR/ISR
- area code
- KG
- left-hand drive
- +
- immobilizer
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
2
|
2
35700-S04-901
Switch assy
|
35700-S04-901 |
— | ||
|
3
|
3
37700-S4N-G01 Lamp assy.INDICATOR |
37700-S4N-G01 |
US $10.36 |
||
|
4
|
4
54020-S04-952 Plate compPOSITION |
54020-S04-952 |
US $26.37 |
||
|
5
|
5
54100-S2H-A81 Lever compSELECT |
54100-S2H-A81 |
US $88.32 |
||
|
6
|
6
54110-S04-981
Spring comp
|
54110-S04-981 |
— | ||
|
7
|
7
54123-SL4-980 CollarSELECT LEVER |
54123-SL4-980 |
US $5.74 |
||
|
8
|
8
54131-S2H-G51 KnobSELECT LEVER |
54131-S2H-G51 |
US $48.77 |
||
|
9
|
9
54132-S2H-G81
Knob
|
54132-S2H-G81 |
— | ||
|
10
|
10
54133-SH9-980 SpringPUSH KNOB |
54133-SH9-980 |
US $2.65 |
||
|
11
|
11
54141-SV4-980 BushKNOB SETTING |
54141-SV4-980 |
from US $2.44 |
||
|
12
|
12
54200-S04-981 Bracket comp.SELECT LEVER |
54200-S04-981 |
US $28.29 |
||
|
13
|
13
54222-S04-981 CoverSELECT LEVER |
54222-S04-981 |
US $6.30 |
||
|
14
|
14
54315-S2H-951
Wire
|
54315-S2H-951 |
— | ||
|
15
|
15
54318-S04-981 SealBRACKET |
54318-S04-981 |
US $7 |
||
|
16
|
16
54341-S04-981 BootCONTROL WIRE |
54341-S04-981 |
US $1.96 |
||
|
17
|
17
54361-SV4-980 PipeCONTROL WIRE ADJUSTING |
54361-SV4-980 |
US $8.82 |
||
|
18
|
18
54363-689-981 PinCONTROL WIRE ADJUSTER |
54363-689-981 |
US $3.57 |
||
|
19
|
19
54710-S2H-G53 Escutcheon comp.CONSOLE |
54710-S2H-G53 |
US $46.08 |
||
|
20
|
20
90130-SV4-980 ScrewTAPPING, 5X11 |
90130-SV4-980 |
US $2.24 |
||
|
21
|
21
90301-SD5-000 NutFLANGE, 6MM |
90301-SD5-000 |
from US $1.82 |
||
|
22
|
22
90308-SA0-981 NutSELF-LOCK, 6MM |
90308-SA0-981 |
from US $1.82 |
||
|
23
|
23
90438-671-000 WasherSPECIAL, 6MM |
90438-671-000 |
US $7.38 |
||
|
24
|
24
90555-S2H-950
Washer a
|
90555-S2H-950 |
— | ||
|
25
|
25
90556-S50-950
Washer b
|
90556-S50-950 |
— | ||
|
26
|
26
90706-PS5-000 PinSNAP, 9MM |
90706-PS5-000 |
US $2.52 |
||
|
27
|
27
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
28
|
28
91558-ST5-003 ClipHARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
91558-ST5-003 |
from US $2.60 |
||
|
29
|
29
92201-06060-0H BoltHEX., 6X60 |
92201-06060-0H |
US $0.59 |
||
|
30
|
30
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
31
|
31
93402-060-160-8 Bolt-washer6X16 |
93402-060-160-8 |
from US $0.52 |
||
|
32
|
32
93700-050-080-G ScrewOVAL, 5X8 |
93700-050-080-G |
from US $0.37 |
||
|
33
|
33
93893-050-100-8 Screw-washer5X10 |
93893-050-100-8 |
from US $0.52 |
||
|
34
|
34
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
|
35
|
35
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
36
|
36
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
