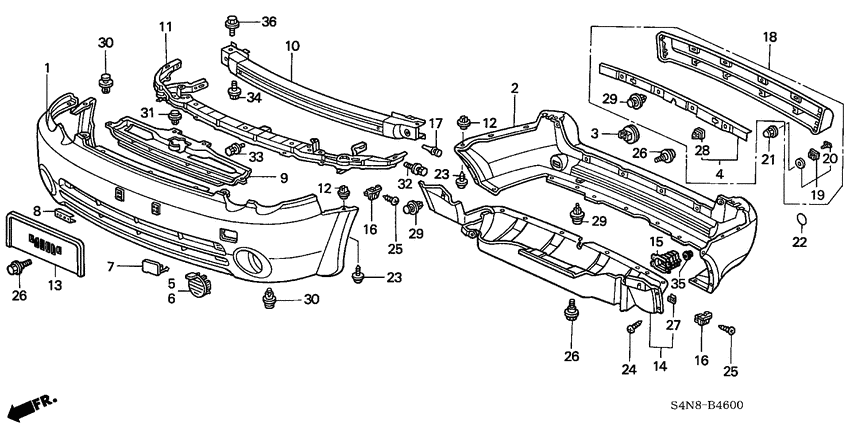

Bumpers Diagram Honda HR-V
- Year
- 2005
- Model code
- HR-V
- Sales region
- General
- Engine
- D16W
- transmission
- CVT
- Number of doors
- 5
- grade
- HYPER
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04711-S2H-J00ZZ FaceFR. BUMPER |
04711-S2H-J00ZZ |
US $505.60 |
||
|
2
|
2
04715-S2H-J00ZZ FaceRR. BUMPER |
04715-S2H-J00ZZ |
from US $271.51 |
||
|
3
|
3
33505-S2H-J01 Reflector assyRR. |
33505-S2H-J01 |
US $27.83 |
||
|
4
|
4
68114-S2H-000 BeamTAILGATE LOWER GARNISH |
68114-S2H-000 |
US $25.98 |
||
|
5
|
5
71102-S2H-J00 GarnishR. FR. FOG LIGHT HOLE |
71102-S2H-J00 |
US $11.34 |
||
|
6
|
6
71103-S2H-J00 GarnishL. FR. FOG LIGHT HOLE |
71103-S2H-J00 |
US $11.34 |
||
|
7
|
7
71104-S2H-J00ZU CoverFR. TOWING HOOK *NH674P* |
71104-S2H-J00ZU |
US $11.90 |
||
|
7
|
7
71104-S2H-J00ZX
Cover
|
71104-S2H-J00ZX |
— | ||
|
7
|
7
71104-S2H-J00ZP CoverFR. TOWING HOOK *G511M* |
71104-S2H-J00ZP |
US $11.90 |
||
|
7
|
7
71104-S2H-J00ZH
Cover
|
71104-S2H-J00ZH |
— | ||
|
7
|
7
71104-S2H-J00ZN
Cover
|
71104-S2H-J00ZN |
— | ||
|
7
|
7
71104-S2H-J00ZQ CoverFR. TOWING HOOK *YR528M* |
71104-S2H-J00ZQ |
US $11.90 |
||
|
7
|
7
71104-S2H-J00ZG
Cover
|
71104-S2H-J00ZG |
— | ||
|
8
|
8
71113-SH2-000 NutLICENSE PLATE |
71113-SH2-000 |
US $6.51 |
||
|
9
|
9
71120-S2H-J00
Grille
|
71120-S2H-J00 |
— | ||
|
10
|
10
71130-S2H-000ZZ Beam compFR. BUMPER |
71130-S2H-000ZZ |
US $157.44 |
||
|
11
|
11
71140-S2H-000ZZ Beam compFR. BUMPER UPPER |
71140-S2H-000ZZ |
US $62.21 |
||
|
12
|
12
71144-SR3-013 GrommetBUMPER SIDE |
71144-SR3-013 |
US $2.44 |
||
|
14
|
14
71520-S2H-J00 CoverRR. UNDER |
71520-S2H-J00 |
US $111.36 |
||
|
15
|
15
71550-S2H-G00ZZ Extension compRR. BUMPER |
71550-S2H-G00ZZ |
US $15.74 |
||
|
16
|
16
71598-S30-013 Spacer assy.RR. BUMPER SIDE |
71598-S30-013 |
US $2.57 |
||
|
17
|
17
74177-ST7-000 CushionBUMPER SIDE |
74177-ST7-000 |
US $3.99 |
||
|
18
|
18
74895-S2H-000YB Garnish assyTAILGATE LOWER *B520P* |
74895-S2H-000YB |
US $312.32 |
||
|
18
|
18
74895-S2H-000ZB Garnish assyTAILGATE LOWER *NH578* |
74895-S2H-000ZB |
US $312.32 |
||
|
18
|
18
74895-S2H-000YD Garnish assyTAILGATE LOWER *YR528M* |
74895-S2H-000YD |
US $312.32 |
||
|
18
|
18
74895-S2H-000ZT Garnish assyTAILGATE LOWER *NH623M* |
74895-S2H-000ZT |
US $331.52 |
||
|
18
|
18
74895-S2H-000YH Garnish assyTAILGATE LOWER *NH674P* |
74895-S2H-000YH |
US $312.32 |
||
|
18
|
18
74895-S2H-000YL Garnish assyTAILGATE LOWER *R525P* |
74895-S2H-000YL |
US $284.16 |
||
|
18
|
18
74895-S2H-000YC Garnish assyTAILGATE LOWER *G511M* |
74895-S2H-000YC |
US $284.16 |
||
|
19
|
19
74897-S2H-000 Bolt setRR. LICENSE |
74897-S2H-000 |
from US $3.99 |
||
|
20
|
20
75306-SF1-961
Bolt
|
75306-SF1-961 |
— | ||
|
21
|
21
75807-671-010 NutSIDE PROTECTOR (BLACK) |
75807-671-010 |
US $3.08 |
||
|
22
|
22
85268-SA0-000 ProtectionTAILGATE, 20MM (CIRCLE) |
85268-SA0-000 |
from US $1.63 |
||
|
23
|
23
90109-SS0-000 ScrewTAPPING, 5X20 |
90109-SS0-000 |
US $2.07 |
||
|
24
|
24
90126-SA7-000
Screw-washer
|
90126-SA7-000 |
— | ||
| replacement | |||||
|
24
|
24
90114-SZ3-000 Screw-washer5X20 |
90114-SZ3-000 |
US $2.52 |
||
|
25
|
25
90126-SR4-000 Screw-washer5X16 |
90126-SR4-000 |
from US $2.72 |
||
|
26
|
26
90149-SA0-003 BoltBUMPER |
90149-SA0-003 |
from US $2 |
||
|
27
|
27
90331-SD5-003 NutSPRING, 5MM |
90331-SD5-003 |
from US $2 |
||
|
28
|
28
91501-SP1-003 ClipSIDE SILL GARNISH UPPER |
91501-SP1-003 |
US $2.17 |
||
|
29
|
29
91503-SZ3-003 Clip A |
91503-SZ3-003 |
from US $1.94 |
||
|
30
|
30
91503-SZ5-003 ClipBUMPER FACE |
91503-SZ5-003 |
from US $1.75 |
||
|
31
|
31
91505-SL0-003 ClipCOWL TOP |
91505-SL0-003 |
from US $2.74 |
||
|
32
|
32
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
33
|
33
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
34
|
34
93405-100-250-5 Bolt-washer10X25 |
93405-100-250-5 |
US $0.89 |
||
|
35
|
35
94071-08080 Nut-washer8MM |
94071-08080 |
from US $0.52 |
||
|
36
|
36
95701-100-160-8 BoltFLANGE, 10X16 |
95701-100-160-8 |
from US $0.74 |
||
