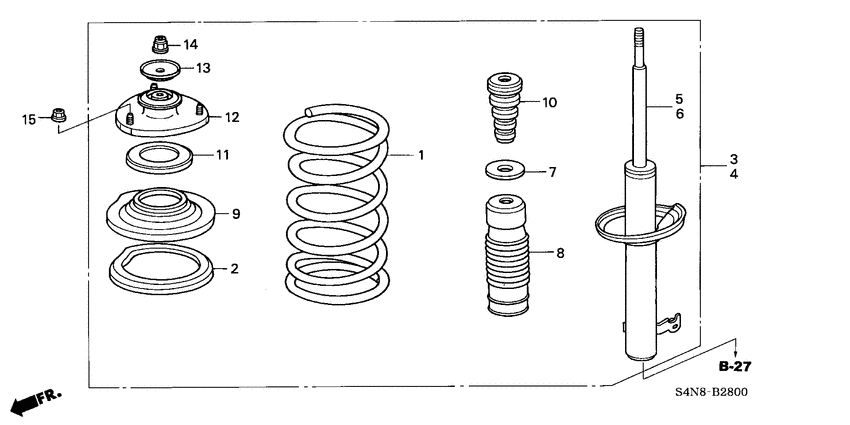

Front shock absorber Diagram Honda HR-V
- Year
- 2005
- Model code
- HR-V
- Sales region
- General
- Engine
- D16W
- transmission
- CVT
- Number of doors
- 5
- grade
- HYPER
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51401-S4N-991
Spring
|
51401-S4N-991 |
— | ||
|
2
|
2
51402-S2H-014 RubberFR. SPRING MOUNTING |
51402-S2H-014 |
US $16.16 |
||
|
3
|
3
51601-S4N-U13
Absorber assy
|
51601-S4N-U13 |
— | ||
|
4
|
4
51602-S4N-U13
Absorber assy
|
51602-S4N-U13 |
— | ||
|
5
|
5
51605-S2H-024 Absorber unit, R. FR. SHOCKR. FR. SHOCK |
51605-S2H-024 |
US $263.64 |
||
|
6
|
6
51606-S2H-024 Absorber unit, L. FR. SHOCKL. FR. SHOCK |
51606-S2H-024 |
US $263.64 |
||
|
7
|
7
51685-S47-004 PlateDUST COVER |
51685-S47-004 |
US $5.88 |
||
|
8
|
8
51687-S2H-951
Cover
|
51687-S2H-951 |
— | ||
|
9
|
9
51688-S2H-004 SeatFR. SPRING UPPER |
51688-S2H-004 |
US $13.70 |
||
|
10
|
10
51722-S2H-951 RubberFR. BUMP STOPPER |
51722-S2H-951 |
from US $11.45 |
||
|
11
|
11
51726-SK3-003 BearingFR. SHOCK ABSORBER MOUNT |
51726-SK3-003 |
from US $16.32 |
||
|
12
|
12
51920-S2H-901
Rubber
|
51920-S2H-901 |
— | ||
|
13
|
13
51923-S47-004 WasherFR. SHOCK ABSORBER MOUNTING |
51923-S47-004 |
US $5.02 |
||
|
14
|
14
90213-SJ6-004 NutSELF-LOCK, 12MM(NYLON) |
90213-SJ6-004 |
from US $3.02 |
||
|
15
|
15
90304-S10-014 NutFLANGE, 10MM |
90304-S10-014 |
US $2.73 |
