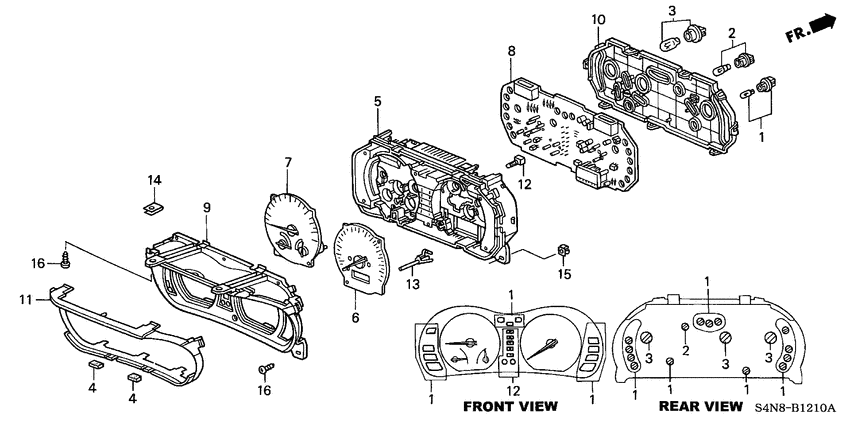

Meter components Diagram Honda HR-V
- Year
- 2005
- Model code
- HR-V
- Sales region
- General
- Engine
- D16W
- transmission
- CVT
- Number of doors
- 5
- grade
- HYPER
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35505-SA5-003 Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
35505-SA5-003 |
from US $3.70 |
||
|
2
|
2
35505-SJ4-003 Socket assyBULB (14V 3W) |
35505-SJ4-003 |
US $6.12 |
||
|
3
|
3
37102-SA5-003
Socket assy
|
37102-SA5-003 |
— | ||
|
4
|
4
37115-SA0-601 PackingNS |
37115-SA0-601 |
US $2.59 |
||
|
5
|
5
78110-S2H-U81 Case assy. |
78110-S2H-U81 |
US $57.86 |
||
|
6
|
6
78120-S2H-U52
Speedometer assy
|
78120-S2H-U52 |
— | ||
|
7
|
7
78125-S2H-J11 Meter assyTACHOMETER & FUEL & TEMPERATURE |
78125-S2H-J11 |
US $79.36 |
||
|
8
|
8
78146-S2H-U81 PanelCOMBINATION PRINT |
78146-S2H-U81 |
US $350.72 |
||
|
9
|
9
78155-S2H-J61
Visor assy
|
78155-S2H-J61 |
— | ||
|
10
|
10
78166-S2H-J01 Cover |
78166-S2H-J01 |
US $9.80 |
||
|
11
|
11
78170-S2H-J01
Lens
|
78170-S2H-J01 |
— | ||
|
12
|
12
78181-SS0-003
Socket assy
|
78181-SS0-003 |
— | ||
|
13
|
13
78188-S2H-J01 LeverRESET |
78188-S2H-J01 |
US $3.36 |
||
|
14
|
14
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
15
|
15
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
16
|
16
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
