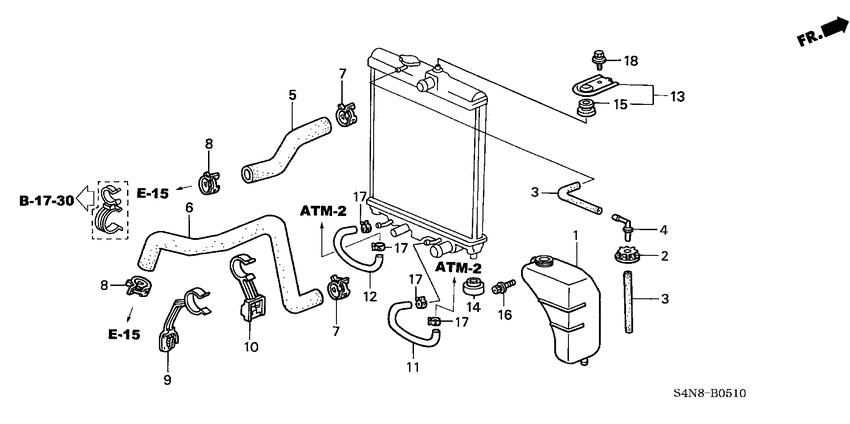

Radiator hose Diagram Honda HR-V
- Year
- 2005
- Model code
- HR-V
- Sales region
- General
- Engine
- D16W
- transmission
- CVT
- Number of doors
- 5
- grade
- HYPER
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19101-PEJ-000
Tank
|
19101-PEJ-000 |
— | ||
|
2
|
2
19102-PM5-A00 CapRESERVE TANK |
19102-PM5-A00 |
from US $3.98 |
||
|
3
|
3
19104-PZ3-010
Tube a
|
19104-PZ3-010 |
— | ||
|
4
|
4
19106-PA0-020 JointRESERVE TANK |
19106-PA0-020 |
from US $4.20 |
||
|
5
|
5
19501-PEL-000 HoseWATER UPPER |
19501-PEL-000 |
US $20.67 |
||
|
6
|
6
19502-PEL-000 HoseWATER LOWER |
19502-PEL-000 |
US $40.70 |
||
|
7
|
7
19511-PA6-003 ClipWATER HOSE(CHUO SPRING) |
19511-PA6-003 |
from US $3.70 |
||
|
8
|
8
19511-P08-003
Clip
|
19511-P08-003 |
— | ||
| replacement | |||||
|
8
|
8
19511-PA6-003 ClipWATER HOSE(CHUO SPRING) |
19511-PA6-003 |
from US $3.70 |
||
|
10
|
10
19519-P2J-J61 ClampWATER HOSE |
19519-P2J-J61 |
US $2.94 |
||
|
11
|
11
25212-P2A-003 Hose comp.ATF, 225MM |
25212-P2A-003 |
US $15.49 |
||
|
12
|
12
25213-P76-003 HoseATF, 345MM |
25213-P76-003 |
US $24.06 |
||
|
13
|
13
74171-S05-000 BracketRADIATOR MOUNT UPPER |
74171-S05-000 |
US $10.08 |
||
|
14
|
14
74172-SR3-000 CushionRADIATOR MOUNTING LOWER |
74172-SR3-000 |
from US $5.31 |
||
|
15
|
15
74173-SJ4-000 CushionRADIATOR MOUNTING UPPER |
74173-SJ4-000 |
from US $3.26 |
||
|
16
|
16
90015-PEJ-000 Bolt-washerSPECIAL, 6X16 |
90015-PEJ-000 |
US $1.54 |
||
|
17
|
17
90635-PT0-802
Clip, Oil Pipe
|
90635-PT0-802 |
— | ||
| replacement | |||||
|
17
|
17
90635-RV0-003 CLIP, OIL PIPE |
90635-RV0-003 |
from US $3.32 |
||
|
18
|
18
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
