	Description	OEM Part #	Price
1	1 35505-692-003 Bulb 14V 1.4W	35505-692-003	from US $2.07
2	2 35700-S04-901 Switch assy	35700-S04-901	—
3	3 39550-S04-003 Solenoid assy.	39550-S04-003	—
4	4 54020-S4N-951 Plate comp POSITION	54020-S4N-951	US $26.37
5	5 54021-S04-981 Cushion SHIFT LOCK STOPPER	54021-S04-981	US $3.50
6	6 54023-S04-981 Stopper	54023-S04-981	—
7	7 54030-S04-982 Release SHIFT LOCK	54030-S04-982	US $11.20
8	8 54100-S2H-981 Lever comp SELECT	54100-S2H-981	US $88.32
9	9 54110-S04-981 Spring comp	54110-S04-981	—
10	10 54123-SL4-980 Collar SELECT LEVER	54123-SL4-980	US $5.74
11	11 54131-S2H-951 Knob SELECT LEVER	54131-S2H-951	US $48.77
12	12 54132-S2H-981 Knob	54132-S2H-981	—
13	13 54133-SH9-980 Spring PUSH KNOB	54133-SH9-980	US $2.65
14	14 54141-SV4-980 Bush KNOB SETTING	54141-SV4-980	from US $2.44
15	15 54200-S04-981 Bracket comp. SELECT LEVER	54200-S04-981	US $28.29
16	16 54222-S04-981 Cover SELECT LEVER	54222-S04-981	US $6.30
17	17 54315-S2H-951 Wire	54315-S2H-951	—
18	18 54318-S04-981 Seal BRACKET	54318-S04-981	US $7
19	19 54341-S04-981 Boot CONTROL WIRE	54341-S04-981	US $1.96
20	20 54361-SV4-980 Pipe CONTROL WIRE ADJUSTING	54361-SV4-980	US $8.82
21	21 54363-689-981 Pin CONTROL WIRE ADJUSTER	54363-689-981	US $3.57
22	22 54710-S2H-953 Escutcheon comp. CONSOLE	54710-S2H-953	US $46.08
23	23 90130-SV4-980 Screw TAPPING, 5X11	90130-SV4-980	US $2.24
24	24 90301-SD5-000 Nut FLANGE, 6MM	90301-SD5-000	from US $1.82
25	25 90308-SA0-981 Nut SELF-LOCK, 6MM	90308-SA0-981	from US $1.82
26	26 90438-671-000 Washer SPECIAL, 6MM	90438-671-000	US $7.38
27	27 90555-S2H-950 Washer a	90555-S2H-950	—
28	28 90556-S50-950 Washer b	90556-S50-950	—
29	29 90706-PS5-000 Pin SNAP, 9MM	90706-PS5-000	US $2.52
30	30 91533-S04-003 Clip COUPLER (NATURAL)	91533-S04-003	from US $1.47
31	31 91558-ST5-003 Clip HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	91558-ST5-003	from US $2.60
32	32 92201-06060-0H Bolt HEX., 6X60	92201-06060-0H	US $0.59
33	33 93402-060-120-8 Bolt-washer 6X12	93402-060-120-8	from US $0.52
34	34 93402-060-160-8 Bolt-washer 6X16	93402-060-160-8	from US $0.52
35	35 93700-050-080-G Screw OVAL, 5X8	93700-050-080-G	from US $0.37
36	36 93893-040-080-8 Screw-washer 4X8	93893-040-080-8	from US $0.52
37	37 93893-050-100-8 Screw-washer 5X10	93893-050-100-8	from US $0.52
38	38 94001-060-800-S Nut HEX., 6MM	94001-060-800-S	from US $0.44
39	39 94050-06080 Nut FLANGE, 6MM	94050-06080	from US $0.52
40	40 94101-06800 Washer PLAIN, 6MM	94101-06800	from US $0.37

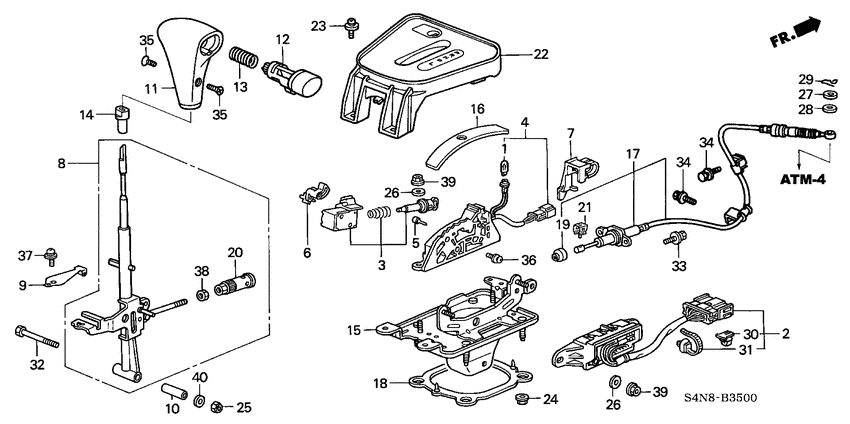

Select lever Diagram Honda HR-V General 7067796-548005

Select lever Diagram Honda HR-V General 7067796-548005
