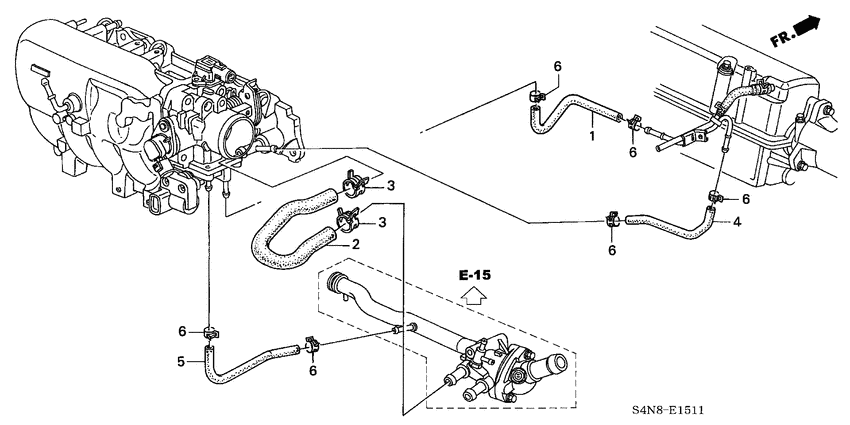

Water hose (SOHC VTEC) Diagram Honda HR-V
- Year
- 2005
- Model code
- HR-V
- Sales region
- General
- Engine
- D16W
- transmission
- CVT
- Number of doors
- 5
- grade
- HYPER
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19506-PEM-J00 HoseROTARY AIR CONTROL VALVE IN. |
19506-PEM-J00 |
US $5.46 |
||
|
2
|
2
19508-P2P-A00 HoseBYPASS OUTLET |
19508-P2P-A00 |
US $10.78 |
||
|
3
|
3
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $2.75 |
||
|
4
|
4
19527-PEM-G00 Hose aBREATHER HEATER |
19527-PEM-G00 |
US $7.28 |
||
|
5
|
5
19527-P08-000 Hose aBREATHER HEATER |
19527-P08-000 |
US $7.33 |
||
|
6
|
6
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
