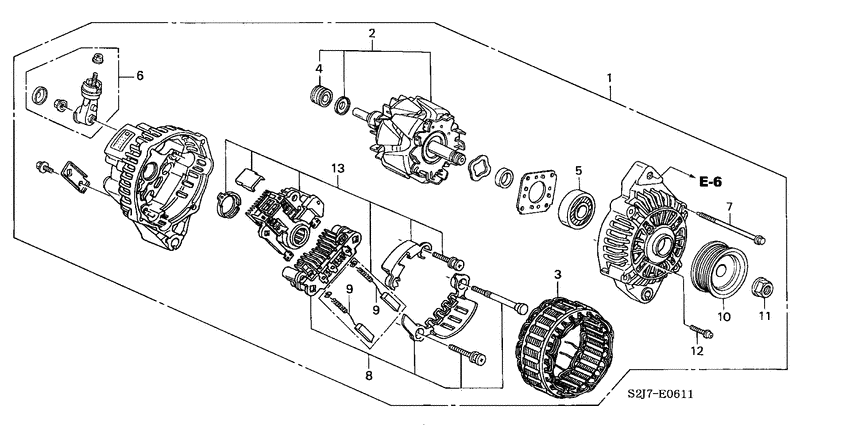

Alternator (MITSUBISHI) Diagram Honda HR-V
- Year
- 2005
- Model code
- HR-V
- Sales region
- General
- Engine
- D16W
- transmission
- 5MT
- Number of doors
- 5
- grade
- 4WD
- area code
- KY
- left-hand drive
- +
- sunroof
- +
- 4wd
- +
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
31100-PEL-N01 Alternator assyAHGA41) (MITSUBISHI |
31100-PEL-N01 |
US $984.32 |
||
2
|
2
31101-PEL-004 Rotor assy. |
31101-PEL-004 |
US $275.20 |
||
3
|
3
31102-PEL-004
Stator
|
31102-PEL-004 |
— | ||
4
|
4
31111-P08-J02 BearingRR. GENERATOR |
31111-P08-J02 |
from US $13.17 |
||
5
|
5
31114-P01-014 BearingFR. GENERATOR |
31114-P01-014 |
from US $12.60 |
||
6
|
6
31123-P08-J02
Terminal set
|
31123-P08-J02 |
— | ||
7
|
7
31125-P08-J02 BoltFLANGE |
31125-P08-J02 |
from US $2.38 |
||
8
|
8
31127-PEL-004 Rectifier assy. |
31127-PEL-004 |
US $189.44 |
||
9
|
9
31140-P64-902 Brush set |
31140-P64-902 |
from US $15.23 |
||
10
|
10
31141-P2E-A01 Pulley |
31141-P2E-A01 |
US $34.56 |
||
11
|
11
31142-P08-J02 Nut |
31142-P08-J02 |
US $1.68 |
||
12
|
12
31146-PE0-004 Screw |
31146-PE0-004 |
from US $1.47 |
||
13
|
13
31150-P2P-004 Regulator set |
31150-P2P-004 |
US $230.40 |
