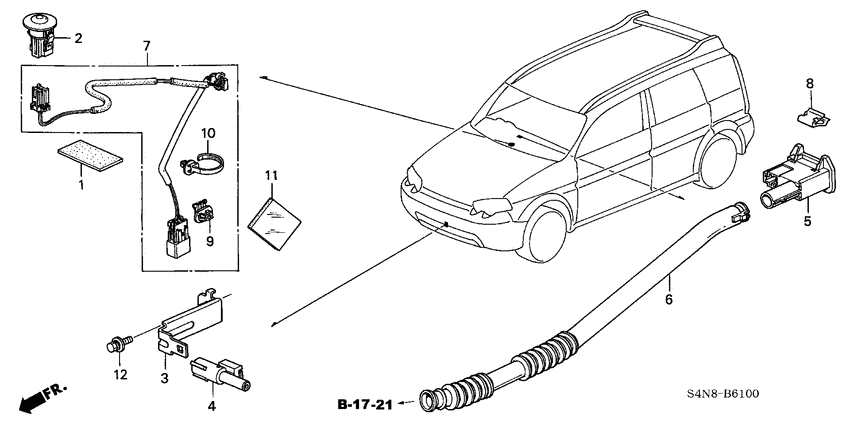

Air conditioner (SENSOR/AUTO AIR CON.) Diagram Honda HR-V
- Year
- 2004
- Model code
- HR-V
- Sales region
- General
- Engine
- D16W
- transmission
- CVT
- Number of doors
- 5
- grade
- HYPER
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- obd
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72327-SD5-000 Seal bFR. DOOR HOLE (30X50) |
72327-SD5-000 |
US $1.40 |
||
|
2
|
2
80510-S4N-941 Sensor assySUN BEAM |
80510-S4N-941 |
US $43.14 |
||
|
3
|
3
80521-SS0-940 BracketAMBIENT SENSOR |
80521-SS0-940 |
US $4.34 |
||
|
4
|
4
80525-S30-941 Sensor assyAMBIENT |
80525-S30-941 |
from US $41.44 |
||
|
5
|
5
80530-S4N-941 Sensor assyIN CAR |
80530-S4N-941 |
US $30.98 |
||
|
6
|
6
80533-S4N-941 HoseASPIRATOR |
80533-S4N-941 |
US $17.41 |
||
|
7
|
7
80651-S4N-943 HarnessAIR CONDITIONER WIRE |
80651-S4N-943 |
US $22.40 |
||
|
8
|
8
90665-S04-003 ClipSNAP FITTING |
90665-S04-003 |
US $1.61 |
||
|
9
|
9
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
10
|
10
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
11
|
11
91902-SB2-003 CushionWIRE HARNESS(50X100) |
91902-SB2-003 |
from US $2.96 |
||
|
12
|
12
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
