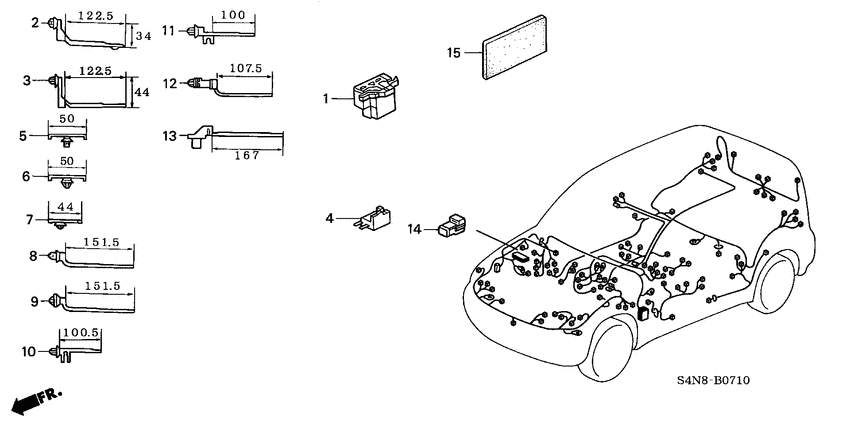

Harness band/bracket (LH) Diagram Honda HR-V
- Year
- 2003
- Model code
- HR-V
- Sales region
- General
- Engine
- D16W
- transmission
- 5MT
- Number of doors
- 5
- grade
- 4WD
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32131-SV4-003 CapCOUPLER (CP 2P, 3P) |
32131-SV4-003 |
US $4.90 |
||
|
2
|
2
32132-SM4-003 BandWIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
32132-SM4-003 |
US $2.73 |
||
|
3
|
3
32133-SM4-003 BandHARNESS OFFSET (30) (YELLOW) (122.5MM) |
32133-SM4-003 |
US $2.73 |
||
|
4
|
4
32146-S84-003 ConnectorDIODE (2P)(3A) |
32146-S84-003 |
from US $7.70 |
||
|
5
|
5
90627-SA5-003 ClipWIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) |
90627-SA5-003 |
from US $1.82 |
||
|
6
|
6
91507-693-003 ClipWIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
91507-693-003 |
from US $1.89 |
||
|
7
|
7
91531-S04-003 ClipWIRE HARNESS(NATURAL) (44MM) |
91531-S04-003 |
US $1.33 |
||
|
8
|
8
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
9
|
9
91545-S30-003 ClipHARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) |
91545-S30-003 |
US $2.31 |
||
|
10
|
10
91554-SH3-003 BandWIRE HARNESS (NATURAL) (100.5MM) |
91554-SH3-003 |
US $2.52 |
||
|
11
|
11
91556-SM4-003 ClipBAND (BLACK) (100MM) |
91556-SM4-003 |
US $2.31 |
||
|
12
|
12
91558-SJ6-003 StrapHARNESS (30) (BLACK) (107.5MM) |
91558-SJ6-003 |
US $5.41 |
||
|
13
|
13
91559-S47-003 ClipHARNESS BAND(NATURAL) (167MM) |
91559-S47-003 |
US $2.03 |
||
|
14
|
14
91637-SF1-003 Cap090 2P |
91637-SF1-003 |
from US $2.45 |
||
|
15
|
15
91902-SB2-003 CushionWIRE HARNESS(50X100) |
91902-SB2-003 |
from US $3.26 |
