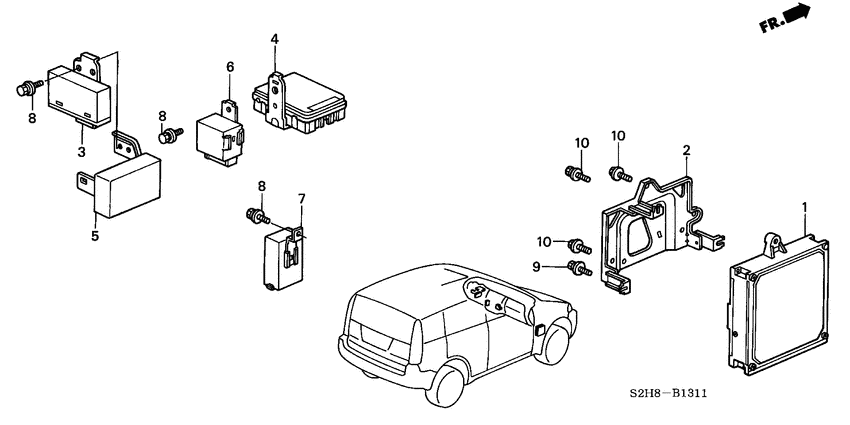

Control unit (CABIN; LH) Diagram Honda HR-V
- Year
- 2002
- Model code
- HR-V
- Sales region
- General
- Engine
- D16W
- transmission
- 5MT
- Number of doors
- 5
- grade
- 4WD
- area code
- KP
- left-hand drive
- +
- 4wd
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37820-PEL-Y02
Control module
|
37820-PEL-Y02 |
— | ||
|
2
|
2
37821-PEL-G00 Bracket comp.ELECTRONIC CONTROL UNIT |
37821-PEL-G00 |
US $12.74 |
||
|
3
|
3
38380-S2H-305 Control unitKEYLESS |
38380-S2H-305 |
US $142.08 |
||
|
4
|
4
38600-S50-003 Control unitINTEGRATED |
38600-S50-003 |
US $88.32 |
||
|
6
|
6
39400-S1F-003 Relay assyMAIN |
39400-S1F-003 |
from US $57.09 |
||
|
8
|
8
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
9
|
9
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
10
|
10
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
