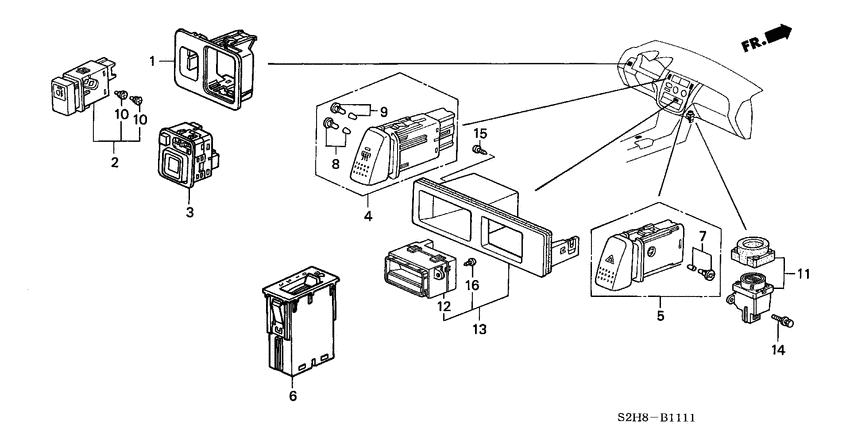

Switch (LH) Diagram Honda HR-V
- Year
- 2002
- Model code
- HR-V
- Sales region
- General
- Engine
- D16W
- transmission
- 5MT
- Number of doors
- 5
- grade
- 4WD
- area code
- KP
- left-hand drive
- +
- 4wd
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35145-S4N-003ZB Frame assyTWO KEY *NH167L* |
35145-S4N-003ZB |
US $8.68 |
||
|
3
|
3
35190-S04-J01ZB
Switch assy
|
35190-S04-J01ZB |
— | ||
|
3
|
3
35190-S04-A01ZA
Switch assy
|
35190-S04-A01ZA |
— | ||
|
4
|
4
35500-S2H-003ZA
Switch assy
|
35500-S2H-003ZA |
— | ||
|
5
|
5
35510-S2H-003
Switch assy
|
35510-S2H-003 |
— | ||
|
7
|
7
35850-S2H-003 Bulb comp.14V 60MA |
35850-S2H-003 |
US $3.50 |
||
|
8
|
8
35851-S2H-003 Bulb comp.14V 60MA |
35851-S2H-003 |
US $3.50 |
||
|
9
|
9
35852-S2H-003 Bulb comp.14V 60MA |
35852-S2H-003 |
US $3.50 |
||
|
12
|
12
39700-S2H-G01 Clock assyDIGITAL |
39700-S2H-G01 |
US $193.28 |
||
|
13
|
13
39706-S2H-G01 Pocket assyDIGITAL CLOCK |
39706-S2H-G01 |
US $216.32 |
||
|
15
|
15
93903-44210 ScrewTAPPING, 4X10 |
93903-44210 |
from US $0.37 |
||
|
16
|
16
93913-24180 ScrewTAPPING, 4X10 |
93913-24180 |
from US $0.41 |
