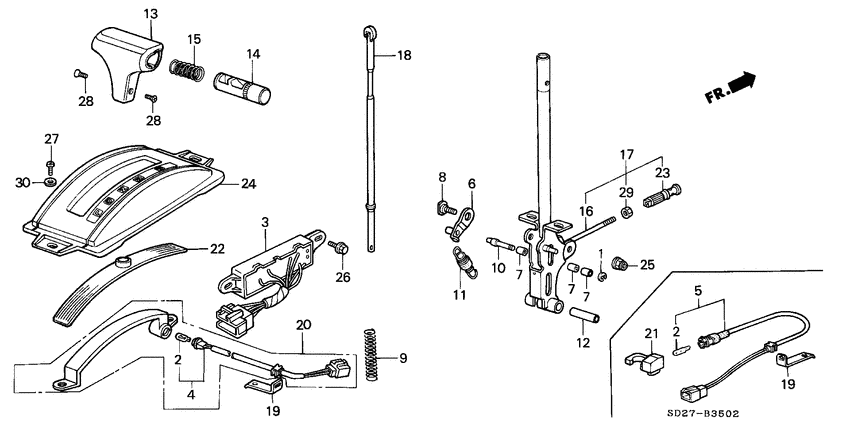

Select lever (AT; RH) Diagram Honda INTEGRA
- Year
- 1988
- Model code
- INTEGRA
- Sales region
- General
- Engine
- D16A
- transmission
- 4AT
- Number of doors
- 3
- grade
- SX 16
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30158-700-010 E-clip3MM |
30158-700-010 |
from US $1.14 |
||
|
2
|
2
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
3
|
3
35700-SB2-982
Switch assy
|
35700-SB2-982 |
— | ||
|
4
|
4
37700-SB0-981
Lamp assy.
|
37700-SB0-981 |
— | ||
|
6
|
6
54110-SB2-980
Stopper comp
|
54110-SB2-980 |
— | ||
|
7
|
7
54113-692-980
Collar
|
54113-692-980 |
— | ||
|
8
|
8
54115-SB2-980
Bolt
|
54115-SB2-980 |
— | ||
|
9
|
9
54117-692-980
Spring
|
54117-692-980 |
— | ||
|
10
|
10
54119-689-981
Pin
|
54119-689-981 |
— | ||
|
11
|
11
54120-SB2-980
Spring
|
54120-SB2-980 |
— | ||
|
12
|
12
54123-SE0-980 CollarSELECT LEVER |
54123-SE0-980 |
US $6.44 |
||
|
13
|
13
54131-SD2-980ZA
Knob
|
54131-SD2-980ZA |
— | ||
|
14
|
14
54132-SH4-981
Knob
|
54132-SH4-981 |
— | ||
|
15
|
15
54133-SA5-981
Spring
|
54133-SA5-981 |
— | ||
|
17
|
17
54135-SD2-981
Lever
|
54135-SD2-981 |
— | ||
|
18
|
18
54136-SD2-980
Rod comp
|
54136-SD2-980 |
— | ||
|
20
|
20
54210-SD2-G81
Indicator assy.
|
54210-SD2-G81 |
— | ||
|
22
|
22
54222-689-980
Cover
|
54222-689-980 |
— | ||
|
23
|
23
54361-689-981
Pipe
|
54361-689-981 |
— | ||
|
24
|
24
54710-SD2-981
Escutcheon
|
54710-SD2-981 |
— | ||
|
25
|
25
90114-SA0-000 NutSELF-LOCK, 6MM |
90114-SA0-000 |
from US $1.70 |
||
|
26
|
26
93493-060-120-8 Bolt-washer6X12 |
93493-060-120-8 |
from US $0.59 |
||
| replacement | |||||
|
26
|
26
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
27
|
27
93500-050-080-G ScrewPAN, 5X8 |
93500-050-080-G |
from US $0.37 |
||
|
28
|
28
93700-050-080-G ScrewOVAL, 5X8 |
93700-050-080-G |
from US $0.37 |
||
|
29
|
29
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
