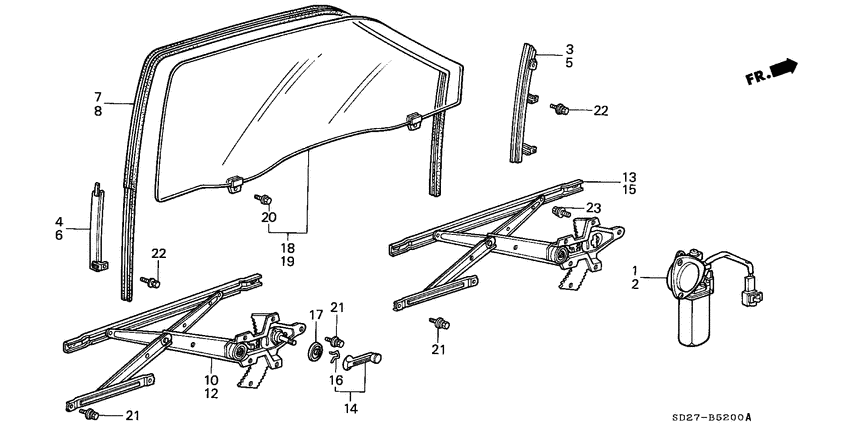

Front door windows (3D) Diagram Honda INTEGRA
- Year
- 1988
- Model code
- INTEGRA
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- SX 16
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38394-SD2-J03 Motor assy.R. WINDOW 0S200285 - |
38394-SD2-J03 |
US $294.40 |
||
|
1
|
1
38394-SD2-J02
Motor assy.
00000000 - 0S200284 |
38394-SD2-J02 |
— | ||
|
2
|
2
38399-SE7-J03 Motor assy.L. WINDOW 0S200285 - |
38399-SE7-J03 |
US $294.40 |
||
|
2
|
2
38399-SE7-J02
Motor assy.
00000000 - 0S200284 |
38399-SE7-J02 |
— | ||
|
3
|
3
75216-SD2-000
Sash
|
75216-SD2-000 |
— | ||
|
4
|
4
75217-SD2-000
Sash
|
75217-SD2-000 |
— | ||
|
5
|
5
75226-SD2-000
Sash
|
75226-SD2-000 |
— | ||
|
6
|
6
75227-SD2-000
Sash
|
75227-SD2-000 |
— | ||
|
7
|
7
75231-SD2-003
Channel
|
75231-SD2-003 |
— | ||
|
8
|
8
75236-SD2-003
Channel
|
75236-SD2-003 |
— | ||
|
13
|
13
75325-SD2-003
Regulator
|
75325-SD2-003 |
— | ||
|
15
|
15
75335-SD2-003
Regulator
|
75335-SD2-003 |
— | ||
|
18
|
18
75350-SD2-000
Glass assy
|
75350-SD2-000 |
— | ||
|
19
|
19
75360-SD2-000
Glass assy
|
75360-SD2-000 |
— | ||
|
20
|
20
90011-896-000 BoltFLANGE, 6X8 |
90011-896-000 |
US $3.98 |
||
|
21
|
21
93493-060-120-8 Bolt-washer6X12 |
93493-060-120-8 |
from US $0.59 |
||
| replacement | |||||
|
21
|
21
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
22
|
22
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
22
|
22
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
23
|
23
90115-SG0-003 BoltFLANGE, 6MM 0S200504 - |
90115-SG0-003 |
US $1.47 |
||
|
23
|
23
95900-060-120-8 BoltFLANGE, 6X12 00000000 - 0S200503 |
95900-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
23
|
23
95701-060-120-8 BoltFLANGE, 6X12 00000000 - 0S200503 |
95701-060-120-8 |
from US $0.52 |
||
