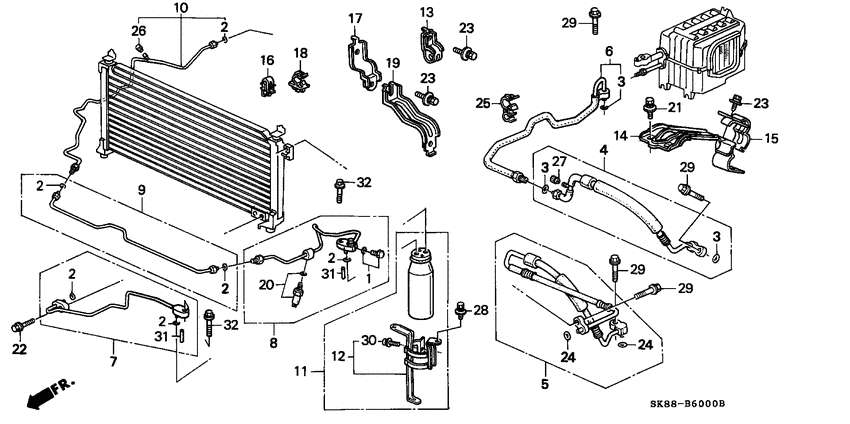

Air conditioner (HOSES/PIPES) Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38642-692-661
Plug
|
38642-692-661 |
— | ||
|
2
|
2
38646-692-660
O-ring
|
38646-692-660 |
— | ||
| replacement | |||||
|
2
|
2
80874-SL0-900 O-ring3/8" |
80874-SL0-900 |
US $3.74 |
||
|
3
|
3
38648-692-660 O-ring5/8" |
38648-692-660 |
US $2.87 |
||
|
4
|
4
80311-SK7-A03
Hose comp.
|
80311-SK7-A03 |
— | ||
|
5
|
5
80315-SK7-A01
Hose comp.
|
80315-SK7-A01 |
— | ||
|
6
|
6
80321-SK7-A03
Pipe comp
|
80321-SK7-A03 |
— | ||
|
7
|
7
80331-SK7-023
Pipe
|
80331-SK7-023 |
— | ||
|
8
|
8
80341-SK7-A01
Pipe a
|
80341-SK7-A01 |
— | ||
|
9
|
9
80342-SK7-A01
Pipe b
|
80342-SK7-A01 |
— | ||
|
10
|
10
80343-SK7-A03
Pipe c
|
80343-SK7-A03 |
— | ||
|
11
|
11
80350-SK7-000
Receiver assy
|
80350-SK7-000 |
— | ||
|
12
|
12
80352-SK7-010
Bracket
|
80352-SK7-010 |
— | ||
|
13
|
13
80361-SK7-010 Clamp aSUCTION PIPE |
80361-SK7-010 |
US $4.34 |
||
|
14
|
14
80371-SK7-A00
Stay
|
80371-SK7-A00 |
— | ||
|
15
|
15
80372-SK7-A00
Holder
|
80372-SK7-A00 |
— | ||
|
16
|
16
80374-SE0-971
Clamp d
|
80374-SE0-971 |
— | ||
|
17
|
17
80381-SK7-A00
Plate
|
80381-SK7-A00 |
— | ||
|
18
|
18
80381-SK7-003
Clip
|
80381-SK7-003 |
— | ||
|
19
|
19
80382-SK7-A00
Stay
|
80382-SK7-A00 |
— | ||
|
20
|
20
80440-SE0-003
Switch
|
80440-SE0-003 |
— | ||
|
21
|
21
90012-PC6-000 BoltSPECIAL, 6X12 (+) (DACRO COATING) |
90012-PC6-000 |
US $1.75 |
||
|
22
|
22
90133-SK7-000
Bolt-washer
|
90133-SK7-000 |
— | ||
|
23
|
23
90146-SA7-000
Bolt-washer
|
90146-SA7-000 |
— | ||
| replacement | |||||
|
23
|
23
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
24
|
24
91315-SE0-000 O-ring1/2" |
91315-SE0-000 |
US $2.10 |
||
|
25
|
25
91565-SK7-A01
Clamp
|
91565-SK7-A01 |
— | ||
|
26
|
26
91638-SF1-013
Cap
|
91638-SF1-013 |
— | ||
|
27
|
27
91639-SF1-013
Cap
|
91639-SF1-013 |
— | ||
|
28
|
28
93401-060-120-8 Bolt-washer6X12 |
93401-060-120-8 |
from US $0.52 |
||
|
29
|
29
93403-080-350-8 Bolt-washer8X35 |
93403-080-350-8 |
US $0.81 |
||
|
30
|
30
93893-050-200-8 Screw-washer5X20 |
93893-050-200-8 |
from US $0.52 |
||
|
31
|
31
94305-30102 PinSPRING, 3X10 |
94305-30102 |
from US $0.65 |
||
|
32
|
32
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
