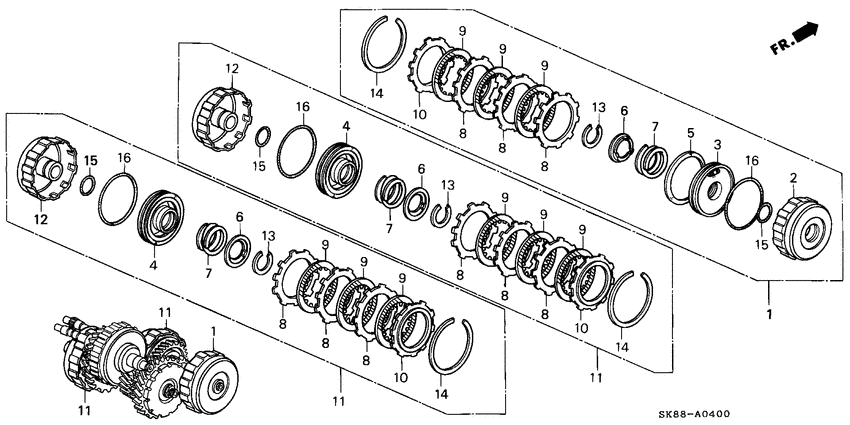

Clutch Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22500-PR0-850
Clutch assy.
|
22500-PR0-850 |
— | ||
|
2
|
2
22510-PF4-000
Guide comp
|
22510-PF4-000 |
— | ||
|
3
|
3
22530-PF4-003 Piston compCLUTCH (F.C.C) |
22530-PF4-003 |
US $57.98 |
||
|
4
|
4
22530-PF4-000 Piston compCLUTCH |
22530-PF4-000 |
US $57.73 |
||
|
5
|
5
22538-PG4-003
Spring
|
22538-PG4-003 |
— | ||
|
6
|
6
22542-PA9-000 SeatCLUTCH SPRING |
22542-PA9-000 |
from US $2.80 |
||
|
7
|
7
22542-PF4-004
Spring
|
22542-PF4-004 |
— | ||
|
7
|
7
22542-PF4-013
Spring
|
22542-PF4-013 |
— | ||
|
8
|
8
22543-PF4-000 PlateCLUTCH (116MM) |
22543-PF4-000 |
US $7 |
||
|
9
|
9
22544-PR0-850 DiskCLUTCH |
22544-PR0-850 |
US $21.89 |
||
|
10
|
10
22560-PF4-000 PlateCLUTCH END (10) (3.0MM) |
22560-PF4-000 |
US $15.87 |
||
|
10
|
10
22555-PF4-000 PlateCLUTCH END (5) (2.5MM) |
22555-PF4-000 |
US $15.87 |
||
|
10
|
10
22562-PF4-000
Plate
|
22562-PF4-000 |
— | ||
|
10
|
10
22557-PF4-000 PlateCLUTCH END (7) (2.7MM) |
22557-PF4-000 |
US $15.87 |
||
|
10
|
10
22552-PF4-000 PlateCLUTCH END (2) (2.2MM) |
22552-PF4-000 |
US $15.87 |
||
|
10
|
10
22564-PF4-000 PlateCLUTCH END (14) (3.4MM) |
22564-PF4-000 |
US $14.98 |
||
|
10
|
10
22559-PF4-000 PlateCLUTCH END (9) (2.9MM) |
22559-PF4-000 |
US $15.87 |
||
|
10
|
10
22554-PF4-000 PlateCLUTCH END (4) (2.4MM) |
22554-PF4-000 |
US $15.87 |
||
|
10
|
10
22561-PF4-000
Plate
|
22561-PF4-000 |
— | ||
|
10
|
10
22556-PF4-000 PlateCLUTCH END (6) (2.6MM) |
22556-PF4-000 |
US $15.87 |
||
|
10
|
10
22551-PF4-000
Plate
|
22551-PF4-000 |
— | ||
|
10
|
10
22563-PF4-000
Plate
|
22563-PF4-000 |
— | ||
|
10
|
10
22558-PF4-000 PlateCLUTCH END (8) (2.8MM) |
22558-PF4-000 |
US $15.87 |
||
|
10
|
10
22553-PF4-000 PlateCLUTCH END (3) (2.3MM) |
22553-PF4-000 |
US $15.87 |
||
|
11
|
11
22650-PR0-850
Clutch assy.
|
22650-PR0-850 |
— | ||
|
12
|
12
22661-PF4-000 Guide compTHIRD CLUTCH |
22661-PF4-000 |
US $166.40 |
||
|
13
|
13
90603-PA9-000 CirclipEXTERNAL, 40MM |
90603-PA9-000 |
from US $3.11 |
||
|
14
|
14
90605-PF4-000 RingSNAP, 125MM |
90605-PF4-000 |
US $7 |
||
|
15
|
15
91302-PA9-003 O-ring39.8X2.2 (ARAI) |
91302-PA9-003 |
from US $2.96 |
||
|
15
|
15
91302-PA9-004 O-ring39.8X2.2 (NOK) |
91302-PA9-004 |
US $4.51 |
||
| replacement | |||||
|
15
|
15
91302-PA9-003 O-ring39.8X2.2 (ARAI) |
91302-PA9-003 |
from US $2.96 |
||
|
16
|
16
91303-PF4-004 O-ring110X2.2 (NOK) |
91303-PF4-004 |
US $4 |
||
