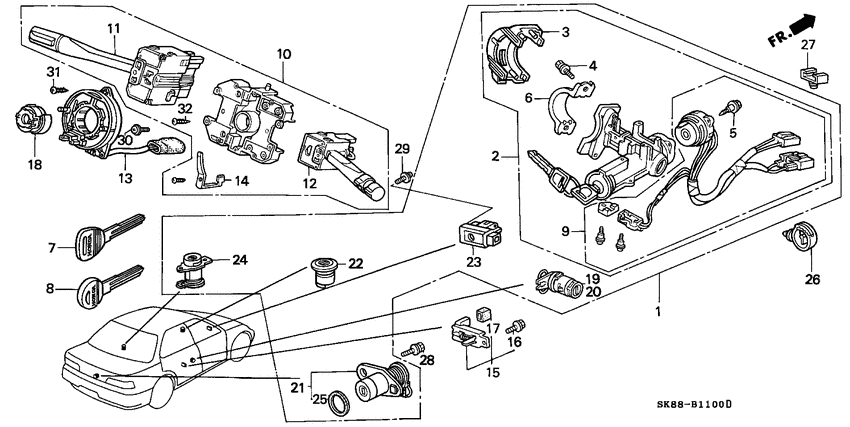

Combination switch Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35010-SK8-D10ZA
Cylinder set
|
35010-SK8-D10ZA |
— | ||
|
1
|
1
35010-SK8-D10ZB
Cylinder set
|
35010-SK8-D10ZB |
— | ||
|
2
|
2
35100-SK7-D11
Lock assy
|
35100-SK7-D11 |
— | ||
|
3
|
3
35101-SK7-003
Cover
|
35101-SK7-003 |
— | ||
|
4
|
4
35102-SA5-003 BoltBREAK HEAD |
35102-SA5-003 |
US $2 |
||
| replacement | |||||
|
4
|
4
35102-SV4-003 BoltBREAK HEAD |
35102-SV4-003 |
from US $2 |
||
|
5
|
5
35103-SE3-003 ScrewRECESSED, 3X8 |
35103-SE3-003 |
US $2.10 |
||
|
6
|
6
35108-SK7-003
Holder
|
35108-SK7-003 |
— | ||
|
7
|
7
35113-SH3-013 KeyBLANK |
35113-SH3-013 |
US $13.68 |
||
|
8
|
8
35114-SH3-A02
Key
|
35114-SH3-A02 |
— | ||
|
9
|
9
35130-SK7-A01
Switch comp
|
35130-SK7-A01 |
— | ||
|
10
|
10
35250-SK7-A33
Switch assy
|
35250-SK7-A33 |
— | ||
|
11
|
11
35255-SH3-A04
Switch assy
|
35255-SH3-A04 |
— | ||
|
12
|
12
35256-SH3-A22
Switch assy, Wiper (C) (TEC)
|
35256-SH3-A22 |
— | ||
|
13
|
13
35257-SK7-003
Ring assy
|
35257-SK7-003 |
— | ||
|
15
|
15
35400-692-033
Switch assy
|
35400-692-033 |
— | ||
|
16
|
16
35409-692-013 ScrewFLANGE, 4X12 |
35409-692-013 |
from US $2.09 |
||
|
17
|
17
35410-692-003 CoverDOOR SWITCH |
35410-692-003 |
US $5.77 |
||
|
18
|
18
53271-SK7-003
Cam
|
53271-SK7-003 |
— | ||
|
19
|
19
72145-SH3-023
Cylinder
|
72145-SH3-023 |
— | ||
|
20
|
20
72146-SH3-023
Cylinder
|
72146-SH3-023 |
— | ||
|
21
|
21
74861-SK8-013
Cylinder
|
74861-SK8-013 |
— | ||
|
22
|
22
74886-SH4-A03 CylinderTRUNK REMOTE CONTROL |
74886-SH4-A03 |
US $41.73 |
||
|
23
|
23
77540-SK7-A01ZB
Lock assy
|
77540-SK7-A01ZB |
— | ||
|
23
|
23
77540-SK7-A01ZA
Lock assy
|
77540-SK7-A01ZA |
— | ||
|
24
|
24
82226-SK8-A23
Cylinder
|
82226-SK8-A23 |
— | ||
|
25
|
25
90501-SK8-000
Packing
|
90501-SK8-000 |
— | ||
|
27
|
27
91565-SH3-003 ClipCOUPLER HOLDER (BROWN) |
91565-SH3-003 |
from US $1.54 |
||
|
28
|
28
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
29
|
29
93891-040-120-7 Screw-washer4X12 |
93891-040-120-7 |
from US $0.44 |
||
|
30
|
30
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
31
|
31
93901-32320 ScrewTAPPING, 3X12 |
93901-32320 |
from US $0.37 |
||
|
32
|
32
93901-32420 ScrewTAPPING, 3X16 |
93901-32420 |
from US $0.37 |
||
