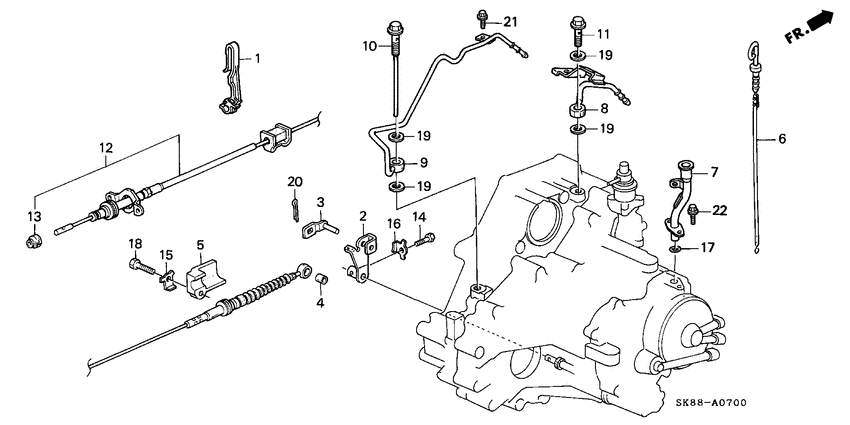

Control lever/control wire Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24365-PM5-901
Clamp
|
24365-PM5-901 |
— | ||
|
2
|
2
24412-PR0-000
Lever
|
24412-PR0-000 |
— | ||
|
3
|
3
24414-PR0-000
Pin
|
24414-PR0-000 |
— | ||
|
4
|
4
24415-PA9-000 RollerCONTROL LEVER |
24415-PA9-000 |
US $2.80 |
||
|
5
|
5
24901-PR0-000
Holder
|
24901-PR0-000 |
— | ||
|
6
|
6
25610-PR0-013
Gauge comp.
|
25610-PR0-013 |
— | ||
|
7
|
7
25613-PR0-010
Pipe comp
|
25613-PR0-010 |
— | ||
|
8
|
8
25910-PR0-020
Pipe comp. b
|
25910-PR0-020 |
— | ||
|
9
|
9
25920-PR0-020
Pipe comp. a
|
25920-PR0-020 |
— | ||
|
10
|
10
25950-PX4-000 Bolt compJOINT |
25950-PX4-000 |
US $10.08 |
||
|
11
|
11
25951-639-000 BoltJOINT |
25951-639-000 |
from US $11.23 |
||
|
12
|
12
54315-SK7-984
Wire
|
54315-SK7-984 |
— | ||
|
13
|
13
54341-SA0-980
Boot
|
54341-SA0-980 |
— | ||
|
14
|
14
90001-PA9-000 BoltHEX., 6MM |
90001-PA9-000 |
from US $1.89 |
||
|
15
|
15
90433-PR0-000
Washer
|
90433-PR0-000 |
— | ||
|
16
|
16
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
17
|
17
91307-425-003 O-ring21.5X3.2 |
91307-425-003 |
from US $1.67 |
||
|
18
|
18
93301-080-350-8 BoltHEX., 8X35 |
93301-080-350-8 |
US $0.59 |
||
|
19
|
19
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
20
|
20
94201-20120 PinSPLIT, 2.0X12 |
94201-20120 |
from US $0.37 |
||
|
21
|
21
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
22
|
22
95900-080-200-8 BoltFLANGE, 8X20 |
95900-080-200-8 |
US $0.59 |
