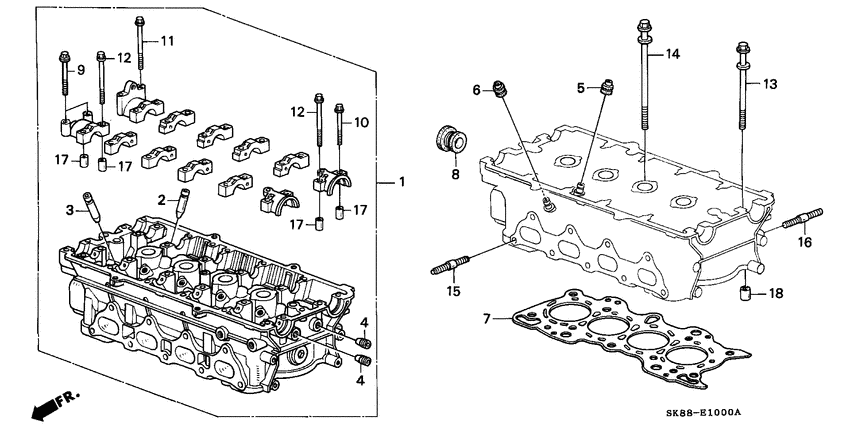

Cylinder head Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-PR4-000
Head assy
|
12100-PR4-000 |
— | ||
|
2
|
2
12204-PR4-A01 GuideIN. VALVE |
12204-PR4-A01 |
US $10.22 |
||
|
3
|
3
12205-PR4-A01 GuideEX. VALVE |
12205-PR4-A01 |
US $10.22 |
||
|
4
|
4
12208-PG6-300 ScrewSEALING |
12208-PG6-300 |
US $2.24 |
||
|
5
|
5
12210-PT2-003 Seal aVALVE STEM (ARAI) |
12210-PT2-003 |
US $5.77 |
||
| replacement | |||||
|
5
|
5
12210-PT2-004 Seal aVALVE STEM (NOK) |
12210-PT2-004 |
from US $5.77 |
||
|
5
|
5
12210-PT2-004 Seal aVALVE STEM (NOK) |
12210-PT2-004 |
from US $5.77 |
||
|
6
|
6
12211-PT2-004 Seal bVALVE STEM (NOK) |
12211-PT2-004 |
from US $5.77 |
||
|
6
|
6
12211-PT2-003 Seal bVALVE STEM (ARAI) |
12211-PT2-003 |
US $5.77 |
||
| replacement | |||||
|
6
|
6
12211-PT2-004 Seal bVALVE STEM (NOK) |
12211-PT2-004 |
from US $5.77 |
||
|
7
|
7
12251-PR4-004 Gasket compCYLINDER HEAD (NIPPON LEAKLESS) |
12251-PR4-004 |
US $74.88 |
||
|
8
|
8
12513-P30-000 Rubber compCYLINDER HEAD SEAL |
12513-P30-000 |
from US $10.89 |
||
|
9
|
9
90002-PG6-000 BoltFLANGE, 6X40 |
90002-PG6-000 |
US $2.10 |
||
|
10
|
10
90002-PH3-000 BoltFLANGE, 6X40 |
90002-PH3-000 |
from US $1.71 |
||
|
11
|
11
90003-PG6-000 BoltFLANGE, 6X60 |
90003-PG6-000 |
US $5.97 |
||
| replacement | |||||
|
11
|
11
90003-PH3-000 BoltFLANGE, 6X60 |
90003-PH3-000 |
from US $2.52 |
||
|
12
|
12
90003-PH3-000 BoltFLANGE, 6X60 |
90003-PH3-000 |
from US $2.52 |
||
|
13
|
13
90005-PR4-A01 Bolt-washer11X158 |
90005-PR4-A01 |
from US $10.67 |
||
|
14
|
14
90006-PR4-A01 Bolt-washer11X188 |
90006-PR4-A01 |
from US $14.28 |
||
|
15
|
15
90026-PE0-000
Bolt
|
90026-PE0-000 |
— | ||
| replacement | |||||
|
15
|
15
90026-PT0-000 BoltSTUD, 8X38 |
90026-PT0-000 |
US $2.69 |
||
|
16
|
16
92900-08025-1B BoltSTUD, 8X25 |
92900-08025-1B |
from US $0.74 |
||
|
17
|
17
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
18
|
18
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
