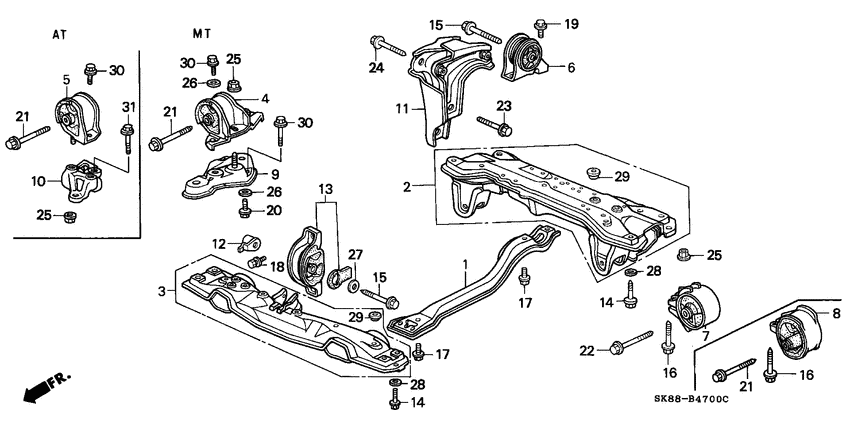

Engine mounts Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50100-SK7-030
Beam
|
50100-SK7-030 |
— | ||
|
2
|
2
50200-SK7-A54
Beam
|
50200-SK7-A54 |
— | ||
|
3
|
3
50250-SK7-A05
Beam
|
50250-SK7-A05 |
— | ||
|
5
|
5
50805-SK7-981
Rubber
|
50805-SK7-981 |
— | ||
|
6
|
6
50810-SK7-982
Rubber assy.
|
50810-SK7-982 |
— | ||
|
7
|
7
50820-SK7-A01
Rubber assy.
|
50820-SK7-A01 |
— | ||
|
10
|
10
50825-SK7-980
Bracket
|
50825-SK7-980 |
— | ||
|
11
|
11
50827-SK7-020
Bracket
|
50827-SK7-020 |
— | ||
|
12
|
12
50839-SK7-000
Nut
|
50839-SK7-000 |
— | ||
| replacement | |||||
|
12
|
12
50839-SH3-000
Nut
|
50839-SH3-000 |
— | ||
|
13
|
13
50840-SK7-982
Mounting assy.
|
50840-SK7-982 |
— | ||
|
14
|
14
90161-SH3-040
Bolt
|
90161-SH3-040 |
— | ||
|
15
|
15
90164-SH3-010 BoltFLANGE, 12X90 |
90164-SH3-010 |
US $7.98 |
||
|
16
|
16
90170-SH3-010
Bolt
|
90170-SH3-010 |
— | ||
|
17
|
17
90171-SK7-010
Bolt
|
90171-SK7-010 |
— | ||
|
18
|
18
90175-SK7-020
Bolt-washer
|
90175-SK7-020 |
— | ||
|
19
|
19
90176-SK7-013 BoltFLANGE, 10X31 |
90176-SK7-013 |
US $3.99 |
||
|
21
|
21
90182-SK7-000 BoltFLANGE, 12X100 |
90182-SK7-000 |
US $5.18 |
||
|
22
|
22
90182-SR3-000
Bolt
|
90182-SR3-000 |
— | ||
|
23
|
23
90188-SF1-010 BoltHEX., 12X61 |
90188-SF1-010 |
US $4.34 |
||
|
24
|
24
90189-SF1-010 BoltHEX., 12X31 |
90189-SF1-010 |
US $2.38 |
||
|
25
|
25
90371-SH3-020
Nut
|
90371-SH3-020 |
— | ||
| replacement | |||||
|
25
|
25
94050-12080 NutFLANGE, 12MM |
94050-12080 |
from US $0.81 |
||
|
27
|
27
90504-SB0-000 WasherPLAIN, 12MM |
90504-SB0-000 |
from US $1.48 |
||
|
28
|
28
90504-SH3-000
Washer
|
90504-SH3-000 |
— | ||
|
29
|
29
91613-SE0-003 GrommetSUB FRAME, 15MM |
91613-SE0-003 |
US $3.18 |
||
|
30
|
30
95701-120-250-8 BoltFLANGE, 12X25 |
95701-120-250-8 |
from US $1.04 |
||
|
31
|
31
95701-120-350-8 BoltFLANGE, 12X35 |
95701-120-350-8 |
from US $1.04 |
||
