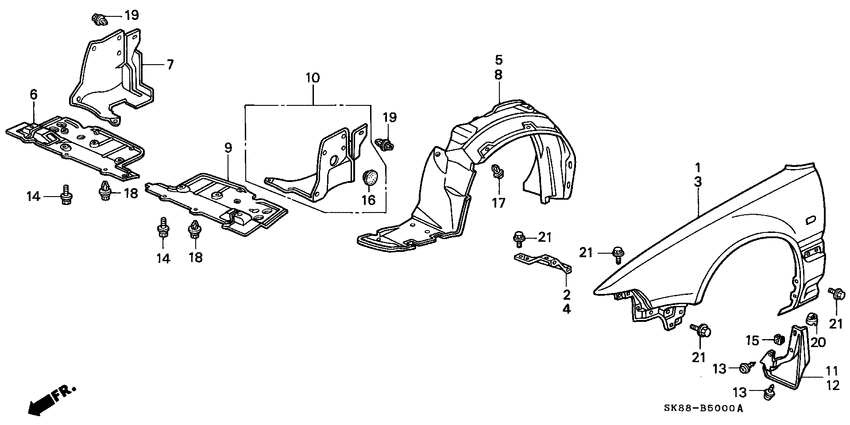

Front fenders Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60211-SK7-A00ZZ
Panel
|
60211-SK7-A00ZZ |
— | ||
|
2
|
2
60213-SK7-000ZZ
Stay b
|
60213-SK7-000ZZ |
— | ||
|
3
|
3
60261-SK7-A00ZZ
Panel
|
60261-SK7-A00ZZ |
— | ||
|
4
|
4
60263-SK7-000ZZ
Stay b
|
60263-SK7-000ZZ |
— | ||
|
5
|
5
74101-SK7-000
Fender
|
74101-SK7-000 |
— | ||
|
6
|
6
74111-SK7-A00
Shield
|
74111-SK7-A00 |
— | ||
|
7
|
7
74115-SK7-000
Guard
|
74115-SK7-000 |
— | ||
|
8
|
8
74151-SK7-000
Fender
|
74151-SK7-000 |
— | ||
|
9
|
9
74161-SK7-A00
Shield
|
74161-SK7-A00 |
— | ||
|
10
|
10
74165-SK7-000
Guard
|
74165-SK7-000 |
— | ||
|
11
|
11
75800-SK7-000
Mudguard
|
75800-SK7-000 |
— | ||
|
12
|
12
75810-SK7-000
Mudguard
|
75810-SK7-000 |
— | ||
|
13
|
13
90126-SA7-000
Screw-washer
|
90126-SA7-000 |
— | ||
| replacement | |||||
|
13
|
13
90114-SZ3-000 Screw-washer5X20 |
90114-SZ3-000 |
US $2.52 |
||
|
14
|
14
90146-SA7-000
Bolt-washer
|
90146-SA7-000 |
— | ||
| replacement | |||||
|
14
|
14
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
15
|
15
90682-SB0-003 GrommetSCREW, 5MM |
90682-SB0-003 |
US $1.55 |
||
|
16
|
16
90850-SA7-000 PlugFUSE LID |
90850-SA7-000 |
US $2.38 |
||
|
17
|
17
91504-SF4-003
Clip
|
91504-SF4-003 |
— | ||
| replacement | |||||
|
17
|
17
91501-S04-003 ClipINNER FENDER |
91501-S04-003 |
from US $2.22 |
||
|
18
|
18
91516-SK7-013 ClipUNDER COVER |
91516-SK7-013 |
US $3.48 |
||
|
19
|
19
91608-SJ6-003 BootSCREW RIVET |
91608-SJ6-003 |
US $1.68 |
||
|
20
|
20
91621-SF1-003
Grommet
|
91621-SF1-003 |
— | ||
|
21
|
21
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
