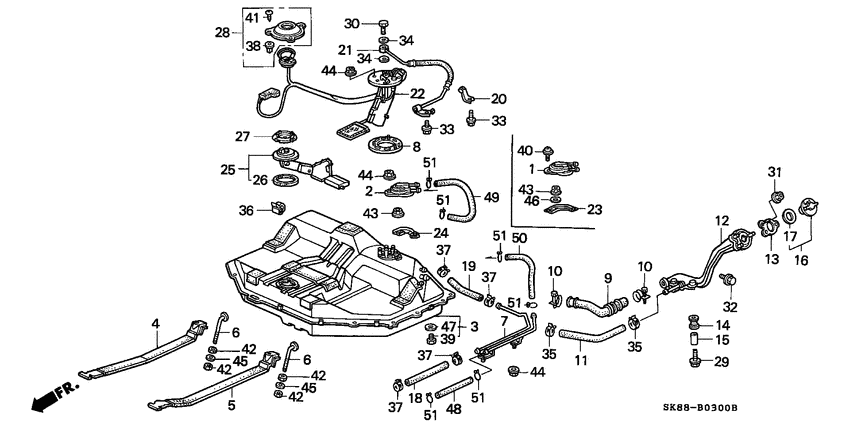

Fuel tank Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
17371-SM4-A02
Valve
|
17371-SM4-A02 |
— | ||
|
3
|
3
17500-SK7-A33
Tank comp.
|
17500-SK7-A33 |
— | ||
|
4
|
4
17521-SH3-030
Band
|
17521-SH3-030 |
— | ||
|
5
|
5
17522-SH3-020
Band
|
17522-SH3-020 |
— | ||
|
6
|
6
17525-SH3-010 BoltFUEL TANK MOUNTING |
17525-SH3-010 |
US $4.88 |
||
|
7
|
7
17534-SK7-A31
Pipe comp
|
17534-SK7-A31 |
— | ||
|
8
|
8
17574-SE0-000 PackingBASE |
17574-SE0-000 |
from US $7.51 |
||
|
9
|
9
17651-SK7-930
Tube
|
17651-SK7-930 |
— | ||
|
10
|
10
17652-SA5-000 ClipFILLER TUBE |
17652-SA5-000 |
US $5.48 |
||
|
11
|
11
17652-SD5-000
Tube
|
17652-SD5-000 |
— | ||
|
12
|
12
17660-SK7-A31
Pipe comp
|
17660-SK7-A31 |
— | ||
|
13
|
13
17662-SB2-010
Packing
|
17662-SB2-010 |
— | ||
|
14
|
14
17664-SH4-010
Bush
|
17664-SH4-010 |
— | ||
|
15
|
15
17665-SK7-010 CollarFILLER PIPE MOUNT |
17665-SK7-010 |
US $3.01 |
||
|
16
|
16
17670-SA5-013
Cap comp.
|
17670-SA5-013 |
— | ||
|
17
|
17
17682-679-013 PackingFUEL FILLER CAP |
17682-679-013 |
from US $4.59 |
||
|
18
|
18
17702-SK7-931
Hose
|
17702-SK7-931 |
— | ||
|
19
|
19
17705-SK7-930
Hose b
|
17705-SK7-930 |
— | ||
|
20
|
20
17706-SK7-931
Bracket comp.
|
17706-SK7-931 |
— | ||
|
21
|
21
17707-SK7-A34
Hose comp.
|
17707-SK7-A34 |
— | ||
|
22
|
22
17708-SK7-A36
Pump unit
|
17708-SK7-A36 |
— | ||
|
24
|
24
17726-SK7-A31
Bracket
|
17726-SK7-A31 |
— | ||
|
25
|
25
37800-SK7-A01
Meter unit
|
37800-SK7-A01 |
— | ||
|
26
|
26
37801-SE3-000
Packing
|
37801-SE3-000 |
— | ||
|
27
|
27
37802-SE0-000
Retainer
|
37802-SE0-000 |
— | ||
|
28
|
28
74660-SK7-010
Cap assy.
|
74660-SK7-010 |
— | ||
|
29
|
29
90011-SK7-010 BoltFILLER PIPE MOUNTING |
90011-SK7-010 |
US $1.82 |
||
|
30
|
30
90020-PD6-000 BoltSEALING, 12MM |
90020-PD6-000 |
from US $7.99 |
||
|
31
|
31
90103-SB0-010 NutFLANGE, 5MM |
90103-SB0-010 |
US $1.33 |
||
|
32
|
32
90161-SH4-000
Bolt-washer
|
90161-SH4-000 |
— | ||
|
33
|
33
90164-SD4-000 Bolt-washer6X16 |
90164-SD4-000 |
US $1.96 |
||
|
34
|
34
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
35
|
35
90602-SA7-931 ClampFUEL HOSE, 18.5MM |
90602-SA7-931 |
from US $2.66 |
||
|
36
|
36
90691-SB3-000
Clip
|
90691-SB3-000 |
— | ||
|
37
|
37
91406-SA7-931 ClampFUEL HOSE, 15.5MM |
91406-SA7-931 |
US $10.18 |
||
| replacement | |||||
|
37
|
37
91406-SL0-931 ClampFUEL HOSE, 15.5MM |
91406-SL0-931 |
from US $4 |
||
|
38
|
38
91601-SH3-013 GrommetSCREW, 5MM (BLACK) |
91601-SH3-013 |
from US $1.55 |
||
|
39
|
39
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
41
|
41
93901-25220 ScrewTAPPING, 5X12 |
93901-25220 |
from US $0.38 |
||
|
42
|
42
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
42
|
42
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
43
|
43
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
|
44
|
44
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
45
|
45
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
47
|
47
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
48
|
48
95001-551-553-0 TubeFUEL, 5.3X155 (95001-55001-60M) |
95001-551-553-0 |
US $2.37 |
||
|
49
|
49
95001-551-603-0
Tube
|
95001-551-603-0 |
— | ||
|
50
|
50
95001-551-803-0 TubeFUEL, 5.3X180 (95001-55001-60M) |
95001-551-803-0 |
US $2.37 |
||
|
51
|
51
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
