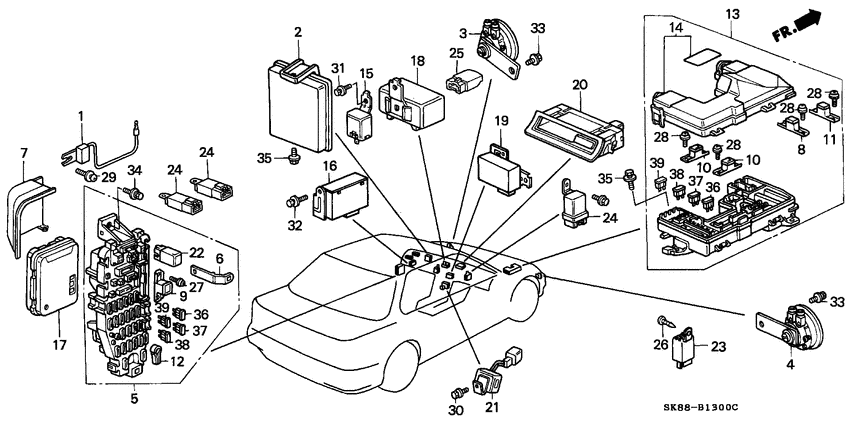

Fuse box/relay Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30510-SK7-003
Condenser comp.
|
30510-SK7-003 |
— | ||
|
2
|
2
36700-SK7-A14
Controller
|
36700-SK7-A14 |
— | ||
|
3
|
3
38100-SR3-013
Horn assy
|
38100-SR3-013 |
— | ||
|
4
|
4
38150-SH3-013 Horn assyHIGH (MITSUBA) |
38150-SH3-013 |
US $66.57 |
||
|
5
|
5
38200-SK7-A12
Box assy
|
38200-SK7-A12 |
— | ||
|
6
|
6
38203-SK7-003
Bracket
|
38203-SK7-003 |
— | ||
|
7
|
7
38204-SK7-A01
Cover
|
38204-SK7-A01 |
— | ||
|
8
|
8
38211-SD2-000
Fuse
|
38211-SD2-000 |
— | ||
|
9
|
9
38212-SE0-000
Fuse
|
38212-SE0-000 |
— | ||
|
10
|
10
38213-SD4-000
Fuse
|
38213-SD4-000 |
— | ||
|
11
|
11
38216-SK7-003
Fuse
|
38216-SK7-003 |
— | ||
|
12
|
12
38235-SA5-003 PullerFUSE (SUMITOMO) |
38235-SA5-003 |
US $2.52 |
||
|
13
|
13
38250-SK7-C21 Box assyMAIN FUSE |
38250-SK7-C21 |
US $109.44 |
||
|
14
|
14
38251-SK7-C21
Cover
|
38251-SK7-C21 |
— | ||
|
15
|
15
38300-SK7-004 RelayTURN SIGNAL (166500-0320) (DENS0) |
38300-SK7-004 |
US $43.26 |
||
|
15
|
15
38300-SK7-003
Relay
|
38300-SK7-003 |
— | ||
|
16
|
16
38380-SK8-A01
Control unit
|
38380-SK8-A01 |
— | ||
|
17
|
17
38600-SK7-C11
Control unit
|
38600-SK7-C11 |
— | ||
|
18
|
18
39400-SK7-003 Relay assyMAIN (RZ-0067) (MITSUBA) |
39400-SK7-003 |
US $57.86 |
||
|
19
|
19
39500-SK7-A01
Control assy.
|
39500-SK7-A01 |
— | ||
|
20
|
20
39700-SK7-014ZB
Clock assy
|
39700-SK7-014ZB |
— | ||
|
20
|
20
39700-SK7-013ZA Clock assyDIGITAL (NS) *NH167L* |
39700-SK7-013ZA |
US $317.44 |
||
|
20
|
20
39700-SK7-014ZA
Clock assy
|
39700-SK7-014ZA |
— | ||
|
20
|
20
39700-SK7-013ZB
Clock assy
|
39700-SK7-013ZB |
— | ||
|
21
|
21
39760-SD2-A01
Chime assy
|
39760-SD2-A01 |
— | ||
|
22
|
22
39794-SE0-004 Relay assyPOWER (4P) (MITSUBA) (RC-2203) |
39794-SE0-004 |
US $20.61 |
||
|
22
|
22
39794-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7250) |
39794-SE0-003 |
US $18.43 |
||
|
24
|
24
39797-SE0-004 Relay assyPOWER (4P) (MITSUBA) (RC-2201) |
39797-SE0-004 |
from US $28.54 |
||
|
24
|
24
39797-SE0-003 Relay assyPOWER (4P) (DENSO) (056700-7330) |
39797-SE0-003 |
US $36.20 |
||
|
25
|
25
39797-SH2-003 Relay assyPOWER (4P) (DENSO) |
39797-SH2-003 |
US $32.77 |
||
|
27
|
27
90153-SA5-900 Screw-washer5X9 |
90153-SA5-900 |
US $2.80 |
||
|
28
|
28
90153-SB2-003 Screw-washer5X10 00000000 - 0S300871 |
90153-SB2-003 |
from US $1.82 |
||
|
28
|
28
90129-SH3-000
Screw-washer
0S300872 - |
90129-SH3-000 |
— | ||
|
29
|
29
90153-SB6-003 BoltEARTH, 6X12(ZN) |
90153-SB6-003 |
US $1.47 |
||
|
30
|
30
92301-06012-0A BoltRECESSED, 6X12 |
92301-06012-0A |
from US $0.52 |
||
|
31
|
31
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
32
|
32
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
33
|
33
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
34
|
34
93404-060-160-8 Bolt-washer6X16 |
93404-060-160-8 |
from US $0.52 |
||
|
35
|
35
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
36
|
36
98200-30750 FuseBLADE(7.5A) |
98200-30750 |
from US $0.55 |
||
|
37
|
37
98200-31000 FuseBLADE (10A) |
98200-31000 |
from US $0.52 |
||
|
38
|
38
98200-31500 FuseBLADE (15A) |
98200-31500 |
from US $0.52 |
||
|
39
|
39
98200-32000 FuseBLADE (20A) |
98200-32000 |
from US $0.52 |
