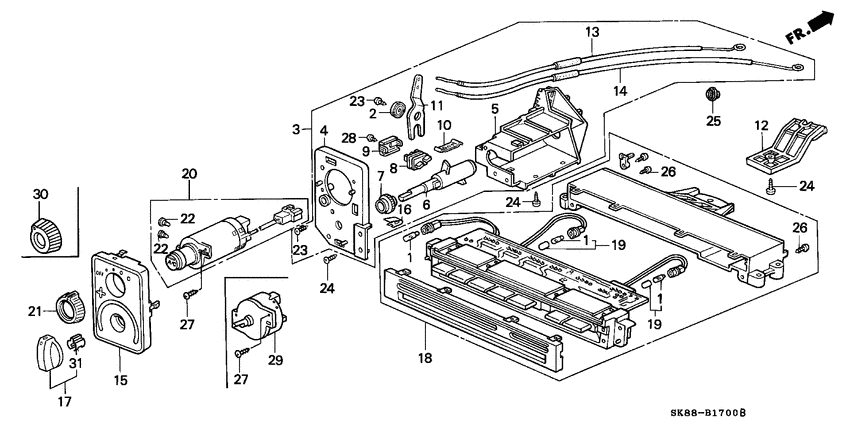

Heater control Diagram Honda INTEGRA

Year
1993
Model code
INTEGRA
Sales region
General
Engine
B18A
transmission
4AT
Number of doors
4
grade
LS
area code
KD
left-hand drive
+
sunroof
+

Difficulties in parts search?

Parts list
Heater control

Difficulties in parts search?

Heater control
Description OEM Part # Price
1
1

35505-692-003

Bulb

14V 1.4W

35505-692-003

from US $2.07

2
2
77671-SE3-003
Washer

77671-SE3-003

3
3
79510-SK7-A00
Control comp.

79510-SK7-A00

4
4
79511-SK7-A00
Plate

79511-SK7-A00

5
5
79512-SK7-A00
Case

79512-SK7-A00

6
6
79513-SK7-A00
Link assy

79513-SK7-A00

7
7
79514-SK7-000
Plate

79514-SK7-000

8
8
79515-SK7-010
Lever

79515-SK7-010

9
9
79516-SK7-000
Stopper

79516-SK7-000

10
10
79517-SK7-000
Spring

79517-SK7-000

11
11
79518-SK7-A00
Lever

79518-SK7-A00

12
12
79537-SK7-A01
Plate

79537-SK7-A01

13
13
79542-SK7-A00
Cable

79542-SK7-A00

14
14
79544-SK7-A00
Cable

79544-SK7-A00

15
15
79550-SK7-A01
Illumination assy.

79550-SK7-A01

16
16
79561-SK7-000
Spring

79561-SK7-000

17
17
79582-SK7-000
Knob

79582-SK7-000

18
18
79620-SK7-A03
Switch assy

79620-SK7-A03

19
19
79629-SR3-003
Bulb assy

79629-SR3-003

23
23

90101-SA4-000

Screw

TAPPING, 4X12

90101-SA4-000

US $0.80

replacement
23
23

93913-14280

Screw

TAPPING, 4X12 (PO)

93913-14280

from US $0.37

24
24

90102-SA4-000

Screw

TAPPING, 4X16

90102-SA4-000

US $0.80

replacement
24
24

93913-14480

Screw

TAPPING, 4X16 (PO)

93913-14480

from US $0.37

25
25
90689-SD2-000
Grommet

90689-SD2-000

26
26

93901-22220

Screw

TAPPING, 3X10

93901-22220

from US $0.37

27
27

93903-22380

Screw

TAPPING, 3X12

93903-22380

from US $0.41

28
28
93903-32280
Screw

93903-32280

29
29
79570-SK7-003
Switch assy

79570-SK7-003

30
30
79583-SK7-003
Knob

79583-SK7-003

31
31
79585-SK7-000
Spring

79585-SK7-000
