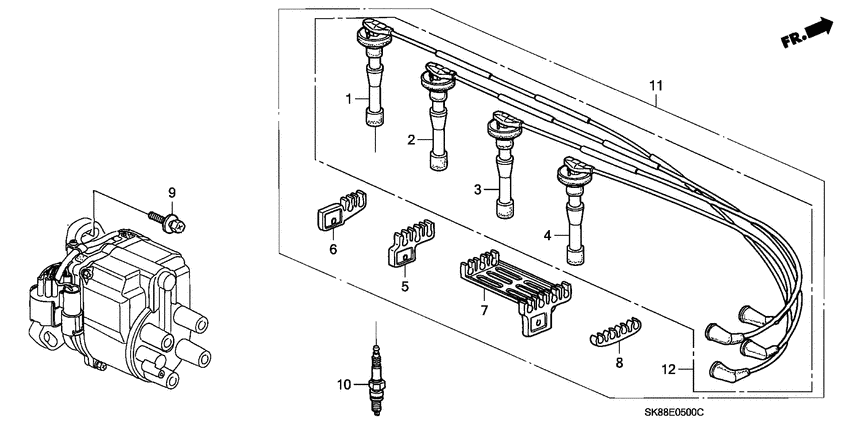

High tension cord/ spark plug Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32701-PR4-A01
Cord comp
|
32701-PR4-A01 |
— | ||
|
2
|
2
32702-PR4-A01
Cord comp
|
32702-PR4-A01 |
— | ||
|
3
|
3
32703-PR4-A01
Cord comp
|
32703-PR4-A01 |
— | ||
|
4
|
4
32704-PR4-A01
Cord comp
|
32704-PR4-A01 |
— | ||
|
5
|
5
32763-PR4-A00
Clamp a
|
32763-PR4-A00 |
— | ||
|
6
|
6
32765-PR4-A00
Clamp b
|
32765-PR4-A00 |
— | ||
|
7
|
7
32766-PR4-A00
Clamp c
|
32766-PR4-A00 |
— | ||
|
8
|
8
32777-695-000 ClampHIGH TENSION CORD |
32777-695-000 |
US $3.73 |
||
|
9
|
9
90003-P01-000 Bolt-washer8X28 |
90003-P01-000 |
from US $3.58 |
||
|
10
|
10
98079-5515G PlugSPARK (KJ16CR-L11) (DENSO) |
98079-5515G |
from US $5.49 |
||
|
10
|
10
98079-5514G PlugSPARK (ZFR5F-11) (NGK) |
98079-5514G |
from US $4.57 |
||
|
10
|
10
98079-5615G PlugSPARK (KJ20CR-L11) (DENSO) |
98079-5615G |
from US $5.31 |
||
|
10
|
10
98079-5614G PlugSPARK (ZFR6F-11) (NGK) |
98079-5614G |
from US $5.20 |
||
|
11
|
11
32722-PR4-A01
Cord comp
|
32722-PR4-A01 |
— | ||
|
12
|
12
32722-PR4-405
Cord comp
|
32722-PR4-405 |
— |
