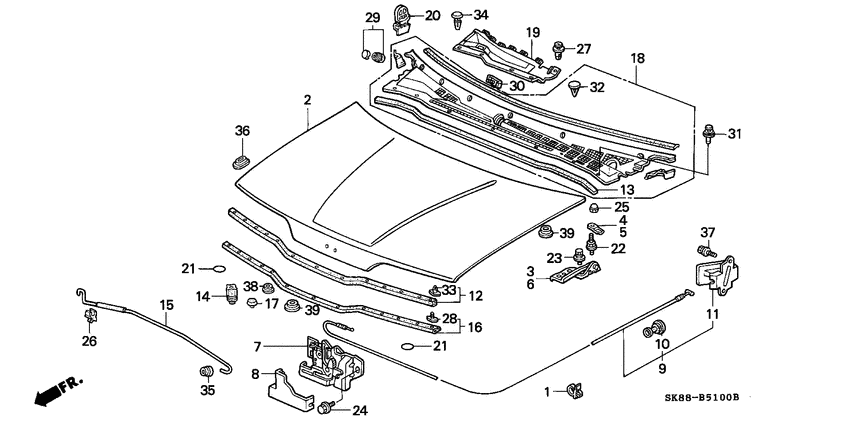

Hood Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17706-SC3-003 ClipFUEL PIPE |
17706-SC3-003 |
from US $2.59 |
||
|
2
|
2
60100-SK7-020ZZ
Hood comp.
|
60100-SK7-020ZZ |
— | ||
|
3
|
3
60120-SK7-000ZZ
Hinge comp
|
60120-SK7-000ZZ |
— | ||
|
4
|
4
60127-SK7-000
Stopper
|
60127-SK7-000 |
— | ||
|
5
|
5
60128-SK7-000
Stopper
|
60128-SK7-000 |
— | ||
|
6
|
6
60170-SK7-000ZZ
Hinge comp
|
60170-SK7-000ZZ |
— | ||
|
7
|
7
74120-SK7-A02 Lock assyHOOD |
74120-SK7-A02 |
US $34.82 |
||
|
8
|
8
74129-SK7-000 CoverHOOD LOCK |
74129-SK7-000 |
US $7.56 |
||
|
9
|
9
74130-SK7-A01ZB
Wire assy.
|
74130-SK7-A01ZB |
— | ||
|
9
|
9
74130-SK7-A01ZA
Wire assy.
|
74130-SK7-A01ZA |
— | ||
|
10
|
10
74134-SH3-003 GrommetHOOD WIRE |
74134-SH3-003 |
US $2.25 |
||
|
11
|
11
74135-SK7-A01ZA Lever compHOOD WIRE *NH167L* |
74135-SK7-A01ZA |
US $12.46 |
||
|
11
|
11
74135-SK7-A01ZD Lever compHOOD WIRE *B44L* |
74135-SK7-A01ZD |
US $11.76 |
||
|
12
|
12
74142-SK7-000
Rubber
|
74142-SK7-000 |
— | ||
|
13
|
13
74143-SK7-000
Rubber
|
74143-SK7-000 |
— | ||
|
14
|
14
74144-SE0-000 CushionHOOD |
74144-SE0-000 |
US $3.42 |
||
|
15
|
15
74145-SK7-010
Stay
|
74145-SK7-010 |
— | ||
|
16
|
16
74146-SK7-003
Seal
|
74146-SK7-003 |
— | ||
|
17
|
17
74177-SD4-000 Cushion aHOOD |
74177-SD4-000 |
US $5.18 |
||
|
18
|
18
74200-SK7-A01
Cowl top assy.
|
74200-SK7-A01 |
— | ||
|
19
|
19
74213-SK7-A02
Cover
|
74213-SK7-A02 |
— | ||
|
20
|
20
74218-SK7-A00
Valve
|
74218-SK7-A00 |
— | ||
|
21
|
21
85268-SA0-000 ProtectionTAILGATE, 20MM (CIRCLE) |
85268-SA0-000 |
from US $1.63 |
||
|
22
|
22
90102-SB3-000
Bolt
|
90102-SB3-000 |
— | ||
|
23
|
23
90127-SA0-000 Bolt-washer6X16 |
90127-SA0-000 |
US $0.59 |
||
|
24
|
24
90146-SA7-000
Bolt-washer
|
90146-SA7-000 |
— | ||
| replacement | |||||
|
24
|
24
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
25
|
25
90307-SD2-A00
Nut
|
90307-SD2-A00 |
— | ||
|
26
|
26
90620-SK7-013
Holder
|
90620-SK7-013 |
— | ||
|
27
|
27
90657-SA6-003 ClipFR. INNER COWL |
90657-SA6-003 |
from US $3.63 |
||
|
28
|
28
90664-671-003 ClipCANOE |
90664-671-003 |
from US $3.40 |
||
|
29
|
29
91501-SK7-013 Cap assy.COWLTOP |
91501-SK7-013 |
US $2.38 |
||
|
30
|
30
91502-SK7-013 GrommetCOWL TOP |
91502-SK7-013 |
US $2.38 |
||
|
31
|
31
91510-SJ6-003ZA
Rivet
|
91510-SJ6-003ZA |
— | ||
|
32
|
32
91511-SK7-003 ClipRR. SEAL |
91511-SK7-003 |
US $2.31 |
||
|
33
|
33
91513-SE0-003 ClipHOOD SEAL |
91513-SE0-003 |
from US $2.10 |
||
|
34
|
34
91513-SH3-003 Clip cHOOD |
91513-SH3-003 |
US $2.77 |
||
|
35
|
35
91604-SD2-013 GrommetHOOD STAY |
91604-SD2-013 |
from US $1 |
||
|
37
|
37
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
38
|
38
95550-15000 PlugBLIND, 15MM |
95550-15000 |
US $1.55 |
||
|
39
|
39
95550-25000 PlugBLIND, 25MM |
95550-25000 |
US $2.07 |
||
