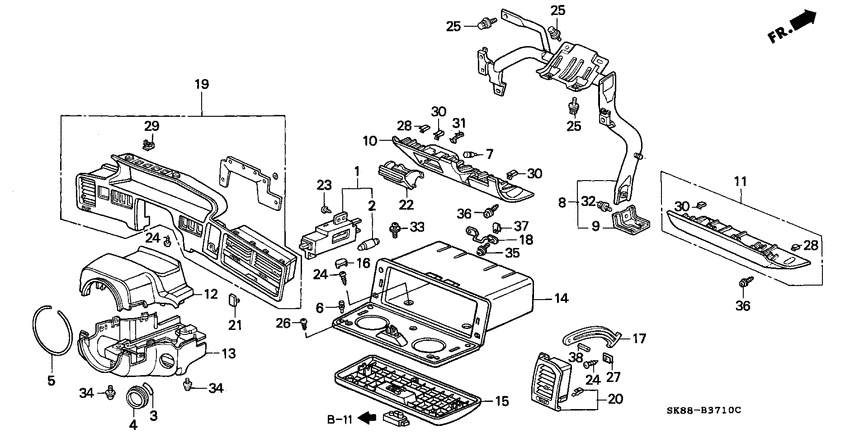

Instrument garnish Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34254-SK7-A01
Lamp assy.
|
34254-SK7-A01 |
— | ||
|
2
|
2
34295-538-003 Bulb12V 5W) (DAIICHI |
34295-538-003 |
US $4.96 |
||
| replacement | |||||
|
2
|
2
34295-SD4-003 Bulb12V 5W.K |
34295-SD4-003 |
from US $1.98 |
||
|
3
|
3
53231-SB2-000 LabelIGNITION SWITCH |
53231-SB2-000 |
US $1.82 |
||
|
4
|
4
53235-SA5-010
Ring
|
53235-SA5-010 |
— | ||
|
5
|
5
53239-SB2-000
Clip
|
53239-SB2-000 |
— | ||
|
6
|
6
66418-SB2-000
Stopper
|
66418-SB2-000 |
— | ||
|
7
|
7
66418-579-000 StopperGLOVE BOX LID |
66418-579-000 |
US $8.40 |
||
|
8
|
8
74250-SK7-A00
Beam comp
|
74250-SK7-A00 |
— | ||
|
9
|
9
74258-SK7-A00
Bracket
|
74258-SK7-A00 |
— | ||
|
10
|
10
77212-SK7-A02ZB
Cover
|
77212-SK7-A02ZB |
— | ||
|
10
|
10
77212-SK7-A02ZA
Cover
|
77212-SK7-A02ZA |
— | ||
|
11
|
11
77220-SK7-A03ZB
Cover assy.
|
77220-SK7-A03ZB |
— | ||
|
11
|
11
77220-SK7-A03ZA
Cover assy.
|
77220-SK7-A03ZA |
— | ||
|
12
|
12
77351-SK7-A02ZA
Cover
|
77351-SK7-A02ZA |
— | ||
|
13
|
13
77361-SK7-A04ZA
Cover
|
77361-SK7-A04ZA |
— | ||
|
14
|
14
77501-SK7-A02
Box
|
77501-SK7-A02 |
— | ||
|
15
|
15
77502-SK7-A01ZA
Lid
|
77502-SK7-A01ZA |
— | ||
|
15
|
15
77502-SK7-A01ZB
Lid
|
77502-SK7-A01ZB |
— | ||
|
16
|
16
77503-SK7-000
Lid
|
77503-SK7-000 |
— | ||
|
17
|
17
77504-SK7-020
Arm
|
77504-SK7-020 |
— | ||
|
18
|
18
77542-SK7-010
Striker
|
77542-SK7-010 |
— | ||
|
19
|
19
77601-SK7-A01ZA
Panel comp
|
77601-SK7-A01ZA |
— | ||
|
20
|
20
77640-SK7-A01ZB
Outlet assy
|
77640-SK7-A01ZB |
— | ||
|
20
|
20
77640-SK7-A01ZA
Outlet assy
|
77640-SK7-A01ZA |
— | ||
|
21
|
21
77724-SK7-A01
Lid
|
77724-SK7-A01 |
— | ||
|
22
|
22
77755-SK7-A02ZB
Pocket comp.
|
77755-SK7-A02ZB |
— | ||
|
22
|
22
77755-SK7-A02ZA
Pocket comp.
|
77755-SK7-A02ZA |
— | ||
|
23
|
23
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
23
|
23
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
24
|
24
90102-SA4-000 ScrewTAPPING, 4X16 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
24
|
24
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
25
|
25
90105-634-000 Bolt-washer (8x20)8x20 |
90105-634-000 |
US $3.02 |
||
|
26
|
26
90135-SK7-000 ScrewTAPPING, 4X10 (PO) |
90135-SK7-000 |
US $1.12 |
||
|
27
|
27
90305-SA0-000 NutFLOATING, 4MM |
90305-SA0-000 |
from US $3.56 |
||
|
28
|
28
90666-SD4-003 ClipFITTING |
90666-SD4-003 |
from US $1.92 |
||
|
29
|
29
90666-SK7-A01
Clip A
|
90666-SK7-A01 |
— | ||
|
30
|
30
90667-SK7-A02 Clip bLOWER COVER |
90667-SK7-A02 |
US $2.31 |
||
|
31
|
31
90671-SK7-A00 ClipCOIN POCKET |
90671-SK7-A00 |
US $2.45 |
||
|
32
|
32
93404-080-160-8 Bolt-washer8X16 |
93404-080-160-8 |
from US $0.67 |
||
|
33
|
33
93891-040-120-7 Screw-washer4X12 |
93891-040-120-7 |
from US $0.44 |
||
|
34
|
34
93891-050-100-7 Screw-washer5X10 |
93891-050-100-7 |
from US $0.44 |
||
|
35
|
35
93894-040-160-7 Screw-washer4X16 |
93894-040-160-7 |
US $0.44 |
||
|
36
|
36
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
||
|
37
|
37
94071-08080 Nut-washer8MM |
94071-08080 |
from US $0.52 |
||
|
38
|
38
94305-40162 PinSPRING, 4X16 |
94305-40162 |
from US $0.81 |
||
