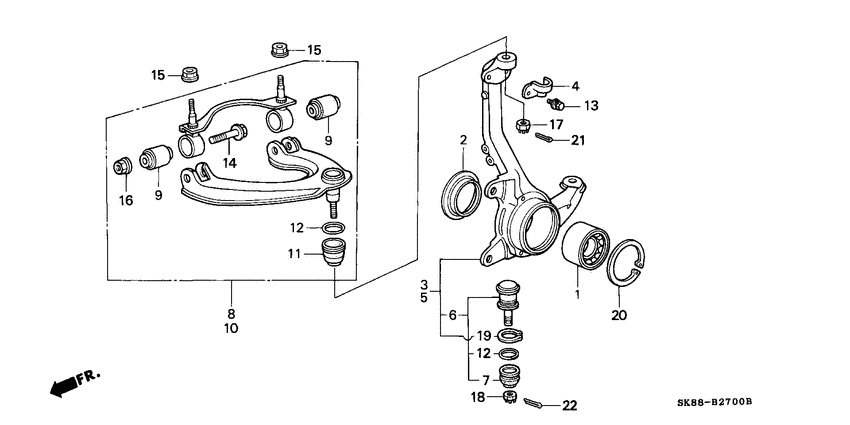

Knuckle Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44300-SF1-004 Bearing assyFR. HUB (KOYO SEIKO) |
44300-SF1-004 |
US $81.92 |
||
|
1
|
1
44300-SF1-008
Bearing assy
|
44300-SF1-008 |
— | ||
|
2
|
2
44348-SK7-000
Ring
|
44348-SK7-000 |
— | ||
|
3
|
3
51210-SK7-040 Knuckle compR. FR. |
51210-SK7-040 |
US $266.24 |
||
|
4
|
4
51213-SE0-000
Protector
|
51213-SE0-000 |
— | ||
|
5
|
5
51215-SK7-040 Knuckle compL. FR. |
51215-SK7-040 |
US $266.24 |
||
|
6
|
6
51220-SK7-013
Joint comp
|
51220-SK7-013 |
— | ||
|
7
|
7
51225-SR3-003 BootLOWER BALL DUST (MUSASHI) |
51225-SR3-003 |
US $21.08 |
||
|
8
|
8
51450-SK7-043
Arm assy.
|
51450-SK7-043 |
— | ||
|
9
|
9
51455-SK7-003
Bush
|
51455-SK7-003 |
— | ||
|
10
|
10
51460-SK7-043
Arm assy.
|
51460-SK7-043 |
— | ||
|
11
|
11
51464-SK7-003 BootUPPER BALL JOINT |
51464-SK7-003 |
US $12.74 |
||
|
12
|
12
52338-SL0-003 CirclipCONTROL ARM |
52338-SL0-003 |
US $4.37 |
||
|
13
|
13
90114-SB0-000 Bolt-washer6X12 |
90114-SB0-000 |
US $2.59 |
||
|
14
|
14
90185-SH3-000
Bolt
|
90185-SH3-000 |
— | ||
|
15
|
15
90215-SB0-003 NutSELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
90215-SB0-003 |
from US $3.20 |
||
|
16
|
16
90306-SB2-013 NutSELF-LOCK, 10MM (CLINCH) |
90306-SB2-013 |
US $3.02 |
||
|
17
|
17
90321-SE0-000 NutUPPER BALL PIN, 10MM |
90321-SE0-000 |
US $2.60 |
||
|
18
|
18
90363-SF1-000 NutCASTLE, 12MM |
90363-SF1-000 |
from US $3.48 |
||
|
19
|
19
90653-SB0-000
Circlip
|
90653-SB0-000 |
— | ||
|
20
|
20
90681-SF1-000
Circlip
|
90681-SF1-000 |
— | ||
|
21
|
21
94201-20180 PinSPLIT, 2.0X18 |
94201-20180 |
from US $0.37 |
||
| replacements | |||||
|
21
|
21
94201-29220
Pin
|
94201-29220 |
— | ||
|
21
|
21
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
21
|
21
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
22
|
22
94201-30200 PinSPLIT, 3.0X20 |
94201-30200 |
from US $0.23 |
||
| replacements | |||||
|
22
|
22
9420130280 Pin, split, 3.0x28 |
9420130280 |
from US $0.44 |
||
|
22
|
22
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
