	Description	OEM Part #	Price
1	1 22741-PH0-000 Pipe	22741-PH0-000	—
2	2 24423-PA9-000 Pin MANUAL VALVE	24423-PA9-000	US $2.10
3	3 24425-639-000 Roller MANUAL VALVE	24425-639-000	US $2.10
4	4 24461-PA9-010 Spring	24461-PA9-010	—
5	5 24471-PN6-000 Roller 6X16	24471-PN6-000	US $2.45
6	6 25145-PA9-010 Shaft OIL PUMP GEAR	25145-PA9-010	US $11.05
7	7 27000-PR0-850 Body assy	27000-PR0-850	—
8	8 27112-PR0-850 Plate	27112-PR0-850	—
9	9 27122-PC9-000 Cover SHIFT VALVE	27122-PC9-000	US $2.73
10	10 27122-PX4-000 Cap	27122-PX4-000	—
11	11 27256-PA9-000 Valve	27256-PA9-000	—
12	12 27257-PG4-000 Spring	27257-PG4-000	—
13	13 27259-PK4-000 Spring	27259-PK4-000	—
14	14 27263-PA9-000 Seat Valve Sping 1.0mm VALVE SPRING, 1.0MM	27263-PA9-000	US $2.66
15	15 27312-PR0-000 Plate	27312-PR0-000	—
16	16 27342-PR0-000 Gear	27342-PR0-000	—
17	17 27351-PR0-000 Shaft comp.	27351-PR0-000	—
18	18 27415-PC9-010 Valve	27415-PC9-010	—
19	19 27418-PR0-020 Spring	27418-PR0-020	—
20	20 27419-PC9-010 SEAT, VALVE SPRING VALVE SPRING	27419-PC9-010	US $2.10
21	21 27421-PR0-000 Valve	27421-PR0-000	—
22	22 27521-PL5-J00 Valve	27521-PL5-J00	—
23	23 27523-PL5-J00 Spring	27523-PL5-J00	—
24	24 27531-PR0-000 Valve	27531-PR0-000	—
25	25 27542-PR0-000 Spring	27542-PR0-000	—
26	26 27563-PR0-000 Cover	27563-PR0-000	—
27	27 27572-PR0-000 Piston	27572-PR0-000	—
28	28 27581-PR0-850 Spring	27581-PR0-850	—
29	29 27621-PK4-010 Valve	27621-PK4-010	—
30	30 27623-PK4-000 Spring	27623-PK4-000	—
31	31 27641-PR0-000 Valve	27641-PR0-000	—
32	32 27642-PR0-000 Sleeve	27642-PR0-000	—
33	33 27645-PL1-000 Cap LOCK UP CONTROL	27645-PL1-000	US $3.78
34	34 27653-PF4-000 Cap CLUTCH PRESSURE CONTROL VALVE	27653-PF4-000	US $2.17
35	35 27728-PF4-000 Cap REVERSE CONTROL VALVE	27728-PF4-000	US $1.54
36	36 27752-PR0-850 Spring	27752-PR0-850	—
37	37 27800-PR0-851 Body assy	27800-PR0-851	—
38	38 90007-PA9-000 Bolt FLANGE, 6X30	90007-PA9-000	US $1.94
	replacement
38	38 95701-060-300-8 Bolt FLANGE, 6X30	95701-060-300-8	from US $0.74
39	39 90433-639-000 Washer LOCK, 6MM	90433-639-000	US $7.38
40	40 90451-PC9-000 Washer THRUST, 14MM	90451-PC9-000	from US $2.44
41	41 90741-PA9-000 Key WOODRUFF, 3MM	90741-PA9-000	US $2.10
42	42 91101-PF4-003 Roller 3.5X21.8	91101-PF4-003	from US $1.19
43	43 91317-PA9-004 O-ring 33.2X2.4 (ARAI)	91317-PA9-004	US $3.22
43	43 91317-PA9-003 O-ring 33.2X2.4 (NOK)	91317-PA9-003	from US $2.52
44	44 91324-PF4-004 O-ring 28.3X2.4 (NOK)	91324-PF4-004	from US $1.78
45	45 91326-PF4-004 O-ring 24.4X2.4 (NOK)	91326-PF4-004	from US $1.68
46	46 91704-PF4-000 Dowel pin 8X40	91704-PF4-000	from US $2.24
47	47 93301-050-120-A Bolt HEX., 5X12	93301-050-120-A	from US $0.38
48	48 93301-060-300-H Bolt HEX., 6X30	93301-060-300-H	from US $0.52
49	49 93301-060-600-H Bolt HEX., 6X60	93301-060-600-H	US $0.59
50	50 94101-05800 Washer PLAIN, 5MM	94101-05800	from US $0.37
51	51 94201-16120 Pin SPLIT, 1.6X12	94201-16120	from US $0.37
52	52 94301-08140 Dowel pin 8X14	94301-08140	from US $0.89
53	53 94510-14000 Circlip EXTERNAL, 14MM	94510-14000	from US $0.22
54	54 94520-40000 Circlip INTERNAL, 40MM	94520-40000	from US $1.04
55	55 95701-060-380-7 Bolt FLANGE, 6X38	95701-060-380-7	US $0.59
56	56 95701-060-600-8 Bolt FLANGE, 6X60	95701-060-600-8	from US $0.74
57	57 95701-080-320-8 Bolt FLANGE, 8X32	95701-080-320-8	from US $0.81
58	58 96211-07000 Ball STEEL, #7 (7/32)	96211-07000	from US $0.15

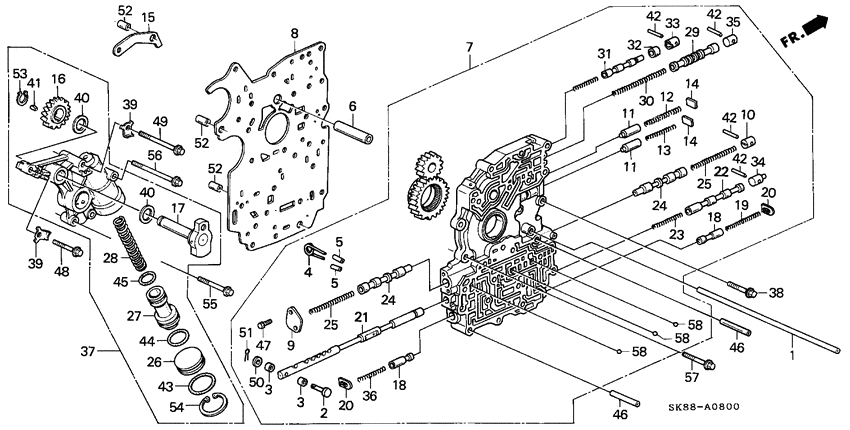

Main valve body Diagram Honda INTEGRA General 7072517-550294

Main valve body Diagram Honda INTEGRA General 7072517-550294
