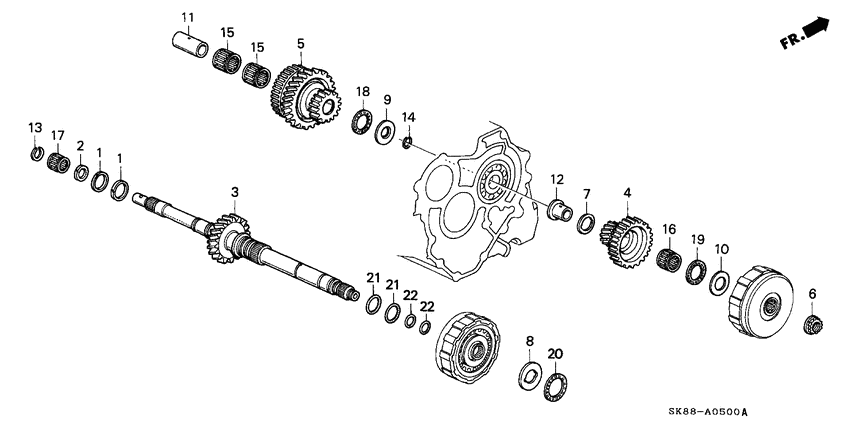

Mainshaft Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22814-PF4-003 RingSEALING, 35MM |
22814-PF4-003 |
US $12.93 |
||
|
2
|
2
22814-PK4-003 RingSEALING, 29MM |
22814-PK4-003 |
US $13.16 |
||
|
3
|
3
23210-PR0-A00
Mainshaft comp.
|
23210-PR0-A00 |
— | ||
|
4
|
4
23411-PR0-850
Gear
|
23411-PR0-850 |
— | ||
|
5
|
5
23461-PR0-A00
Gear
|
23461-PR0-A00 |
— | ||
|
6
|
6
90201-PL4-000 NutFLANGE, 19MM |
90201-PL4-000 |
US $4.13 |
||
|
7
|
7
90406-PF4-000
Washer
|
90406-PF4-000 |
— | ||
|
8
|
8
90407-PL4-000
Washer
|
90407-PL4-000 |
— | ||
|
9
|
9
90417-PC9-000
Washer
|
90417-PC9-000 |
— | ||
|
10
|
10
90422-PA9-000
Washer
|
90422-PA9-000 |
— | ||
|
11
|
11
90502-PS5-000 CollarMAINSHAFT FOURTH GEAR |
90502-PS5-000 |
US $14.72 |
||
|
12
|
12
90508-PF4-000 Collar26MM |
90508-PF4-000 |
US $12.46 |
||
|
13
|
13
90603-PF4-003 CirclipEXTERNAL, 23MM |
90603-PF4-003 |
US $2.31 |
||
|
14
|
14
90613-PA9-000 RingSNAP, 26MM |
90613-PA9-000 |
US $2 |
||
|
15
|
15
91011-PG4-003 BearingNEEDLE, 32X38X20 (NTN) |
91011-PG4-003 |
US $31.45 |
||
|
16
|
16
91012-PR0-003 BearingNEEDLE, 32X35X18.5 |
91012-PR0-003 |
US $7.70 |
||
|
17
|
17
91017-PK4-003 BearingNEEDLE, 23X29X20 |
91017-PK4-003 |
US $7.98 |
||
|
18
|
18
91018-PA9-003
Bearing
|
91018-PA9-003 |
— | ||
| replacement | |||||
|
18
|
18
91018-P56-003 BearingTHRUST NEEDLE, 32X44X2 (NTN) |
91018-P56-003 |
from US $5.04 |
||
|
19
|
19
91019-PA9-013 BearingTHRUST NEEDLE, 31X47X2 |
91019-PA9-013 |
from US $7 |
||
|
20
|
20
91031-PG4-003 BearingTHRUST NEEDLE, 39X54X2.5 |
91031-PG4-003 |
US $6.58 |
||
|
21
|
21
91307-PA9-003 O-ring 31.2X1.9 (ARAI)31.2X1.9 (ARAI) |
91307-PA9-003 |
from US $2.44 |
||
|
21
|
21
91307-PA9-004 O-ring31.2X1.9 (NOK) |
91307-PA9-004 |
US $3.93 |
||
| replacement | |||||
|
21
|
21
91307-PA9-003 O-ring 31.2X1.9 (ARAI)31.2X1.9 (ARAI) |
91307-PA9-003 |
from US $2.44 |
||
|
22
|
22
91308-PA9-003 O-ring19.8X1.9 (ARAI) |
91308-PA9-003 |
from US $2.15 |
||
|
22
|
22
91308-PA9-004 O-ring19.8X1.9 (NOK) |
91308-PA9-004 |
US $4.15 |
||
| replacement | |||||
|
22
|
22
91308-PA9-003 O-ring19.8X1.9 (ARAI) |
91308-PA9-003 |
from US $2.15 |
||
