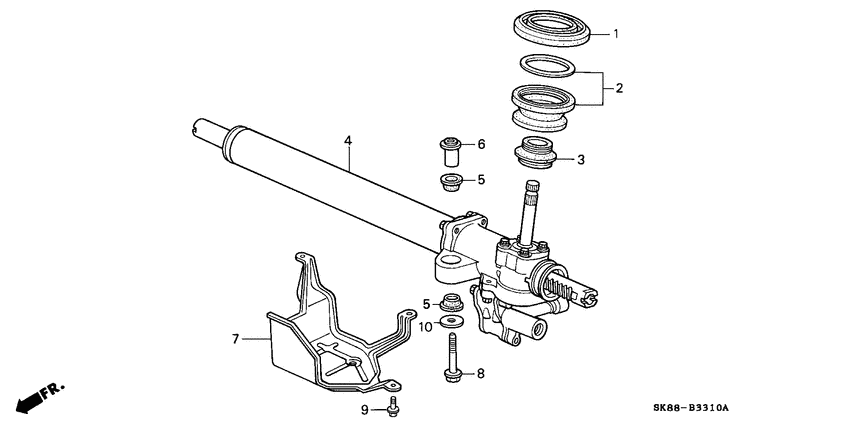

P.s. gear box Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53501-SK7-000
Grommet a
|
53501-SK7-000 |
— | ||
|
2
|
2
53502-SK7-000
Grommet b
|
53502-SK7-000 |
— | ||
|
3
|
3
53503-SK7-950
Grommet c
|
53503-SK7-950 |
— | ||
|
4
|
4
53601-SK7-A56
Box assy
|
53601-SK7-A56 |
— | ||
|
5
|
5
53685-SH3-000 BushSTEERING GEAR BOX MOUNTING |
53685-SH3-000 |
US $4.07 |
||
|
6
|
6
53686-SH3-010 CollarSTEERING GEAR BOX MOUNTING |
53686-SH3-010 |
US $5.92 |
||
|
7
|
7
53692-SK7-A51
Guard
|
53692-SK7-A51 |
— | ||
|
8
|
8
90108-SH3-003 BoltGEAR BOX MOUNTING (10X55) |
90108-SH3-003 |
US $4.88 |
||
|
9
|
9
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
10
|
10
94103-10800 WasherPLAIN, 10MM |
94103-10800 |
from US $0.52 |
