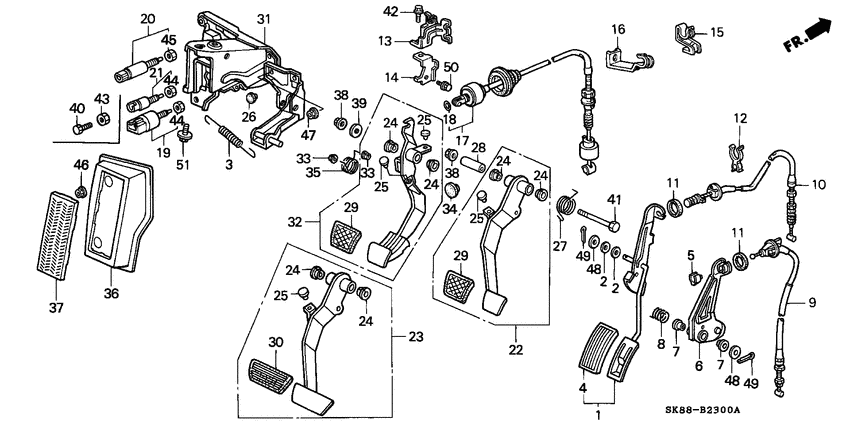

Pedal Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-SK7-A90
Pedal comp
|
17800-SK7-A90 |
— | ||
|
2
|
2
17812-SA7-010 WasherACCELERATOR PEDAL |
17812-SA7-010 |
from US $2 |
||
|
3
|
3
17814-SK7-A90
Spring
|
17814-SK7-A90 |
— | ||
|
4
|
4
17816-SK7-000 CoverACCELERATOR PEDAL |
17816-SK7-000 |
US $10.51 |
||
|
5
|
5
17855-SD4-010
Bush
|
17855-SD4-010 |
— | ||
|
6
|
6
17856-SK7-A72
Arm
|
17856-SK7-A72 |
— | ||
|
7
|
7
17858-SA5-000
Bush
|
17858-SA5-000 |
— | ||
|
8
|
8
17863-SH3-A30
Spring
|
17863-SH3-A30 |
— | ||
|
9
|
9
17880-SK7-A04
Wire
|
17880-SK7-A04 |
— | ||
|
10
|
10
17910-SK7-A03
Wire
|
17910-SK7-A03 |
— | ||
|
11
|
11
17921-SA4-730 SealTHROTTLE CABLE |
17921-SA4-730 |
US $5.86 |
||
|
12
|
12
17926-SK7-A00 ClipTHROTTLE WIRE |
17926-SK7-A00 |
from US $2.59 |
||
|
13
|
13
17935-SK7-A02
Clamp
|
17935-SK7-A02 |
— | ||
|
14
|
14
17936-SK7-A00
Base
|
17936-SK7-A00 |
— | ||
|
19
|
19
36750-SE0-013
Switch assy
|
36750-SE0-013 |
— | ||
|
23
|
23
46500-SK7-A80
Pedal comp
|
46500-SK7-A80 |
— | ||
|
24
|
24
46504-679-300 BushPEDAL |
46504-679-300 |
from US $5.37 |
||
|
25
|
25
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.59 |
||
|
26
|
26
46505-SA7-000 PadPEDAL STOPPER |
46505-SA7-000 |
US $3.92 |
||
|
27
|
27
46530-SH3-000
Spring
|
46530-SH3-000 |
— | ||
|
28
|
28
46535-692-000 CollarPEDAL |
46535-692-000 |
US $6.86 |
||
|
30
|
30
46545-SA5-980 CoverBRAKE PEDAL |
46545-SA5-980 |
from US $7.99 |
||
|
31
|
31
46590-SK7-A91
Bracket
|
46590-SK7-A91 |
— | ||
|
36
|
36
46991-SK7-A00
Bracket
|
46991-SK7-A00 |
— | ||
|
37
|
37
46992-SH3-A01
Plate
|
46992-SH3-A01 |
— | ||
|
38
|
38
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $2.74 |
||
|
41
|
41
92201-10070-0J BoltHEX., 10X70 |
92201-10070-0J |
US $1.04 |
||
|
42
|
42
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
44
|
44
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
46
|
46
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
47
|
47
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
48
|
48
94102-10800 WasherPLAIN, 10MM |
94102-10800 |
from US $0.44 |
||
|
49
|
49
94201-25180 PinSPLIT, 2.5X18 |
94201-25180 |
from US $0.37 |
||
|
50
|
50
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
51
|
51
95701-080-140-8 BoltFLANGE, 8X14 |
95701-080-140-8 |
from US $0.62 |
