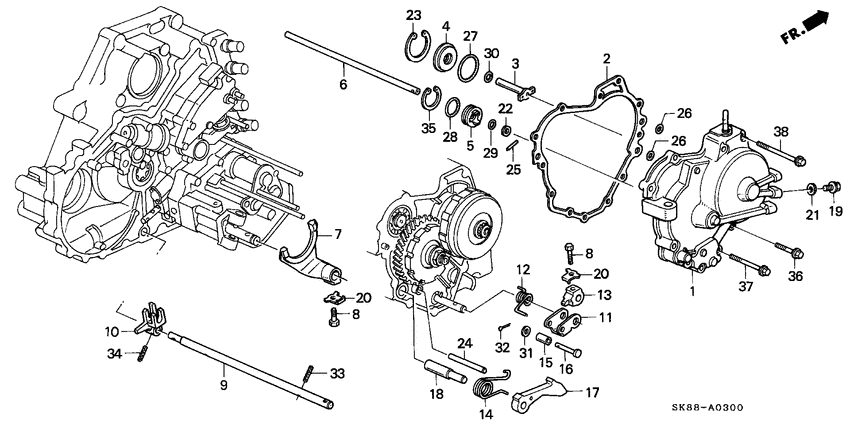

R. side cover Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21240-PR0-010
Cover comp.
|
21240-PR0-010 |
— | ||
|
2
|
2
21812-PR0-010
Packing
|
21812-PR0-010 |
— | ||
|
3
|
3
22710-PF4-010
Pipe a
|
22710-PF4-010 |
— | ||
|
4
|
4
22713-PC9-010 Guide aFEED PIPE |
22713-PC9-010 |
from US $2.38 |
||
|
5
|
5
22721-PA9-003 FlangeFEED PIPE |
22721-PA9-003 |
US $7.56 |
||
|
6
|
6
22722-PL4-000 Pipe cFEED |
22722-PL4-000 |
US $9.94 |
||
|
7
|
7
24111-PR0-000
Fork
|
24111-PR0-000 |
— | ||
|
8
|
8
24282-634-000 BoltSHAFT FORK SETTING |
24282-634-000 |
from US $1.40 |
||
|
9
|
9
24411-PR0-300
Shaft
|
24411-PR0-300 |
— | ||
|
10
|
10
24421-PR0-300
Lever
|
24421-PR0-300 |
— | ||
|
11
|
11
24532-PN6-003 LeverPARKING BRAKE |
24532-PN6-003 |
from US $8.96 |
||
|
12
|
12
24535-PA9-010
Spring
|
24535-PA9-010 |
— | ||
|
13
|
13
24539-PA9-003
Stopper
|
24539-PA9-003 |
— | ||
|
13
|
13
24538-PA9-003 StopperPARKING BRAKE (2) |
24538-PA9-003 |
US $29.77 |
||
|
13
|
13
24537-PA9-003
Stopper
|
24537-PA9-003 |
— | ||
|
14
|
14
24552-PR0-000
Spring
|
24552-PR0-000 |
— | ||
|
15
|
15
24553-PN6-000 RollerPARKING BRAKE |
24553-PN6-000 |
from US $2.59 |
||
|
16
|
16
24555-PN6-000 PinROLLER, 6MM |
24555-PN6-000 |
from US $3.36 |
||
|
17
|
17
24561-PR0-013
Pawl
|
24561-PR0-013 |
— | ||
|
18
|
18
24562-PA9-000
Shaft
|
24562-PA9-000 |
— | ||
|
19
|
19
90024-612-000 BoltSEALING, 8MM |
90024-612-000 |
from US $1.78 |
||
|
20
|
20
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
21
|
21
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.92 |
||
|
22
|
22
90507-PA9-000 Collar8X11 |
90507-PA9-000 |
US $1.54 |
||
|
23
|
23
90601-PC9-860 CirclipINTERNAL, 38MM |
90601-PC9-860 |
US $2.24 |
||
|
24
|
24
90701-639-000 Dowel pin8X55 |
90701-639-000 |
US $2.59 |
||
|
25
|
25
90703-PA9-003 Roller2X19.8 |
90703-PA9-003 |
US $1.26 |
||
|
26
|
26
91301-PC9-004 O-ring7.7X2.3 (NOK) |
91301-PC9-004 |
US $3.01 |
||
| replacement | |||||
|
26
|
26
91301-PC9-003 O-ring7.7X2.3 (ARAI) |
91301-PC9-003 |
from US $2 |
||
|
26
|
26
91301-PC9-003 O-ring7.7X2.3 (ARAI) |
91301-PC9-003 |
from US $2 |
||
|
27
|
27
91305-PC9-004
O-ring
|
91305-PC9-004 |
— | ||
| replacement | |||||
|
27
|
27
91305-PC9-003 O-ring34X1.9 (ARAI) |
91305-PC9-003 |
from US $2.74 |
||
|
27
|
27
91305-PC9-003 O-ring34X1.9 (ARAI) |
91305-PC9-003 |
from US $2.74 |
||
|
28
|
28
91308-PA9-003 O-ring19.8X1.9 (ARAI) |
91308-PA9-003 |
from US $2.15 |
||
|
28
|
28
91308-PA9-004 O-ring19.8X1.9 (NOK) |
91308-PA9-004 |
US $4.15 |
||
| replacement | |||||
|
28
|
28
91308-PA9-003 O-ring19.8X1.9 (ARAI) |
91308-PA9-003 |
from US $2.15 |
||
|
29
|
29
91311-PA9-003 O-ring7.7X1.9 (ARAI) |
91311-PA9-003 |
US $3.32 |
||
| replacement | |||||
|
29
|
29
91311-PA9-004 O-ring7.7X1.9 (NOK) |
91311-PA9-004 |
from US $1.78 |
||
|
29
|
29
91311-PA9-004 O-ring7.7X1.9 (NOK) |
91311-PA9-004 |
from US $1.78 |
||
|
30
|
30
91314-PC9-004 O-ring8.5X1.9 (NOK) |
91314-PC9-004 |
from US $1.48 |
||
|
30
|
30
91314-PC9-003 O-ring8.5X1.9 (ARAI) |
91314-PC9-003 |
from US $1.63 |
||
| replacement | |||||
|
30
|
30
91314-PC9-004 O-ring8.5X1.9 (NOK) |
91314-PC9-004 |
from US $1.48 |
||
|
31
|
31
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
32
|
32
94201-16120 PinSPLIT, 1.6X12 |
94201-16120 |
from US $0.37 |
||
|
33
|
33
94305-40162 PinSPRING, 4X16 |
94305-40162 |
from US $0.81 |
||
|
34
|
34
94305-50182 PinSPRING, 5X18 |
94305-50182 |
from US $0.81 |
||
|
35
|
35
94520-26000 CirclipINTERNAL, 26MM |
94520-26000 |
from US $0.81 |
||
|
36
|
36
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
37
|
37
95701-060-450-8 BoltFLANGE, 6X45 |
95701-060-450-8 |
from US $0.74 |
||
|
38
|
38
95701-060-550-8 BoltFLANGE, 6X55 |
95701-060-550-8 |
from US $0.81 |
||
