	Description	OEM Part #	Price
1	1 42200-SE0-004 Bearing assy	42200-SE0-004	—
1	1 42200-SE0-008 Bearing assy	42200-SE0-008	—
2	2 42324-SB2-020 Washer	42324-SB2-020	—
3	3 42326-SB2-000 Cap	42326-SB2-000	—
	replacement
3	3 42326-SFA-000 Cap HUB UNIT	42326-SFA-000	from US $6.19
4	4 42412-SB2-020 Ring	42412-SB2-020	—
5	5 42510-SR3-G00 Disk RR. BRAKE	42510-SR3-G00	US $116.48
6	6 43022-SR3-000 Pad set RR.	43022-SR3-000	US $88.32
7	7 43210-SK7-043 Caliper assy	43210-SK7-043	—
8	8 43214-SD2-931 Cover PISTON DUST	43214-SD2-931	US $5.33
9	9 43215-SH3-931 Piston assy.	43215-SH3-931	from US $30.33
10	10 43218-SD2-931 Cup	43218-SD2-931	from US $2.45
11	11 43223-SD2-932 BEARING A	43223-SD2-932	from US $5.18
12	12 43224-SD2-931 Spring b ADJUSTING	43224-SD2-931	US $9.45
13	13 43227-SF1-003 Spring PAD	43227-SF1-003	US $18.67
14	14 43228-SD2-933 Shaft a	43228-SD2-933	from US $17.91
15	15 43229-SD2-931 Rod	43229-SD2-931	from US $2.52
16	16 43230-SK7-043 Caliper assy	43230-SK7-043	—
17	17 43232-SD2-931 O-ring	43232-SD2-931	from US $1.54
18	18 43233-S04-003 Piston comp SLEEVE	43233-S04-003	US $14.85
19	19 43234-S04-003 Cover DUST	43234-S04-003	from US $2.74
20	20 43235-SD2-931 Pin a	43235-SD2-931	US $9.61
21	21 43236-S04-003 Spacer	43236-S04-003	US $9.59
22	22 43238-SD2-931 Ring RETAINING	43238-SD2-931	from US $3.57
23	23 43241-SD2-931 Guide SPRING	43241-SD2-931	from US $2.87
24	24 43242-SD2-933 Cover SHAFT	43242-SD2-933	from US $3.08
25	25 43243-SD2-931 Nut PARKING	43243-SD2-931	from US $3.34
26	26 43244-SD2-931 Retainer	43244-SD2-931	US $4.22
27	27 43245-SH3-931 Lever R.	43245-SH3-931	US $7.56
28	28 43246-SD2-931 Spring	43246-SD2-931	—
29	29 43247-SH3-931 Arm R.	43247-SH3-931	US $12.04
30	30 43248-SD2-933 Shaft b	43248-SD2-933	US $36.74
31	31 43249-S04-003 Bolt ADJUSTER	43249-S04-003	from US $6.02
32	32 43253-SK7-020 Guard	43253-SK7-020	—
33	33 43254-SK7-020 Guard	43254-SK7-020	—
34	34 43255-SH3-933 Protector	43255-SH3-933	—
35	35 43256-SH3-933 Protector	43256-SH3-933	—
36	36 43262-S04-003 Pin b	43262-S04-003	US $8.96
37	37 43265-SH3-931 Lever L.	43265-SH3-931	US $7.56
38	38 43266-SD2-931 Spring	43266-SD2-931	—
39	39 43267-SH3-931 Arm L.	43267-SH3-931	US $12.04
40	40 43352-SM4-003 Screw BLEEDER	43352-SM4-003	US $3.71
41	41 43353-SD5-003 Cap BLEEDER SCREW	43353-SD5-003	from US $2.12
42	42 45209-166-006 Seal PISTON	45209-166-006	from US $4.07
43	43 45240-SC2-003 Bolt FLANGE, 8X22	45240-SC2-003	from US $3.03
44	44 90113-SA0-025 Bolt WHEEL (NAGOYA RASHI)	90113-SA0-025	from US $2.93
	replacement
44	44 90113-SM1-005 Bolt WHEEL (ROCKNEL FASTENER)	90113-SM1-005	from US $3.70
44	44 90113-SA0-023 Bolt WHEEL (TOKAI TRW)	90113-SA0-023	US $2.96
	replacement
44	44 90113-SM1-005 Bolt WHEEL (ROCKNEL FASTENER)	90113-SM1-005	from US $3.70
45	45 90305-692-010 Nut	90305-692-010	US $6.84
47	47 92201-10028-0H Bolt HEX., 10X28	92201-10028-0H	from US $0.74
48	48 93600-060-140-H Screw FLAT, 6X14	93600-060-140-H	from US $0.44
49	49 94111-10800 Washer SPRING, 10MM	94111-10800	from US $0.44
50	50 95801-060-120-8 Bolt FLANGE, 6X12	95801-060-120-8	from US $0.52
	replacement
50	50 95701-060-120-8 Bolt FLANGE, 6X12	95701-060-120-8	from US $0.52
51	51 43225-SF1-003 Shim	43225-SF1-003	—
52	52 43227-SD2-305 Shim	43227-SD2-305	—

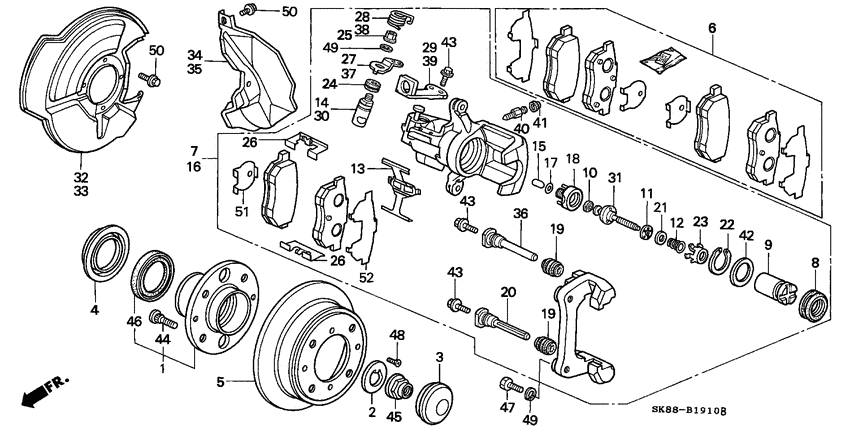

Rear brake (DISK) Diagram Honda INTEGRA General 7072555-550294

Rear brake (DISK) Diagram Honda INTEGRA General 7072555-550294
