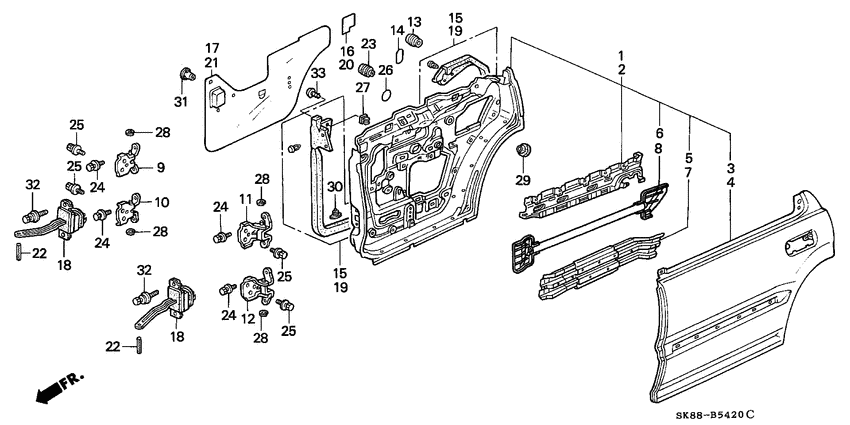

Rear door panels Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67510-SK8-030ZZ
Panel comp
|
67510-SK8-030ZZ |
— | ||
|
2
|
2
67550-SK8-030ZZ
Panel comp
|
67550-SK8-030ZZ |
— | ||
|
3
|
3
67611-SK8-320ZZ
Skin
|
67611-SK8-320ZZ |
— | ||
|
4
|
4
67651-SK8-320ZZ
Skin
|
67651-SK8-320ZZ |
— | ||
|
6
|
6
67731-SK8-A01ZZ
Beam
|
67731-SK8-A01ZZ |
— | ||
|
8
|
8
67771-SK8-A01ZZ
Beam
|
67771-SK8-A01ZZ |
— | ||
|
9
|
9
67910-SK8-003ZZ
Hinge
|
67910-SK8-003ZZ |
— | ||
|
10
|
10
67920-SK8-003ZZ
Hinge
|
67920-SK8-003ZZ |
— | ||
|
11
|
11
67950-SK8-003ZZ
Hinge
|
67950-SK8-003ZZ |
— | ||
|
12
|
12
67960-SK8-003ZZ
Hinge
|
67960-SK8-003ZZ |
— | ||
|
13
|
13
72142-SK7-000
Stopper
|
72142-SK7-000 |
— | ||
|
14
|
14
72367-SK8-000 SealOUTER HANDLE HOLE |
72367-SK8-000 |
US $1.12 |
||
|
15
|
15
72810-SK8-013
Weatherstrip
|
72810-SK8-013 |
— | ||
|
16
|
16
72811-SK8-010
Seal
|
72811-SK8-010 |
— | ||
|
17
|
17
72821-SK8-J10
Seal
|
72821-SK8-J10 |
— | ||
|
18
|
18
72840-SK8-003
Checker comp.
|
72840-SK8-003 |
— | ||
|
19
|
19
72850-SK8-013
Weatherstrip
|
72850-SK8-013 |
— | ||
|
20
|
20
72851-SK8-010
Seal
|
72851-SK8-010 |
— | ||
|
21
|
21
72861-SK8-J10
Seal
|
72861-SK8-J10 |
— | ||
|
22
|
22
75760-SB2-003 PinDOOR CHECKER |
75760-SB2-003 |
US $6.07 |
||
|
23
|
23
75891-SA7-000 StopperDOOR |
75891-SA7-000 |
US $1.70 |
||
|
24
|
24
90001-SD2-000 BoltFLANGE, 8X22 |
90001-SD2-000 |
US $2.15 |
||
|
25
|
25
90157-SA0-000 Bolt-washer8X25 |
90157-SA0-000 |
US $2.37 |
||
|
26
|
26
90631-SK8-000ZU
Seal
|
90631-SK8-000ZU |
— | ||
|
26
|
26
90631-SK8-000ZL SealRR. DOOR HOLE *NH538* |
90631-SK8-000ZL |
US $1.54 |
||
|
26
|
26
90631-SK8-000ZX SealRR. DOOR HOLE *YR503M* |
90631-SK8-000ZX |
US $1.61 |
||
|
26
|
26
90631-SK8-000ZP SealRR. DOOR HOLE *B59P* |
90631-SK8-000ZP |
US $1.54 |
||
|
26
|
26
90631-SK8-000ZV SealRR. DOOR HOLE *RP21M* |
90631-SK8-000ZV |
US $1.61 |
||
|
26
|
26
90631-SK8-000ZE
Seal
|
90631-SK8-000ZE |
— | ||
|
27
|
27
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
28
|
28
90755-SB2-000 E-ring6MM |
90755-SB2-000 |
from US $3.11 |
||
|
29
|
29
90852-SA5-000 PlugHOLE, 10MM |
90852-SA5-000 |
US $2.17 |
||
|
30
|
30
91530-SH4-003 ClipDOOR WEATHERSTRIP |
91530-SH4-003 |
US $2.10 |
||
|
31
|
31
91558-SH3-003
Cap
|
91558-SH3-003 |
— | ||
|
32
|
32
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
33
|
33
93903-25220 ScrewTAPPING, 5X12 |
93903-25220 |
from US $0.38 |
