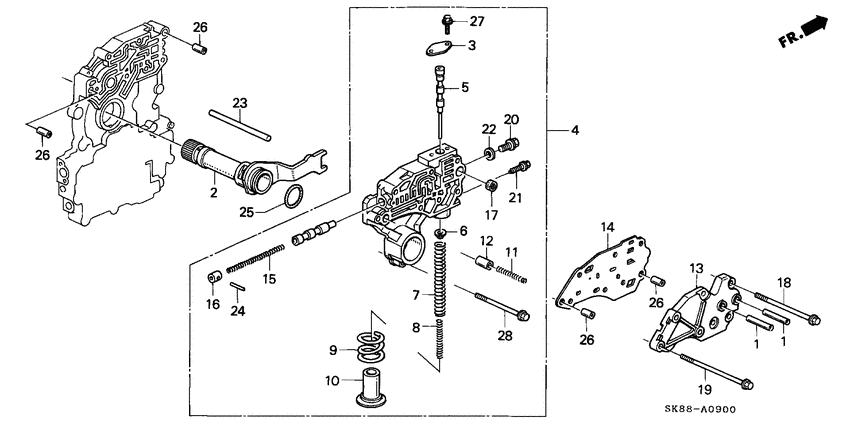

Regulator Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22751-PR0-010 Pipe bTHROTTLE |
22751-PR0-010 |
US $1.96 |
||
|
2
|
2
25155-PR0-000
Shaft assy
|
25155-PR0-000 |
— | ||
|
3
|
3
27122-PR0-000
Cover
|
27122-PR0-000 |
— | ||
|
4
|
4
27200-PR0-900
Regulator assy
|
27200-PR0-900 |
— | ||
|
5
|
5
27221-PR0-000
Valve
|
27221-PR0-000 |
— | ||
|
6
|
6
27222-PR0-000 SeatREGULATOR SPRING |
27222-PR0-000 |
US $2.31 |
||
|
7
|
7
27231-PR0-900
Spring a
|
27231-PR0-900 |
— | ||
|
8
|
8
27232-PA9-000
Spring b
|
27232-PA9-000 |
— | ||
|
9
|
9
27233-PA9-000
Spring
|
27233-PA9-000 |
— | ||
|
10
|
10
27246-PN6-800 CapREGULATOR SPRING |
27246-PN6-800 |
US $16 |
||
|
11
|
11
27255-PC9-710
Spring
|
27255-PC9-710 |
— | ||
|
12
|
12
27256-639-000
Valve
|
27256-639-000 |
— | ||
|
13
|
13
27611-PR0-000
Cover
|
27611-PR0-000 |
— | ||
|
14
|
14
27612-PR0-010
Plate
|
27612-PR0-010 |
— | ||
|
15
|
15
27627-PR0-000
Spring
|
27627-PR0-000 |
— | ||
|
16
|
16
27628-PK4-000 CapLOCK UP TIMING |
27628-PK4-000 |
US $3.08 |
||
|
17
|
17
27750-PL5-J01 FilterSECONDARY BODY |
27750-PL5-J01 |
US $5.91 |
||
|
18
|
18
90004-PR0-000 BoltFLANGE, 6X77 |
90004-PR0-000 |
from US $2.03 |
||
|
19
|
19
95701-060-850-8 BoltFLANGE, 6X85 |
95701-060-850-8 |
from US $0.89 |
||
|
20
|
20
90024-612-000 BoltSEALING, 8MM |
90024-612-000 |
from US $1.78 |
||
|
21
|
21
90089-PK4-000 BoltSTOPPER, 6MM |
90089-PK4-000 |
US $1.54 |
||
|
22
|
22
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.92 |
||
|
23
|
23
90701-PK4-000 Dowel pin8X80 |
90701-PK4-000 |
US $2.24 |
||
|
24
|
24
91101-PF4-003 Roller3.5X21.8 |
91101-PF4-003 |
from US $1.19 |
||
|
25
|
25
91316-PF4-003 O-ring31X1.7 (ARAI) |
91316-PF4-003 |
from US $2.37 |
||
|
26
|
26
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
27
|
27
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
28
|
28
95701-060-600-8 BoltFLANGE, 6X60 |
95701-060-600-8 |
from US $0.74 |
