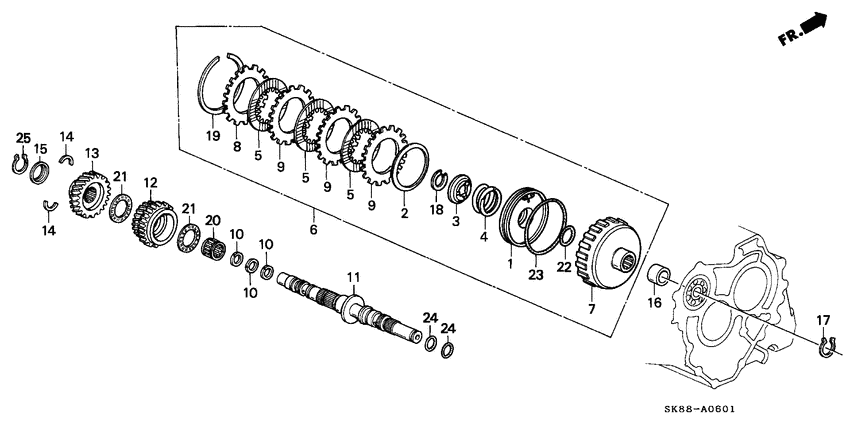

Secondary shaft Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22520-PF4-010 Piston compLOW CLUTCH |
22520-PF4-010 |
US $59.78 |
||
|
2
|
2
22537-PG4-013
Spring
|
22537-PG4-013 |
— | ||
|
3
|
3
22542-PA9-000 SeatCLUTCH SPRING |
22542-PA9-000 |
from US $2.80 |
||
|
4
|
4
22542-PF4-013
Spring
|
22542-PF4-013 |
— | ||
|
5
|
5
22545-PR0-850 DiskCLUTCH |
22545-PR0-850 |
US $22.91 |
||
|
6
|
6
22600-PR0-851
Clutch assy.
|
22600-PR0-851 |
— | ||
|
7
|
7
22611-PR0-851
Guide comp
|
22611-PR0-851 |
— | ||
|
8
|
8
22639-PR9-003 PlateCLUTCH END (9) (2.9MM) |
22639-PR9-003 |
US $18.69 |
||
|
8
|
8
22634-PR9-003 PlateCLUTCH END (4) (2.4MM) |
22634-PR9-003 |
US $18.69 |
||
|
8
|
8
22636-PR9-003 PlateCLUTCH END (6) (2.6MM) |
22636-PR9-003 |
US $18.69 |
||
|
8
|
8
22631-PR9-003 PlateCLUTCH END (1) (2.1MM) |
22631-PR9-003 |
US $18.69 |
||
|
8
|
8
22638-PR9-003 PlateCLUTCH END (8) (2.8MM) |
22638-PR9-003 |
US $18.69 |
||
|
8
|
8
22633-PR9-003 PlateCLUTCH END (3) (2.3MM) |
22633-PR9-003 |
US $18.69 |
||
|
8
|
8
22635-PR9-003 PlateCLUTCH END (5) (2.5MM) |
22635-PR9-003 |
US $18.69 |
||
|
8
|
8
22637-PR9-003 PlateCLUTCH END (7) (2.7MM) |
22637-PR9-003 |
US $17.02 |
||
|
8
|
8
22632-PR9-003 PlateCLUTCH END (2) (2.2MM) |
22632-PR9-003 |
US $18.69 |
||
|
9
|
9
22643-PR0-003 Plate aSECOND CLUTCH |
22643-PR0-003 |
US $7.84 |
||
|
10
|
10
22814-PR0-003
Ring
|
22814-PR0-003 |
— | ||
|
11
|
11
23230-PR0-850
Shaft comp.
|
23230-PR0-850 |
— | ||
|
12
|
12
23431-PR0-A00
Gear
|
23431-PR0-A00 |
— | ||
|
13
|
13
23445-PR0-A00
Gear
|
23445-PR0-A00 |
— | ||
|
14
|
14
90429-PR0-010 Cotter b26MM (2.05) |
90429-PR0-010 |
US $3.15 |
||
|
14
|
14
90431-PR0-020 Cotter d26MM (2.15) |
90431-PR0-020 |
US $3.15 |
||
|
14
|
14
90428-PR0-000 Cotter a26MM (2.00) |
90428-PR0-000 |
US $3.15 |
||
|
14
|
14
90430-PR0-010 Cotter c26MM (2.10) |
90430-PR0-010 |
US $3.15 |
||
|
15
|
15
90432-PR0-000 RetainerCOTTER |
90432-PR0-000 |
US $1.96 |
||
|
16
|
16
90519-PR0-850 CollarDISTANCE, 25MM (29.15) |
90519-PR0-850 |
US $10.08 |
||
|
16
|
16
90514-PR0-850 CollarDISTANCE, 25MM (28.9) |
90514-PR0-850 |
US $10.08 |
||
|
16
|
16
90521-PR0-850 CollarDISTANCE, 25MM (29.25) |
90521-PR0-850 |
US $10.08 |
||
|
16
|
16
90516-PR0-850 CollarDISTANCE, 25MM (29.0) |
90516-PR0-850 |
US $10.08 |
||
|
16
|
16
90518-PR0-850 CollarDISTANCE, 25MM (29.1) |
90518-PR0-850 |
US $10.08 |
||
|
16
|
16
90513-PR0-850 CollarDISTANCE, 25MM (28.85) |
90513-PR0-850 |
US $10.08 |
||
|
16
|
16
90520-PR0-850 CollarDISTANCE, 25MM (29.2) |
90520-PR0-850 |
US $10.08 |
||
|
16
|
16
90515-PR0-850 CollarDISTANCE, 25MM (28.95) |
90515-PR0-850 |
US $10.08 |
||
|
16
|
16
90522-PR0-850 CollarDISTANCE, 25MM (29.3) |
90522-PR0-850 |
US $10.08 |
||
|
16
|
16
90517-PR0-850 CollarDISTANCE, 25MM (29.05) |
90517-PR0-850 |
US $10.08 |
||
|
17
|
17
90601-PR0-000
Set ring
|
90601-PR0-000 |
— | ||
|
18
|
18
90603-PA9-000 CirclipEXTERNAL, 40MM |
90603-PA9-000 |
from US $3.11 |
||
|
19
|
19
90605-PF4-000 RingSNAP, 125MM |
90605-PF4-000 |
US $7 |
||
|
20
|
20
91028-PF4-A01
Bearing
|
91028-PF4-A01 |
— | ||
|
21
|
21
91031-PG4-003 BearingTHRUST NEEDLE, 39X54X2.5 |
91031-PG4-003 |
US $6.58 |
||
|
22
|
22
91302-PA9-004 O-ring39.8X2.2 (NOK) |
91302-PA9-004 |
US $4.51 |
||
| replacement | |||||
|
22
|
22
91302-PA9-003 O-ring39.8X2.2 (ARAI) |
91302-PA9-003 |
from US $2.96 |
||
|
22
|
22
91302-PA9-003 O-ring39.8X2.2 (ARAI) |
91302-PA9-003 |
from US $2.96 |
||
|
23
|
23
91303-PF4-004 O-ring110X2.2 (NOK) |
91303-PF4-004 |
US $4 |
||
|
24
|
24
91307-PN0-003 O-ring25.5X1.9(NOK) |
91307-PN0-003 |
US $1.72 |
||
|
24
|
24
91307-PN0-004 O-ring25.5X1.9 (ARAI) |
91307-PN0-004 |
from US $1.47 |
||
|
25
|
25
94510-30000 CirclipEXTERNAL, 30MM |
94510-30000 |
from US $0.81 |
||
