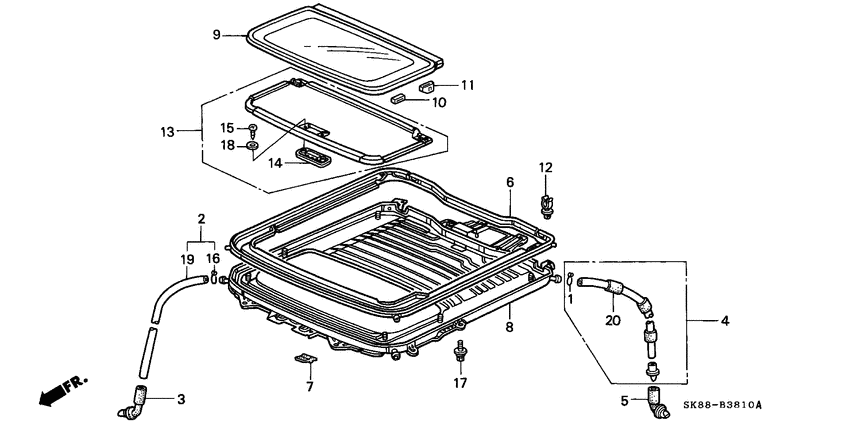

Sliding roof Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17348-673-000 ClipAIR HOSE, 20.5MM |
17348-673-000 |
from US $3.22 |
||
|
2
|
2
70050-SK7-000
Tube
|
70050-SK7-000 |
— | ||
|
3
|
3
70052-SH3-000
Valve
|
70052-SH3-000 |
— | ||
|
4
|
4
70060-SK7-000
Tube
|
70060-SK7-000 |
— | ||
|
5
|
5
70062-SH3-000
Valve
|
70062-SH3-000 |
— | ||
|
6
|
6
70080-SK8-003
Seal
|
70080-SK8-003 |
— | ||
|
7
|
7
70092-SK7-000
Rubber
|
70092-SK7-000 |
— | ||
|
8
|
8
70100-SK8-003
Frame comp
|
70100-SK8-003 |
— | ||
|
9
|
9
70200-SK8-010 Glass assyROOF (SUNROOF) |
70200-SK8-010 |
US $560.64 |
||
|
10
|
10
70332-SK7-010
Slide
|
70332-SK7-010 |
— | ||
|
11
|
11
70369-SK7-000
Slider
|
70369-SK7-000 |
— | ||
|
12
|
12
70441-SK7-003
Clip
|
70441-SK7-003 |
— | ||
|
13
|
13
83210-SK8-A00ZA
Sunshade assy. *nh180l*
|
83210-SK8-A00ZA |
— | ||
|
13
|
13
83210-SK8-A00ZB
Sunshade assy. *b46l*
|
83210-SK8-A00ZB |
— | ||
|
14
|
14
83212-SF4-000ZA
Handle
|
83212-SF4-000ZA |
— | ||
|
14
|
14
83212-SF4-000ZD
Handle
|
83212-SF4-000ZD |
— | ||
|
15
|
15
90130-693-000 ScrewTAPPING, 4X10 |
90130-693-000 |
from US $2.10 |
||
|
16
|
16
90646-657-000 ClipAIR HOSE, 16MM |
90646-657-000 |
from US $2.89 |
||
|
17
|
17
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
18
|
18
94103-05700 WasherPLAIN, 5MM |
94103-05700 |
from US $0.37 |
||
|
19
|
19
95003-331-211-0 TubeVINYL, 10X14X1210 (95003-33003-10M) |
95003-331-211-0 |
US $4.88 |
||
|
20
|
20
95003-451-281-0 TubeVINYL, 14X18X1280 (95003-45003-10M) |
95003-451-281-0 |
US $6.36 |
