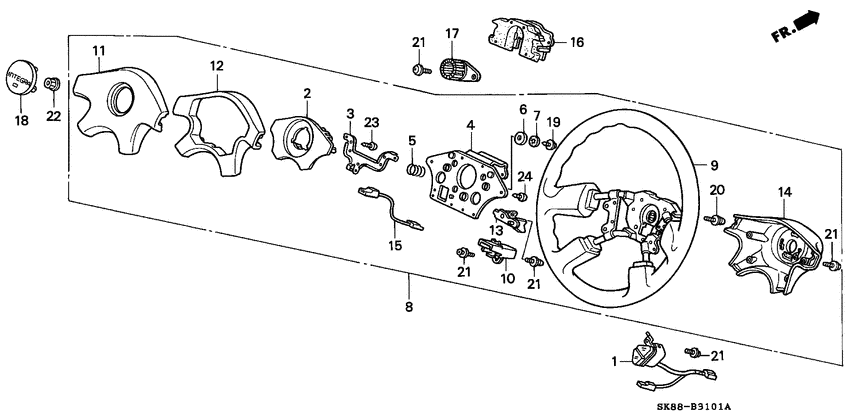

Steering wheel ('92-) Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36770-SK8-A01
Switch assy
|
36770-SK8-A01 |
— | ||
|
2
|
2
78501-SK8-003
Base
|
78501-SK8-003 |
— | ||
|
3
|
3
78502-SK8-003
Plate
|
78502-SK8-003 |
— | ||
|
4
|
4
78503-SK8-003
Plate
|
78503-SK8-003 |
— | ||
|
5
|
5
78504-SK8-003
Spring
|
78504-SK8-003 |
— | ||
|
6
|
6
78505-SK8-003
Washer a
|
78505-SK8-003 |
— | ||
|
7
|
7
78506-SK8-003
Washer b
|
78506-SK8-003 |
— | ||
|
8
|
8
78510-SK8-922ZA
Wheel comp.
|
78510-SK8-922ZA |
— | ||
|
9
|
9
78511-SK8-013ZA
Grip *nh1l*
|
78511-SK8-013ZA |
— | ||
|
10
|
10
78512-SK8-003
Guard
|
78512-SK8-003 |
— | ||
|
11
|
11
78513-SK8-003ZA
Cover
|
78513-SK8-003ZA |
— | ||
|
12
|
12
78514-SK8-003
Foundation
|
78514-SK8-003 |
— | ||
|
13
|
13
78515-SK8-003
Guard
|
78515-SK8-003 |
— | ||
|
14
|
14
78516-SK8-A01ZA
Cover
|
78516-SK8-A01ZA |
— | ||
|
16
|
16
78520-SK8-003
Damper
|
78520-SK8-003 |
— | ||
|
18
|
18
78531-SK8-003ZA
Emblem comp.
|
78531-SK8-003ZA |
— | ||
|
19
|
19
90136-SF1-A01
Screw
|
90136-SF1-A01 |
— | ||
|
20
|
20
90170-SK7-003
Screw-washer
|
90170-SK7-003 |
— | ||
|
21
|
21
90171-SK7-003 Screw-washer4X10 |
90171-SK7-003 |
US $2.10 |
||
|
22
|
22
90380-SB2-003 NutSELF-LOCK (OHASHI) |
90380-SB2-003 |
from US $2.28 |
||
|
23
|
23
93911-24120 ScrewTAPPING, 4X10 (PO) |
93911-24120 |
from US $0.37 |
||
|
24
|
24
93911-24220 ScrewTAPPING, 4X12 (PO) |
93911-24220 |
US $0.37 |
