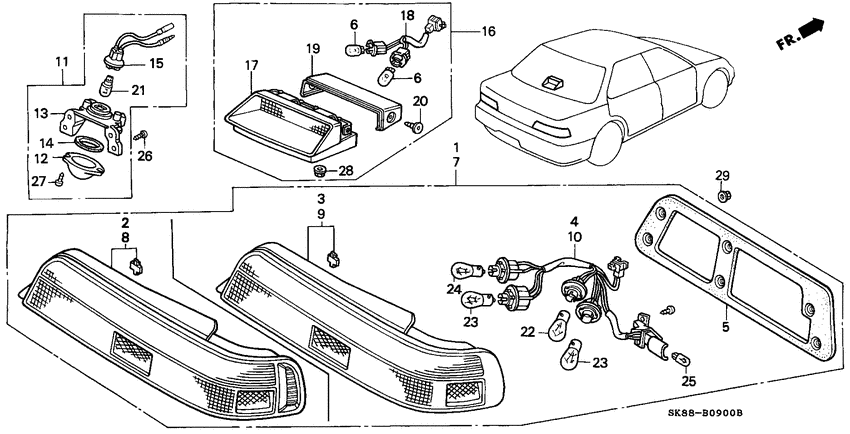

Taillight Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33500-SK8-A02
Taillight assy.
|
33500-SK8-A02 |
— | ||
|
3
|
3
33501-SK8-A02
Housing
|
33501-SK8-A02 |
— | ||
|
4
|
4
33502-SK8-A02
Cord comp
|
33502-SK8-A02 |
— | ||
|
5
|
5
33503-SK8-A02
Packing
|
33503-SK8-A02 |
— | ||
|
6
|
6
33506-SJ6-004 Bulb12V 18W) (KOITO |
33506-SJ6-004 |
US $2.10 |
||
|
7
|
7
33550-SK8-A02
Taillight assy.
|
33550-SK8-A02 |
— | ||
|
9
|
9
33551-SK8-A02
Housing
|
33551-SK8-A02 |
— | ||
|
10
|
10
33552-SK8-A02
Cord comp
|
33552-SK8-A02 |
— | ||
|
11
|
11
34100-SH3-A01
Light assy
|
34100-SH3-A01 |
— | ||
|
12
|
12
34101-SH3-A01 Lens |
34101-SH3-A01 |
US $9.92 |
||
|
13
|
13
34102-SH3-A01 Housing |
34102-SH3-A01 |
US $12.73 |
||
|
14
|
14
34103-SH3-A01 Packing |
34103-SH3-A01 |
US $3.40 |
||
|
15
|
15
34104-SH3-A01
Socket & cord comp.
|
34104-SH3-A01 |
— | ||
|
16
|
16
34270-SK8-A02ZE
Light assy
|
34270-SK8-A02ZE |
— | ||
|
17
|
17
34271-SK8-A02ZA
Housing a *nh1l*
|
34271-SK8-A02ZA |
— | ||
|
18
|
18
34272-SK8-A01
Socket
|
34272-SK8-A01 |
— | ||
|
19
|
19
34273-SK8-A02ZA
Cover *nh1l*
|
34273-SK8-A02ZA |
— | ||
|
20
|
20
34274-SK8-A01
Nut
|
34274-SK8-A01 |
— | ||
|
21
|
21
34901-SE3-003 Bulb12V 8W |
34901-SE3-003 |
US $2.10 |
||
|
22
|
22
34903-SB6-671 Bulb12V 32CP |
34903-SB6-671 |
US $4.69 |
||
|
23
|
23
34906-SB6-671 Bulb12V 27/8W |
34906-SB6-671 |
US $2.94 |
||
|
24
|
24
34903-SB6-671 Bulb12V 32CP |
34903-SB6-671 |
US $4.69 |
||
|
25
|
25
34908-SB6-671 Bulb12V 3CP) (KOITO |
34908-SB6-671 |
US $1.75 |
||
|
26
|
26
90102-SA7-003 ScrewTAPPING, 5X16 |
90102-SA7-003 |
US $2.21 |
||
|
27
|
27
93901-34320 ScrewTAPPING, 4X12 |
93901-34320 |
from US $0.37 |
||
|
28
|
28
94050-05000 NutFLANGE, 5MM |
94050-05000 |
from US $0.29 |
||
|
29
|
29
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
