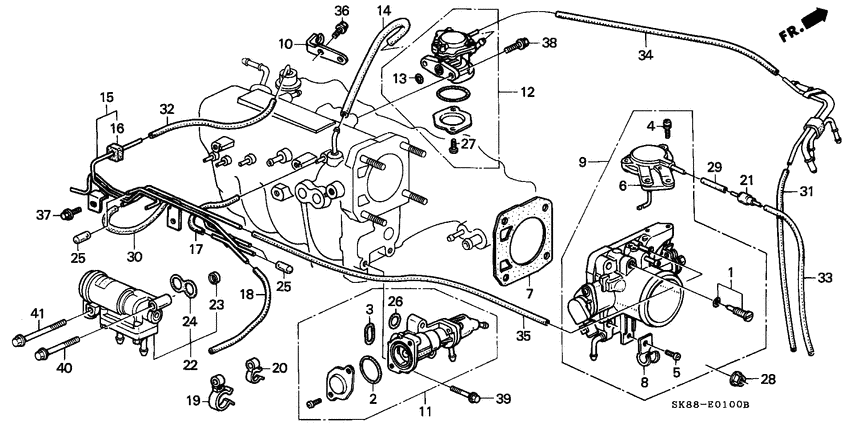

Throttle body Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16016-PM6-005 Screw set |
16016-PM6-005 |
from US $7.62 |
||
|
2
|
2
16075-PE2-005 O-ring31.2X1.9 |
16075-PE2-005 |
US $4.65 |
||
|
3
|
3
16077-PR3-005 O-ring |
16077-PR3-005 |
US $4.23 |
||
|
4
|
4
16080-PW0-G00
Screw-washer
|
16080-PW0-G00 |
— | ||
|
5
|
5
16081-PW0-G00
Screw
|
16081-PW0-G00 |
— | ||
|
6
|
6
16111-PW0-G00
Diaphragm assy.
|
16111-PW0-G00 |
— | ||
|
7
|
7
16176-PR4-004
Gasket
|
16176-PR4-004 |
— | ||
|
8
|
8
16179-PW0-G00
Binder
|
16179-PW0-G00 |
— | ||
|
9
|
9
16400-PR4-A52
Throttle Body Assy
|
16400-PR4-A52 |
— | ||
|
10
|
10
16411-PR4-A00
Stay
|
16411-PR4-A00 |
— | ||
|
11
|
11
16500-PR4-A52
Valve assy.
|
16500-PR4-A52 |
— | ||
|
12
|
12
17340-PR3-005
Valve assy.
|
17340-PR3-005 |
— | ||
|
13
|
13
17341-PR3-005
O-ring
|
17341-PR3-005 |
— | ||
|
14
|
14
17344-PR4-A00
Tube
|
17344-PR4-A00 |
— | ||
|
15
|
15
17400-PR4-A51
Pipe
|
17400-PR4-A51 |
— | ||
|
16
|
16
17401-PR3-000
Rubber
|
17401-PR3-000 |
— | ||
|
17
|
17
17414-PR3-900
Tube
|
17414-PR3-900 |
— | ||
|
18
|
18
24361-PR4-000
Tube
|
24361-PR4-000 |
— | ||
|
19
|
19
24368-PR3-013
Clamp
|
24368-PR3-013 |
— | ||
|
20
|
20
36062-PR4-A01
Clamp
|
36062-PR4-A01 |
— | ||
|
21
|
21
36135-PR3-004 ValveDASHPOT CHECK |
36135-PR3-004 |
from US $21.76 |
||
|
22
|
22
36450-P28-A01
Valve assy.
|
36450-P28-A01 |
— | ||
|
23
|
23
36454-PS4-003 Filter compELECTRONIC AIR CONTROL VALVE (TOYO ROKI) |
36454-PS4-003 |
from US $3.33 |
||
|
24
|
24
36455-PT3-A01 Packing, ELECTRONIC AIR CONTROL VALVE (DENSO) |
36455-PT3-A01 |
from US $3.42 |
||
|
25
|
25
90634-PA0-000 CapSEALING |
90634-PA0-000 |
from US $1.86 |
||
|
26
|
26
91304-PE2-005 O-ring15.8X1.9 |
91304-PE2-005 |
US $2.77 |
||
|
27
|
27
93500-050-081-A ScrewPAN, 5X8 |
93500-050-081-A |
from US $0.37 |
||
| replacement | |||||
|
27
|
27
93500-050-080-A ScrewPAN, 5X8 |
93500-050-080-A |
from US $0.37 |
||
|
28
|
28
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
29
|
29
95005-350-451-0 Tube3.5X45 (95005-35001-10M) |
95005-350-451-0 |
US $0.89 |
||
|
30
|
30
95005-350-801-A Tube3.5X80 (95005-35001-10M) |
95005-350-801-A |
US $1.18 |
||
|
31
|
31
95005-350-551-0 Tube3.5X55(95005-35001-10M) |
95005-350-551-0 |
US $1.18 |
||
|
32
|
32
95005-351-401-0
Tube
|
95005-351-401-0 |
— | ||
|
33
|
33
95005-351-001-0 Tube3.5X100 (95005-35001-10M) |
95005-351-001-0 |
US $1.18 |
||
| replacement | |||||
|
33
|
33
95005-351-0010S Tube 35x100 |
95005-351-0010S |
US $1.18 |
||
|
34
|
34
95005-351-951-0 Tube3.5X195(95005-35001-10M) |
95005-351-951-0 |
US $2.37 |
||
|
35
|
35
95005-351-901-M Tube3.5X190 (95005-35001-10M) |
95005-351-901-M |
US $2.37 |
||
|
36
|
36
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
37
|
37
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
38
|
38
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
||
|
39
|
39
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
40
|
40
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
|
41
|
41
95701-080-450-8 BoltFLANGE, 8X45 |
95701-080-450-8 |
from US $0.81 |
||
