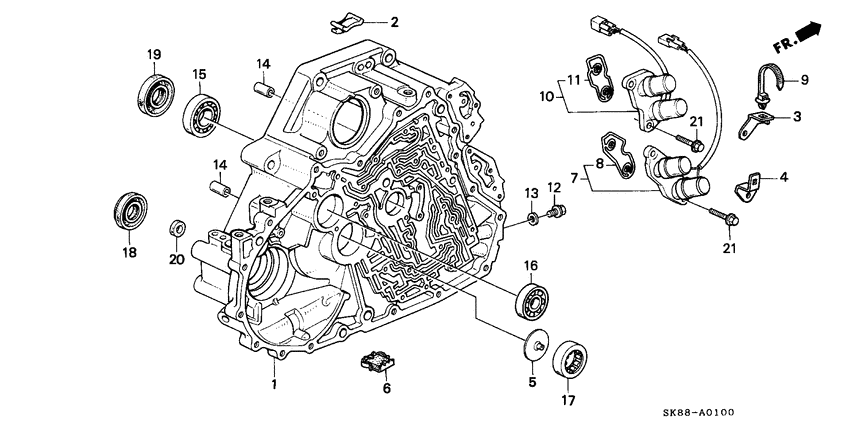

Torque converter housing Diagram Honda INTEGRA
- Year
- 1993
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21111-PR0-030
Case
|
21111-PR0-030 |
— | ||
|
2
|
2
21123-PR0-000
Grommet
|
21123-PR0-000 |
— | ||
|
3
|
3
21233-PR0-000
Stay a
|
21233-PR0-000 |
— | ||
|
4
|
4
21236-PR0-000
Stay b
|
21236-PR0-000 |
— | ||
|
5
|
5
23225-PH0-000 PlateOIL GUIDE |
23225-PH0-000 |
US $3.57 |
||
|
6
|
6
25422-PN6-801 Magnet comp.TRANSMISSION |
25422-PN6-801 |
US $7 |
||
|
7
|
7
28200-PR0-010
Solenoid assy.
|
28200-PR0-010 |
— | ||
|
8
|
8
28220-PR0-010
Filter assy
|
28220-PR0-010 |
— | ||
|
9
|
9
28291-PR0-003
Band
|
28291-PR0-003 |
— | ||
|
10
|
10
28300-PR0-010
Solenoid assy.
|
28300-PR0-010 |
— | ||
|
11
|
11
28320-PR0-010
Filter assy
|
28320-PR0-010 |
— | ||
|
12
|
12
90024-612-000 BoltSEALING, 8MM |
90024-612-000 |
from US $1.78 |
||
|
13
|
13
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.92 |
||
|
14
|
14
90705-PF4-000 Dowel pin14X20 |
90705-PF4-000 |
US $2.24 |
||
|
15
|
15
91001-591-004
Bearing
|
91001-591-004 |
— | ||
| replacement | |||||
|
15
|
15
91001-PX4-004 BearingBALL, 40X68X9 (KOYO) |
91001-PX4-004 |
US $14.50 |
||
|
16
|
16
91004-PA9-003 BearingBALL, 6305 (NTN) |
91004-PA9-003 |
US $51.80 |
||
|
17
|
17
91101-PL4-003 BearingNEEDLE, 36X62X18 (NTN) |
91101-PL4-003 |
US $17.28 |
||
|
18
|
18
91205-PL3-B02 Oil seal40X56X8(NOK) |
91205-PL3-B02 |
US $10.08 |
||
|
18
|
18
91205-PL3-B01 Oil seal40X56X8(ARAI) |
91205-PL3-B01 |
from US $5.17 |
||
|
19
|
19
91207-PR0-003 Oil seal44X68X8 (NOK) |
91207-PR0-003 |
US $16.38 |
||
|
20
|
20
91209-612-000
Oil seal
|
91209-612-000 |
— | ||
| replacement | |||||
|
20
|
20
91209-612-003 Oil seal12X22X7 (ARAI) |
91209-612-003 |
from US $5.03 |
||
|
21
|
21
95801-060-450-8 BoltFLANGE, 6X45 |
95801-060-450-8 |
from US $0.74 |
||
