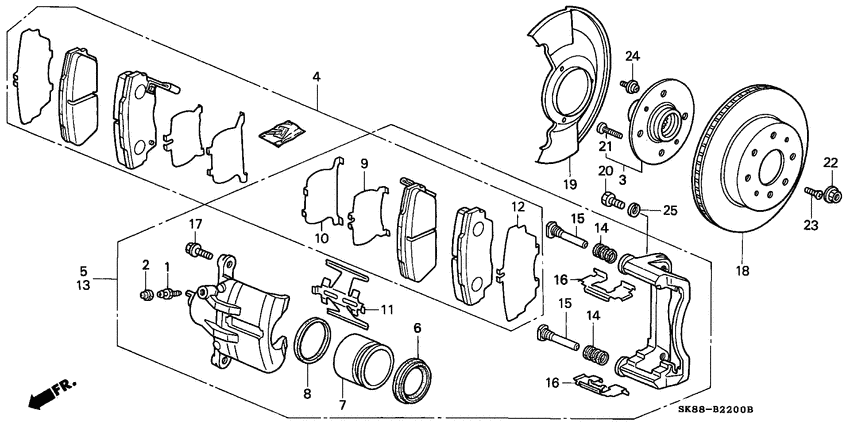

Front brake (1) Diagram Honda INTEGRA
- Year
- 1991
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43352-692-003 ScrewBLEEDER |
43352-692-003 |
US $5.32 |
||
|
2
|
2
43353-SA0-003
Cap
|
43353-SA0-003 |
— | ||
| replacement | |||||
|
2
|
2
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.29 |
||
|
3
|
3
44600-SK7-000
Hub assy
|
44600-SK7-000 |
— | ||
|
4
|
4
45022-SK7-506 Pad setFR. |
45022-SK7-506 |
US $131.84 |
||
|
5
|
5
45210-SK7-003
Caliper assy
|
45210-SK7-003 |
— | ||
|
6
|
6
45214-SD4-003
Boot
|
45214-SD4-003 |
— | ||
| replacement | |||||
|
6
|
6
45214-SM4-003 BootPISTON |
45214-SM4-003 |
US $10.74 |
||
|
7
|
7
45216-SG0-003
Piston
|
45216-SG0-003 |
— | ||
|
8
|
8
45217-SD4-003 SealPISTON |
45217-SD4-003 |
US $14.16 |
||
|
9
|
9
45225-SD4-003
Shim a
|
45225-SD4-003 |
— | ||
|
10
|
10
45226-SD4-013
Shim b
|
45226-SD4-013 |
— | ||
|
11
|
11
45227-SG0-013
Spring
|
45227-SG0-013 |
— | ||
|
12
|
12
45228-SD4-003
Shim
|
45228-SD4-003 |
— | ||
|
13
|
13
45230-SK7-003
Caliper assy
|
45230-SK7-003 |
— | ||
|
14
|
14
45234-SD4-003 BootPIN |
45234-SD4-003 |
US $5.88 |
||
|
15
|
15
45235-SD4-023
Pin
|
45235-SD4-023 |
— | ||
|
16
|
16
45237-SD4-003
Retainer
|
45237-SD4-003 |
— | ||
|
17
|
17
45240-SA7-003 BoltFLANGE, 8X22 |
45240-SA7-003 |
from US $6.84 |
||
|
18
|
18
45251-SK7-A00 DiskFR. BRAKE |
45251-SK7-A00 |
US $166.40 |
||
|
19
|
19
45255-SK7-010
Guard
|
45255-SK7-010 |
— | ||
| replacement | |||||
|
19
|
19
45255-SK7-020 GuardFR. BRAKE SPLASH |
45255-SK7-020 |
US $59.09 |
||
|
20
|
20
90107-663-670 BoltCALIPER MOUNTING |
90107-663-670 |
US $3.57 |
||
|
21
|
21
90113-SA0-023
Bolt
|
90113-SA0-023 |
— | ||
| replacement | |||||
|
21
|
21
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
21
|
21
90113-SA0-025 BoltWHEEL (NAGOYA RASHI) |
90113-SA0-025 |
US $4.28 |
||
| replacement | |||||
|
21
|
21
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
22
|
22
90305-692-010 Nut |
90305-692-010 |
US $8.14 |
||
|
23
|
23
93600-060-140-H ScrewFLAT, 6X14 |
93600-060-140-H |
from US $0.49 |
||
|
24
|
24
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
25
|
25
94111-12800 WasherSPRING, 12MM |
94111-12800 |
from US $0.44 |
||
